CareFusion AVEA - Equipment Symbols

AVEA ventilator systems xi
L2786 Rev. M

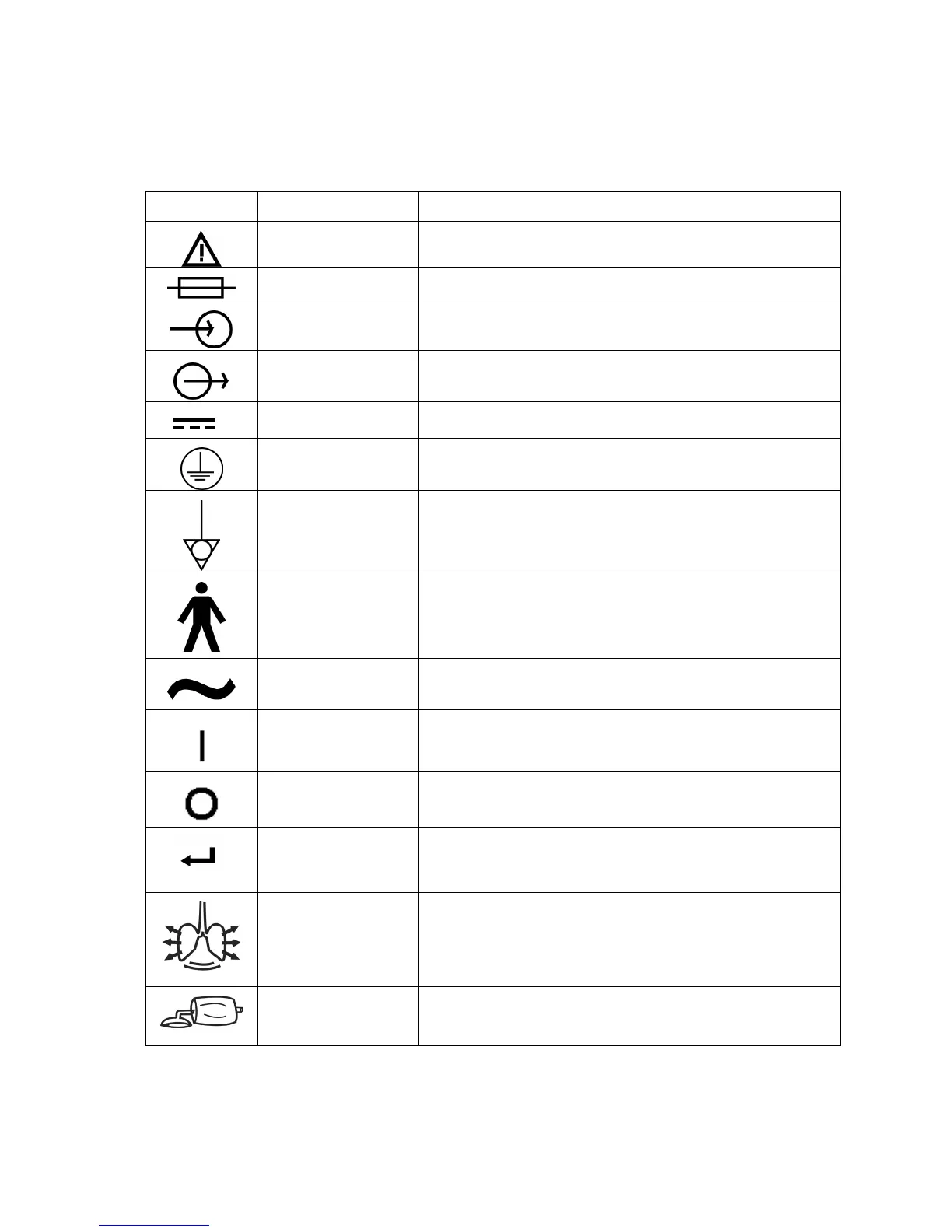

Equipment Symbols
The following symbols may be referenced on the ventilator or in accompanying documentation
Symbol
Source/Compliance
Meaning
Symbol #03-02 IEC 60878 Indicates ATTENTION, consult ACCOMPANYING DOCUMENTS
Symbol #5016 IEC 60417
This symbol indicates a FUSE.
Symbol #5034 IEC 60417
Symbol #01-36 IEC 60878
This symbol indicates INPUT.
Symbol #5035 IEC 60417
Symbol #01-37 IEC 60878
This symbol indicates OUTPUT
Symbol #5031 IEC 60417
This symbol indicates DIRECT CURRENT (DC)
Symbol #5019 IEC 60417
Symbol #01-20 IEC 60878
This symbol indicates protective EARTH (ground).
Symbol #5021 IEC 60417
Symbol # 01-24 IEC 60878
This symbol indicates the EQUIPOTENTIAL connection used to
connect various parts of the equipment or of a system to the same
potential, not necessarily being the earth (ground) potential (e.g., for
local bonding).
Symbol # 5333 IEC 60417
Symbol #02-03 IEC 60878
This symbol indicates TYPE B equipment, which indicates equipment
that provides a particular degree of protection against electric shock,
particularly with regards to allowable leakage current and reliability of
the protective earth connection.
Symbol #5032 IEC 60417
Symbol #01-14 IEC 30878
This symbol is located on the rating plate. It indicates the equipment is
suitable for alternating current.
Symbol #5007 IEC 60417
Symbol #01-01 IEC 60878
Indicates ON (Power)
Symbol #5008 IEC 60417
Symbol #01-02 IEC 60878
Indicates OFF (Power)
ACCEPT
Symbol #0651 ISO 7000
Horizontal return with line feed. Indicates ACCEPT entered values for
a specific field.
CareFusion Symbol
Indicates PATIENT EFFORT
CareFusion Respiratory
Care symbol
Indicates MANUAL BREATH
