Fuses
The AVEA has the following replaceable fuses associated with internal DC, external DC and AC power sources.
WARNING
Do not remove or replace fuses or perform any maintenance tasks on the ventilator while your patient is
connected. Always perform these tasks “off patient”.
Battery Fuses
The internal and optional external battery fuses are 10A, 250V (5 x 20 mm) fast blow type.
The fuse for the optional external battery is located on the back panel next to the external battery connector and is
replaceable. The fuse for the internal battery is located to the right of the UIM connection. To remove fuses, carefully
unscrew with a flat blade screwdriver and pull out the fuse holder.

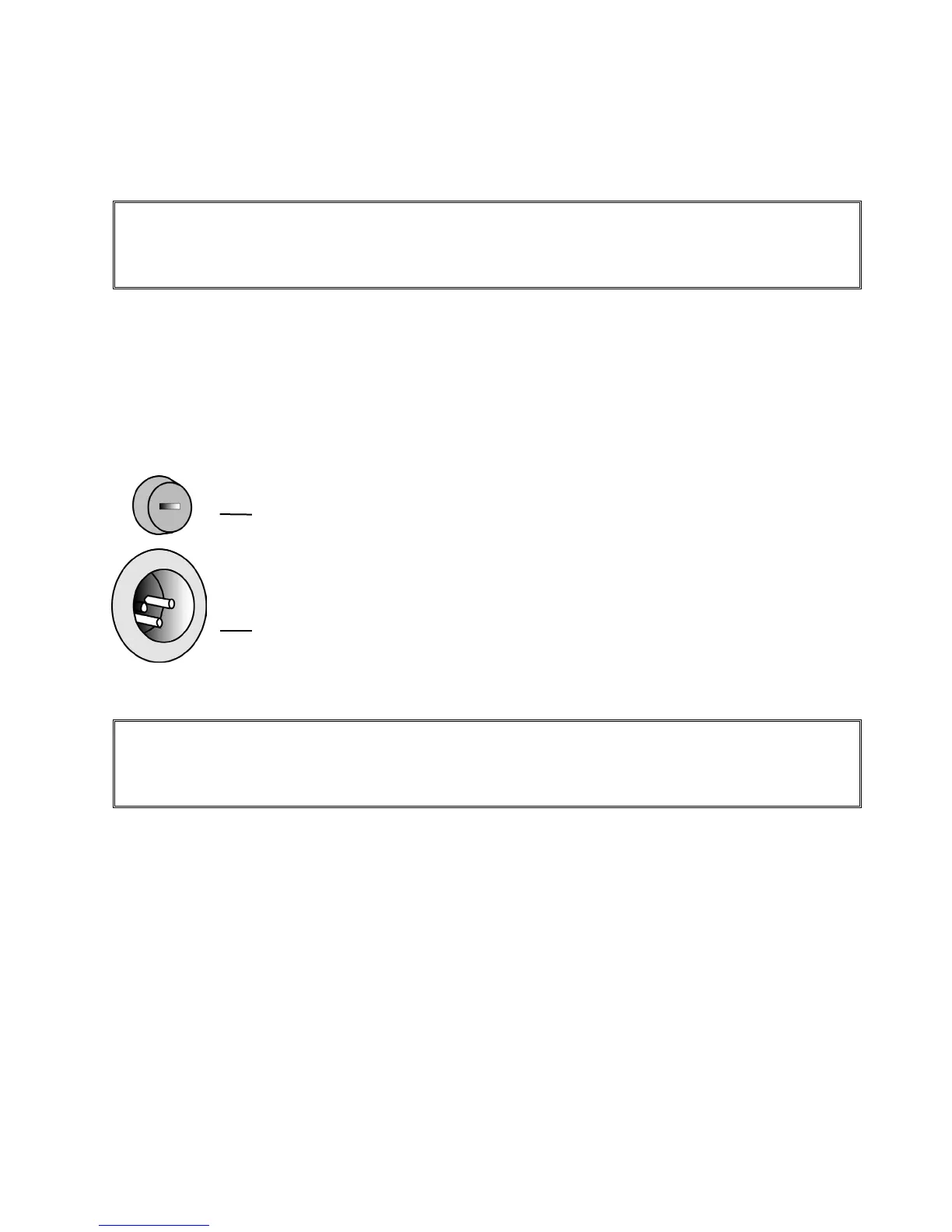

Figure 8–3: External Battery Connector & Fuse
WARNING
To avoid fire hazard, use only the fuse specified in the ventilator’s parts list or one that is identical in type,
voltage rating, and current rating to the existing fuse.
External Battery Connector
External Battery Fuse Holder
