AVEA ventilator systems Chapter 4: Monitors, Displays and Maneuvers 115
L2786 Rev. M
MIP / P
100
Maneuver Screen

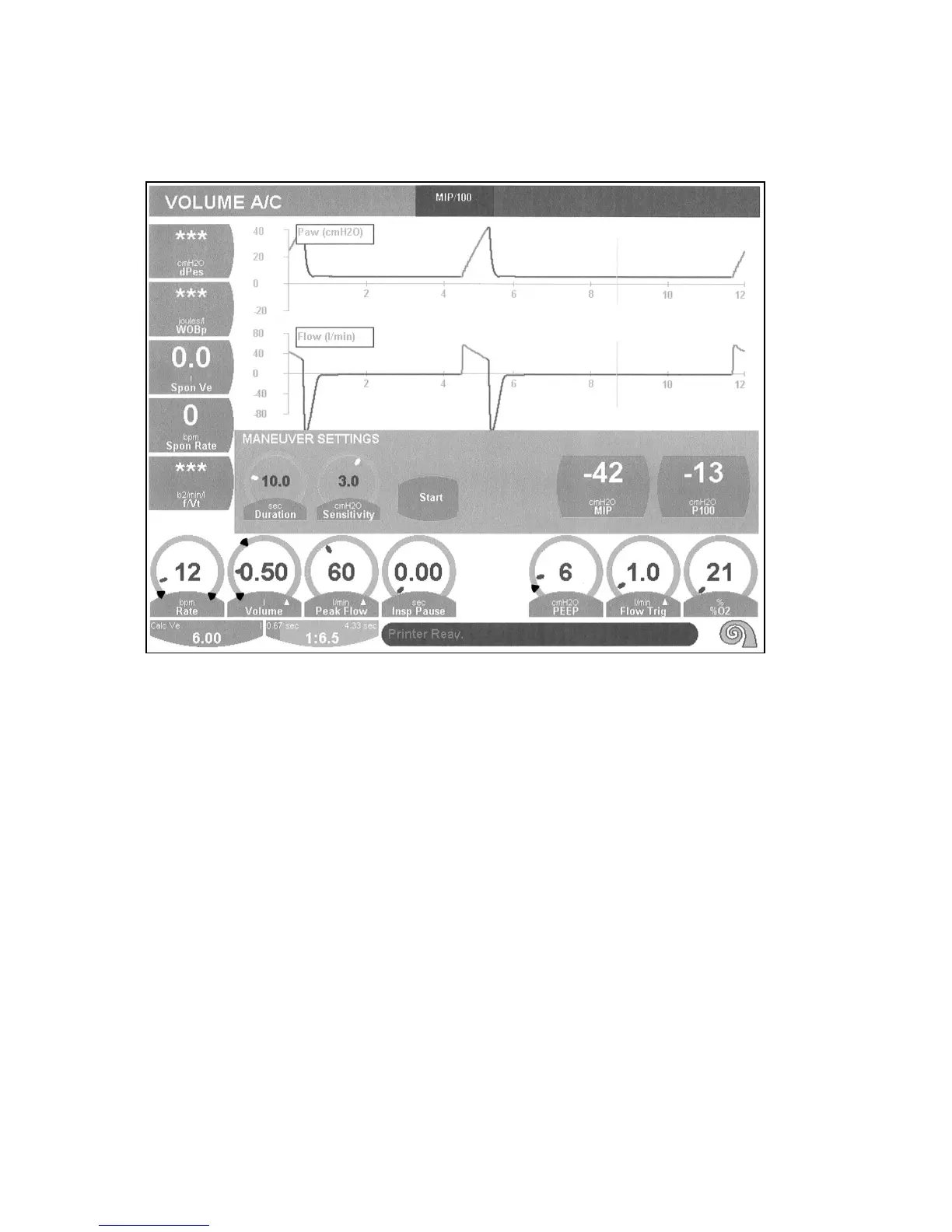

Figure 4–12: MIP Maneuver Settings
The MIP (Maximum Inspiratory Pressure) / P
100
maneuver measures the negative deflection in the pressure tracing
during the patient’s active effort to demand a breath. During the maneuver, the inspiratory flow valve remains
closed and no inspiratory flow is delivered. The MIP is an indication of the maximum negative pressure that the
patient can draw, while P
100
is an indication of the pressure drop that occurs during the first 100 milliseconds of the
breath.
Controls
Duration
The preset Duration shall determine the maximum amount of time that the maneuver will last.
Normal ventilation will be suspended for the duration of the maneuver and will resume after
the duration has timed out.
Range: 5.0 to 30.0 seconds
Default: 10 seconds
