AVEA ventilator systems Chapter 5: Volumetric Capnography 147
L2786 Rev. M

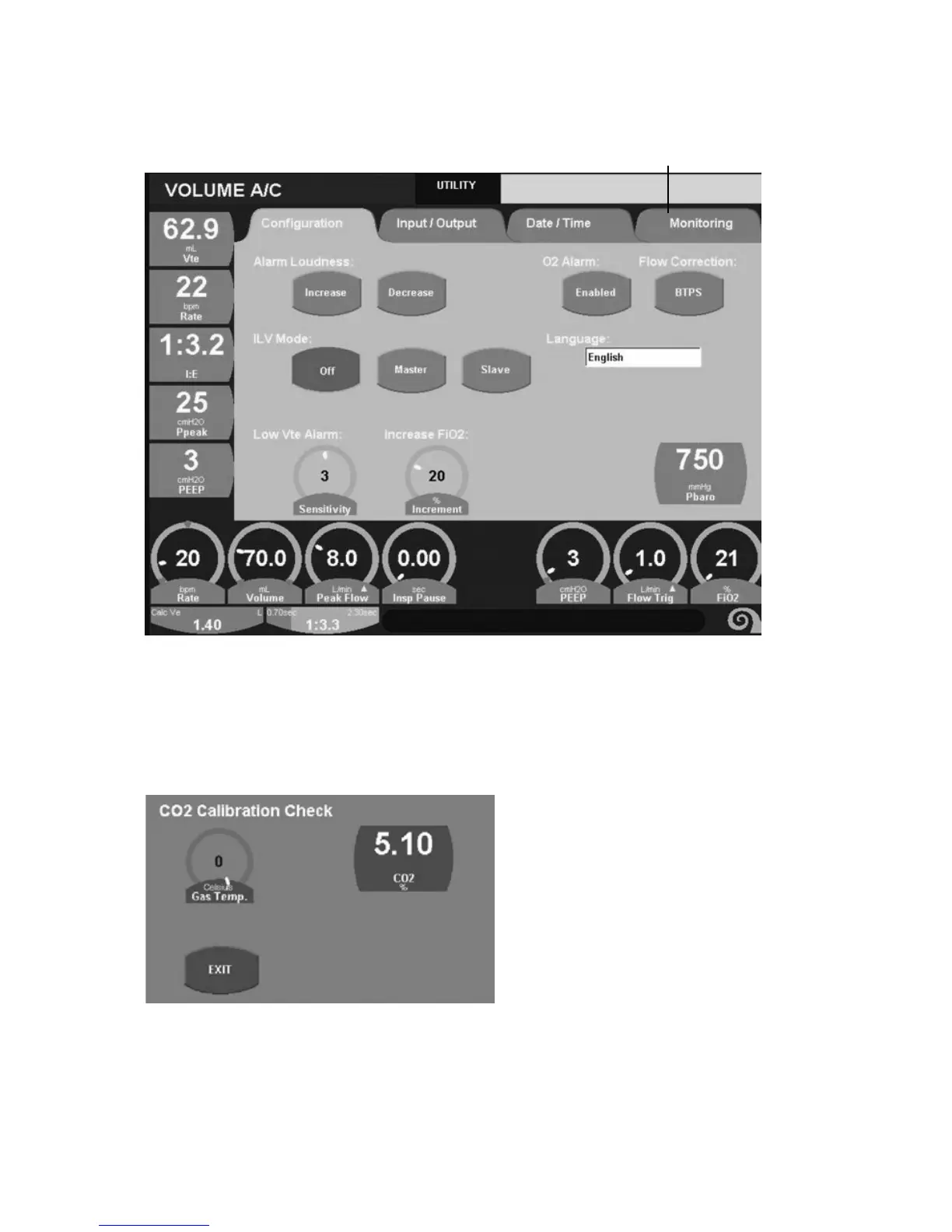

Figure 5–14: Configuration Tab in Utility Screen
4. Follow the procedure “Zeroing the CAPNOSTAT 5” on page 144. Press Continue when the procedure is complete.
5. Press Calibration Check and then Continue.
6. Set the gas temperature setting to that of the calibration gas (typically room temperature).
Figure 5–15: CO
2
Calibration Message
Monitoring tab
