30 Chapter 2: Unpacking and Setup Operator's manual
L2786 Rev. M
ILV connector pin configuration
To connect two AVEA ventilators together for independent lung ventilation function, the cable must be wired so that the
ILV input (the slave) on one AVEA is connected to the ILV output (the master) on the other AVEA. As shown in Figure
2–33 below, the ILV slave is pin 18, and the ILV master is pin 6. In addition, at least one of the analog grounds (pins 5, 9,
10, 11, 12 or 13) must be connected. We recommend using a shielded cable.
For ILV operation:
Connect an analog ground on Vent 1 to analog ground on vent 2 (
• Figure 2–34).
• Connect Pin 6 on Vent 1(Master) to pin 18 on vent 2 (Slave).
• Connect Pin 18 on Vent 1 to pin 6 on vent 2.

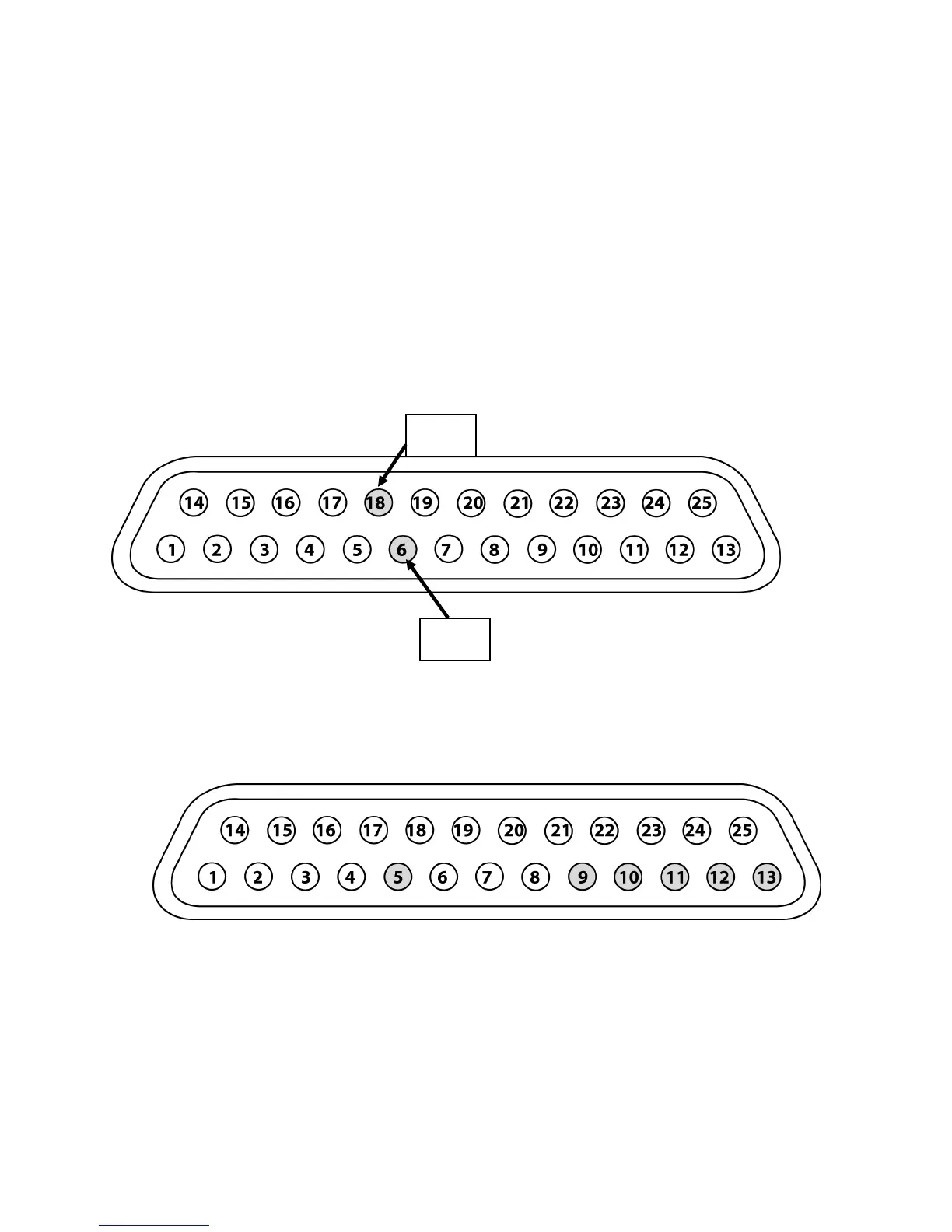

Figure 2–33: ILV Connection Pin Configuration
Figure 2–34: Analog Ground Pins
