26 Chapter 2: Unpacking and Setup Operator's manual
L2786 Rev. M
The “Smart” Heliox Fitting
A DISS-type, No. 1180 smart connector fitting is
also available for use with an 80/20 Heliox gas
mixture (Figure 2–28). Follow the instructions
contained with your Heliox kit to install the
tethered Heliox connector. This fitting has no
integral water trap/filter. All AVEA “Smart”
connectors with or without the integral water
trap/filter, attach in the same way. Align the
connector (Figure 2–27 and Figure 2–28), seat
gently onto the fitting and screw down the fitting
collar until finger tight.

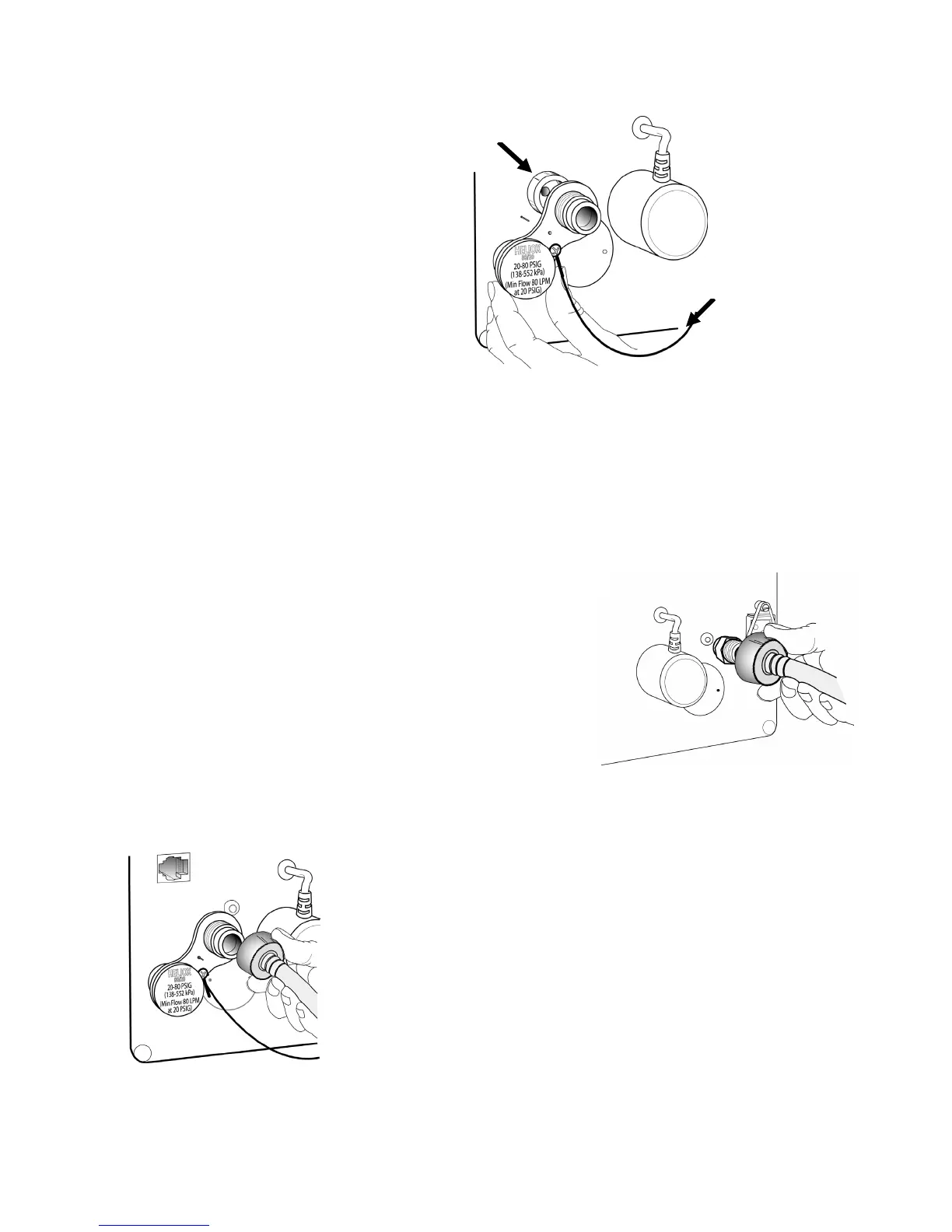

Figure 2–28: Attaching the Tethered Heliox Connector
The AVEA “Smart” connectors signal to the ventilator which type of fitting is attached and therefore which gas controls to
initiate.
The fitting on the right of the panel is for attaching the Oxygen gas source. The O
2
fitting type is CGA DISS type, No.
1240. (NIST or Air Liquide oxygen fittings are also available from CareFusion.)
Attaching the Gas Hoses
Oxygen Connection
Attach the Oxygen hose to the fitting on the right of the back panel
(Figure 2–29).
Figure 2–29: Connecting the O2 Hose
Heliox Connection
If you have the upgrade for Heliox delivery, attach the Heliox hose .to the tethered
“Smart” connector fitting on the left of the back panel as shown in Figure 2–30.
The air hose will not attach to the fitting designed for Heliox and vice versa.
Figure 2–30: Connecting the Heliox Hose
