AVEA ventilator systems Chapter 2: Unpacking and Setup 9
L2786 Rev. M
External battery option
If you have purchased the optional external battery pack, reference AVEA Service Manual, Installation Instructions.
Install your external batteries per the installation instructions enclosed with the cart accessories kit (P/N 11372).
Setting Up the Front of the Ventilator
Assembling the Exhalation Filter and Water Trap
To assemble and insert the exhalation filter and water trap do the following:
Screw the supplied water collection bottle
into the threaded cuff of the water trap.

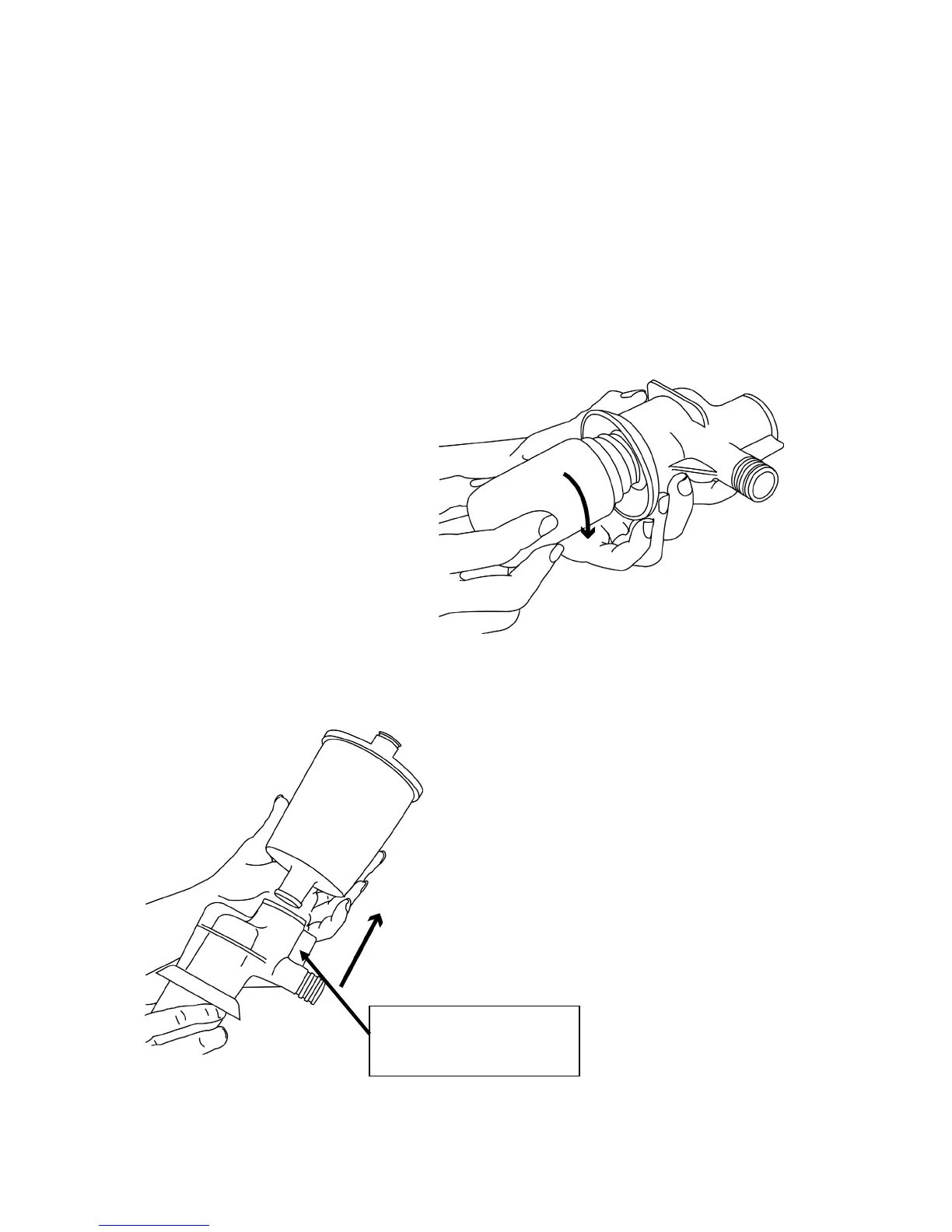

Figure 2–2: Attaching the Collection Bottle to the Water Trap
Push the exhalation filter into the water trap assembly top as shown.
Figure 2–3: Attaching the Exhalation Filter
Locating Ridge for assembly
into cartridge
