10 Chapter 2: Unpacking and Setup Operator's manual
L2786 Rev. M
Align the locating ridge on the water trap assembly with the slot in the exhalation filter cartridge (Figure 2–4).

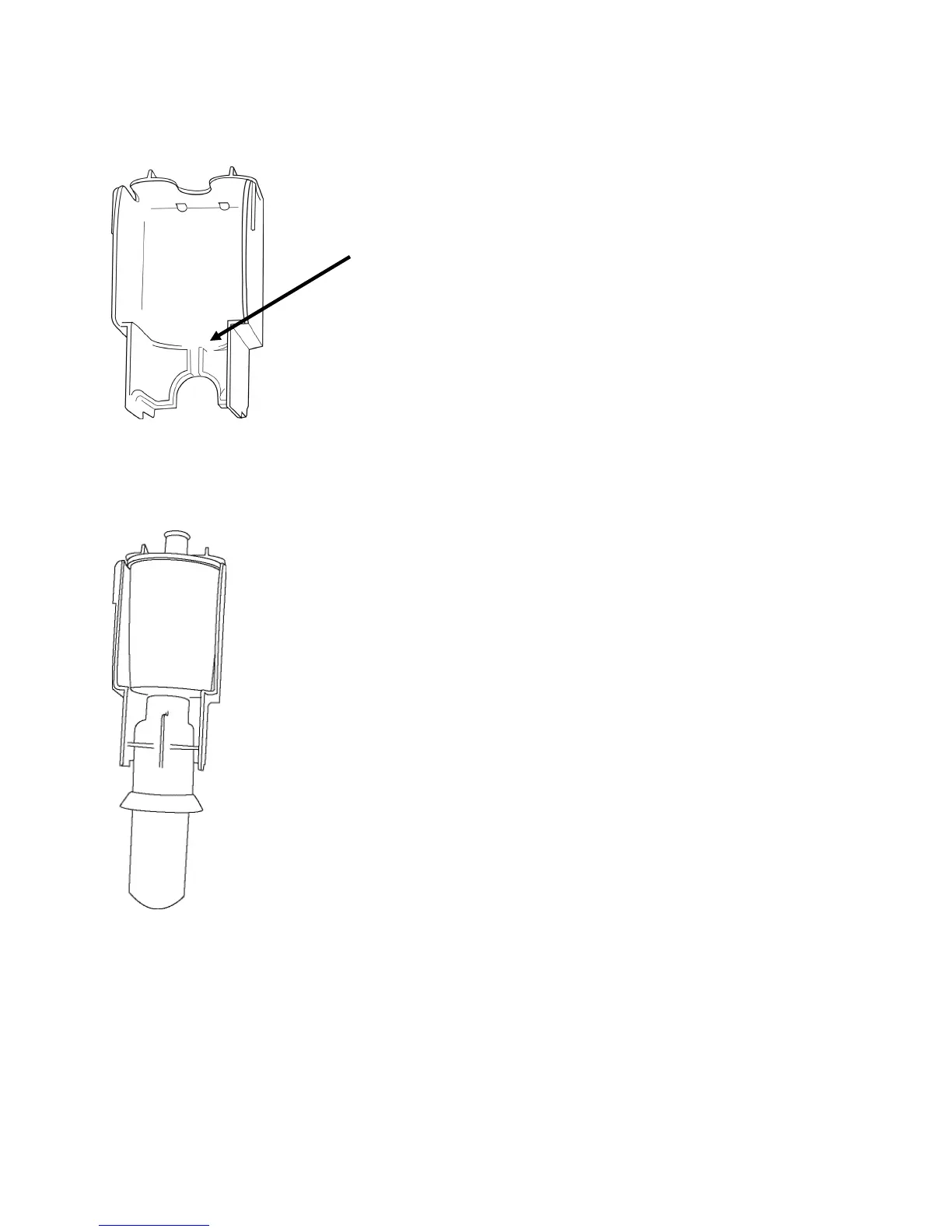

Figure 2–4: Exhalation Filter Cartridge Showing Locating Slot
Slide the water trap/exhalation filter assembly into the cartridge (Figure 2–5).
Figure 2–5: Exhalation Filter/Water Trap Assembly in Cartridge
Slot matches locating ridge
of water trap assembly
To Next Page
