AVEA ventilator systems Chapter 6: Infant Non-invasive Ventilation 151
L2786 Rev. M

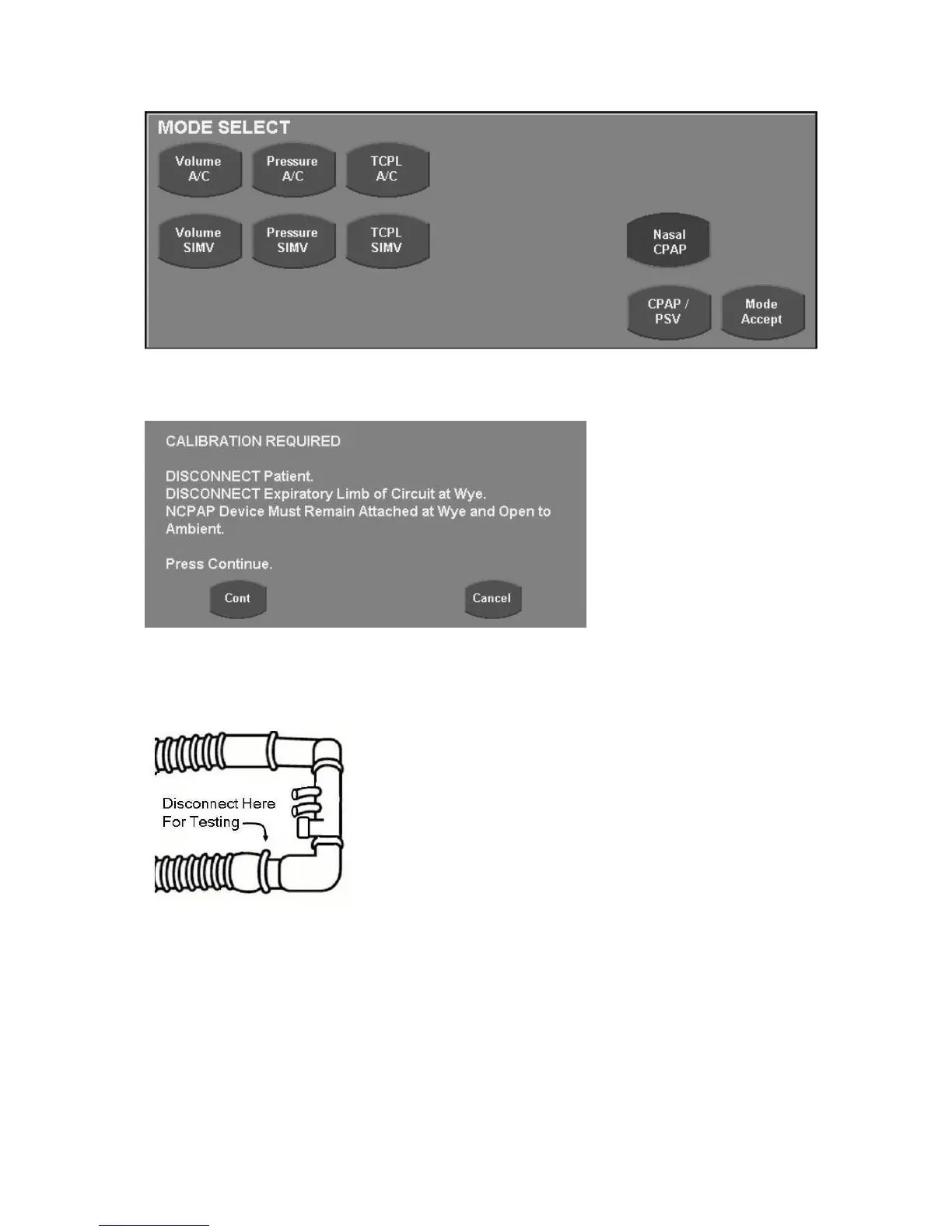

Figure 6–1: Mode selection
2. Touch Nasal CPAP. The following message appears.
Figure 6–2: Calibration Required Message
3. Disconnect the Nasal CPAP device from the patient and disconnect the expiratory limb of the circuit at the patient wye.
(Figure 6–3)
Figure 6–3: Disconnect Point for Calibration
Do not disconnect the Nasal CPAP device at the wye and leave the prongs open to ambient.
