146 Chapter 5: Volumetric Capnography Operator's manual
L2786 Rev. M
Checking the Accuracy of the CAPNOSTAT 5
The accuracy of the CAPNOSTAT 5 sensor should be compared against a calibration gas every twelve months.
1. Attach the end of the CO
2
sensor cable to the connection on the bottom of the AVEA UIM.

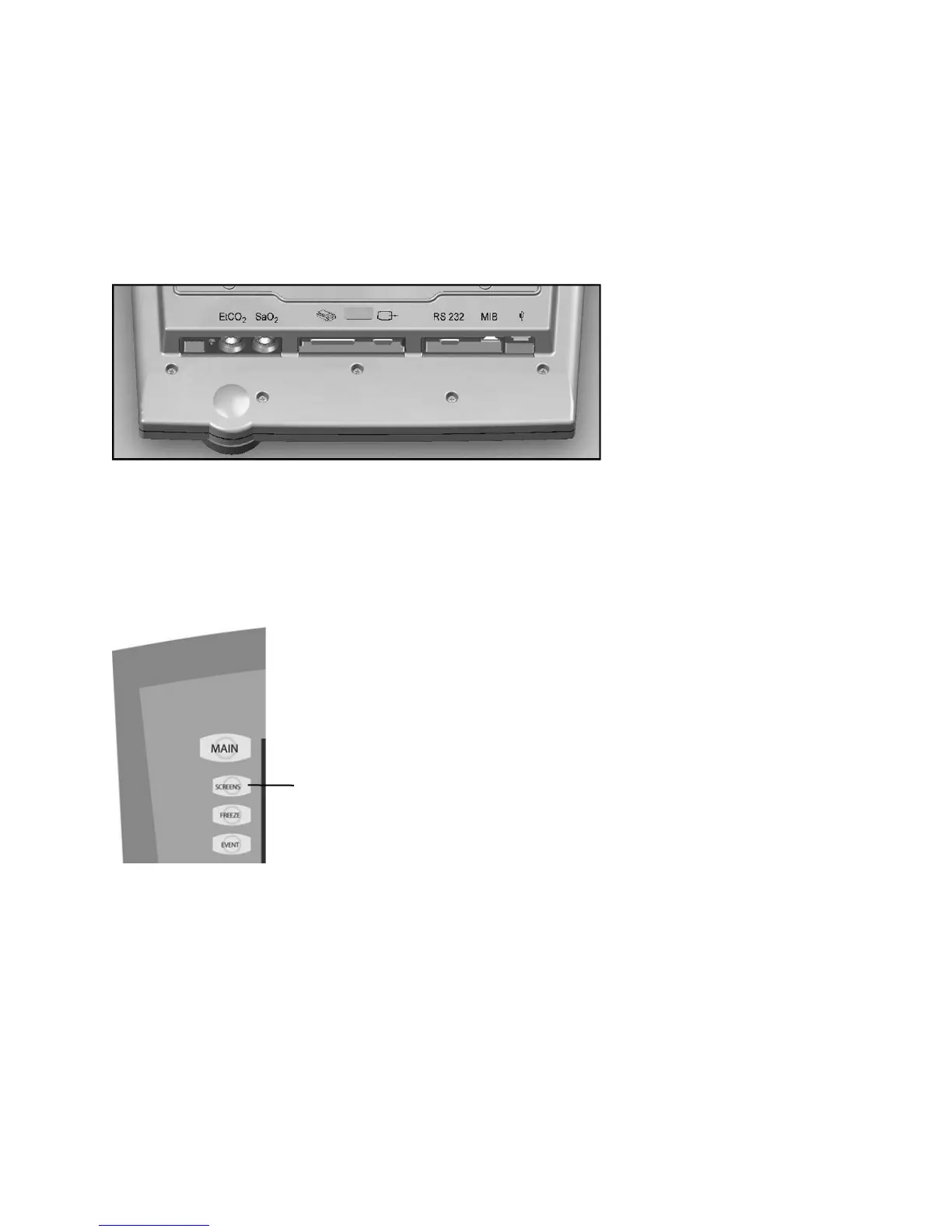

Figure 5–12: Bottom of UIM
2. Attach the CO
2
sensor to the airway adapter.
3. Access the Capnography Utilities by depressing the Screens button, selecting Utility, and the selecting the Monitoring
tab.
Figure 5–13: Screens Softkey
Screens softkey
