34 Chapter 2: Unpacking and Setup Operator's manual
L2786 Rev. M
Analog Outputs
Set Analog Output Type
The analog output flow signal can be selected between Wye Flow (calculated flow to the patient) or Machine Flow (the
flow measured by the inspiratory flow sensor within the ventilator).

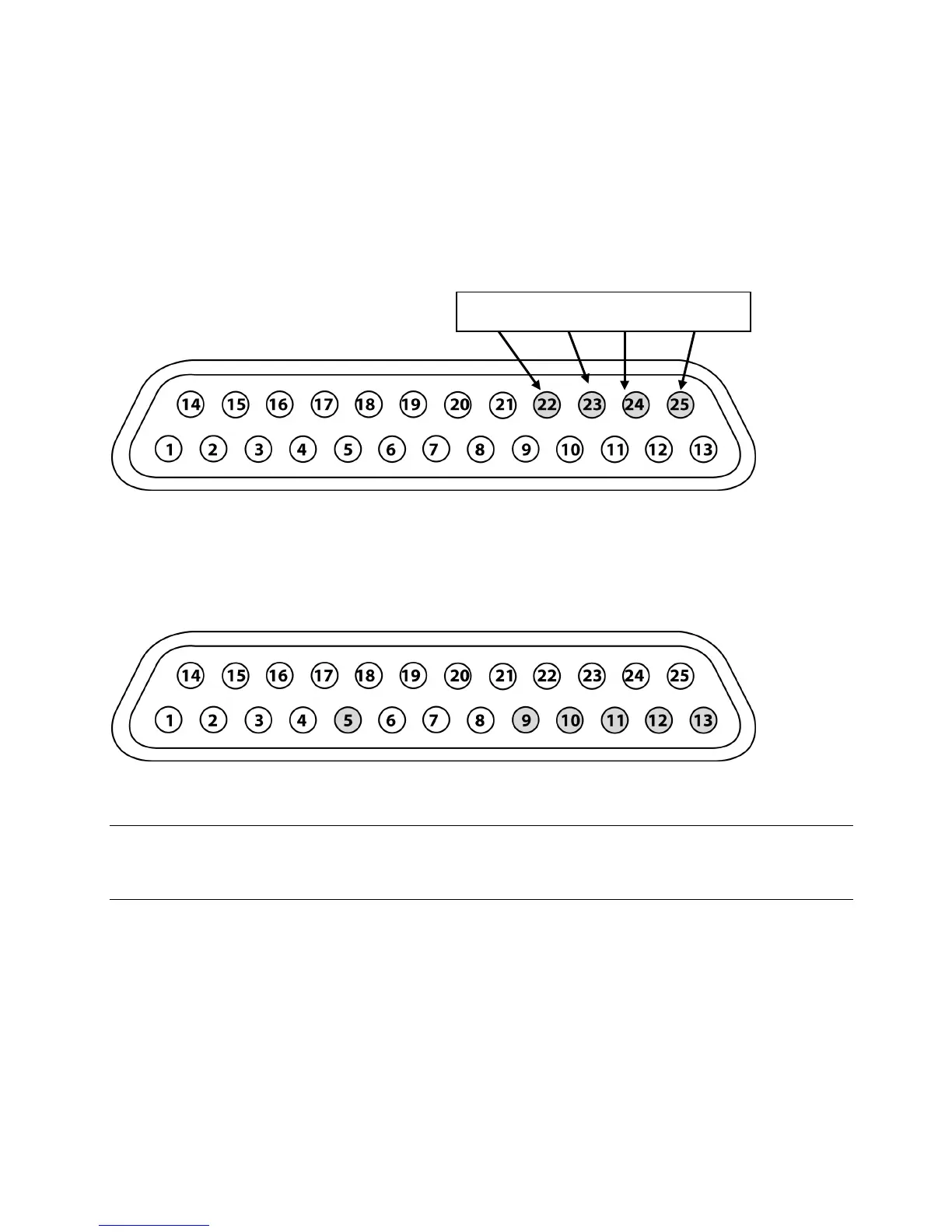

Figure 2–37: Analog Outputs Pin configuration
The pin configuration for pressure, flow, volume and breath phase analog outputs is shown above. Refer to Appendix B
Specifications for Analog Output Pressure (cmH
2
O/mv), flow ((L/min)/mv) and Volume (ml/mv) conversions.
Figure 2–38: Analog Ground Pins **
Note:
At least one analog ground is required for safe and accurate signal output and input. One analog ground is sufficient
for any and all of the other signals.
Pressure, Flow, Volume, Breath Phase
