AVEA ventilator systems Chapter 2: Unpacking and Setup 35
L2786 Rev. M
Table 2–1: ILV and Analog I/O pin configuration
PIN
FUNCTION
1 Analog Input Channel 0
14 Analog Input Channel 1
18 ILV In
6 ILV Out
20 Factory Use Only. DO NOT CONNECT.
22 Analog Output, PRESSURE
23 Analog Output, FLOW
24 Analog Output, VOLUME
25 Analog Output, BREATH PHASE
5, 9,10,11,12,13 Ground, Analog
Note: At least one analog ground is required for safe and accurate signal output and
input. One analog ground is sufficient for any and all of the other signals.
RS 232 Output
Sets the RS 232 output format for digital communications via the port labeled MIB.
The RS-232 output configuration provides the following setting choices:
Generic
Select 8, N, 1 and Baud Rates of: 9600, 2400, 4800, 9600, 19200, 38400, 57600 or 115200
or
Select CR/LF or CR Only

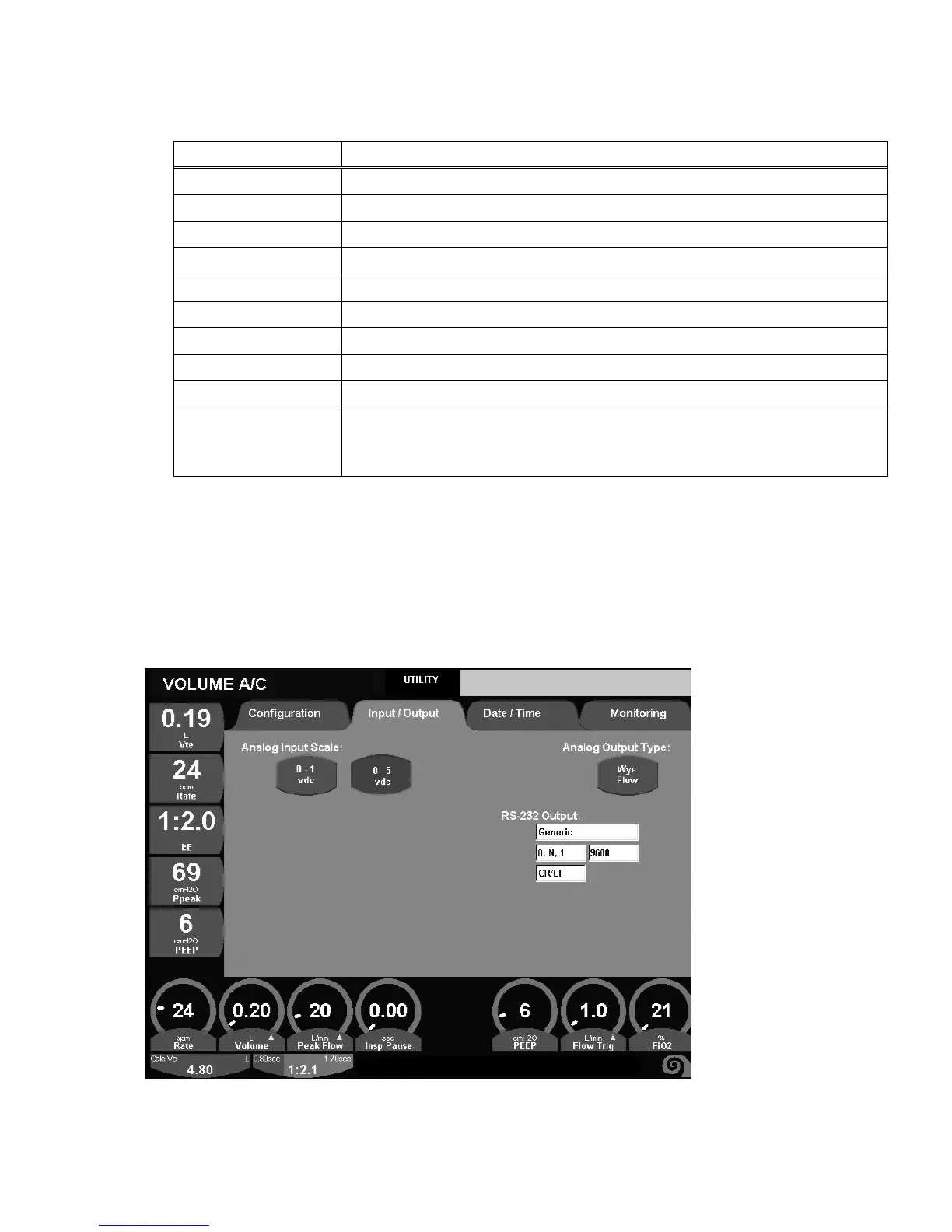

Figure 2–39: Utility Screen, Input / Output Tab, Generic RS-232 Output
