Attaching a Proximal Pressure Sensor
A proximal pressure sensor to monitor proximal airway pressure can be attached to the Comprehensive model of AVEA.
On the Comprehensive AVEA the connector is labeled as Aux as shown in Figure 2–23 and is circled in purple.
When active, this feature will display & alarm to proximal airway pressures.

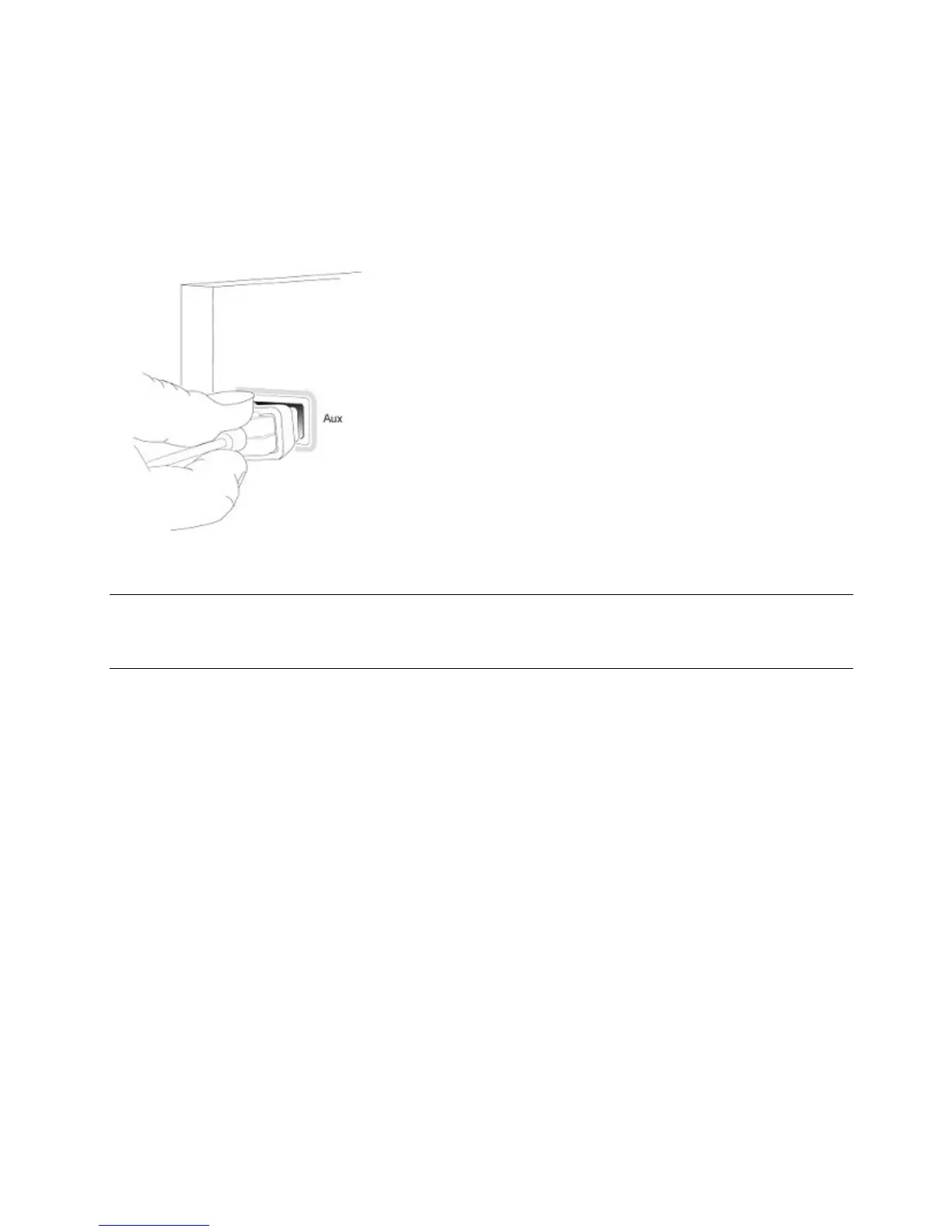

Figure 2–23: Proximal pressure sensor connection on the Comprehensive AVEA
Note:
In applications which generate high resistances within the breathing system monitored, Proximal Airway Pressure may
be higher than set Inspiratory Pressure.
