CareFusion AVEA - Disposable Expiratory Filter; Water Trap; User Instructions

12 Chapter 2: Unpacking and Setup Operator's manual
L2786 Rev. M
AVEA
®
Disposable Expiratory Filter / Water Trap
User Instructions
Installation
Note:
The AVEA Disposable Expiratory Filter / Water Trap is supplied non-sterile. It can be used as an alternative for the
AVEA reusable filter assembly (reusable filter, a collector vial, a water trap, and a cartridge component). The AVEA
reusable filter assembly is not required when using the Disposable Expiratory Filter / Water Trap.

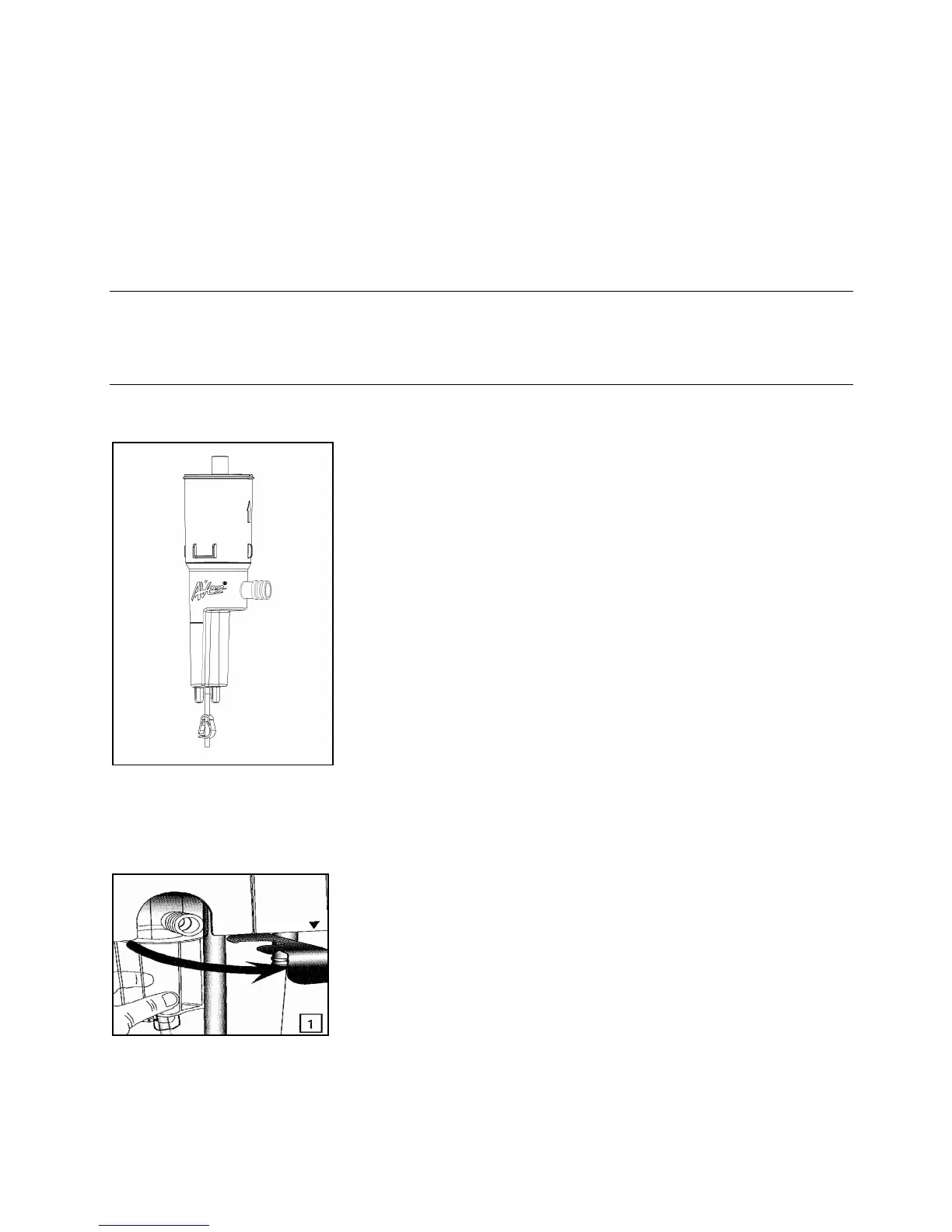

Figure 2–9: AVEA Disposable Expiratory Filter / Water Trap
1. Locate the metal locking lever on the front lower left side of the ventilator, then rotate the lever outwards to a fully open
position.
Figure 2–10: Inserting the Filter / Water Trap combination
2. Insert the AVEA Disposable Expiratory Filter into the filter cavity with the orientation as shown in Figure 2–10.
Make sure the filter is fully inserted into the filter cavity before closing the lever.
