3. Close the locking lever completely to secure the filter in the ventilator well.

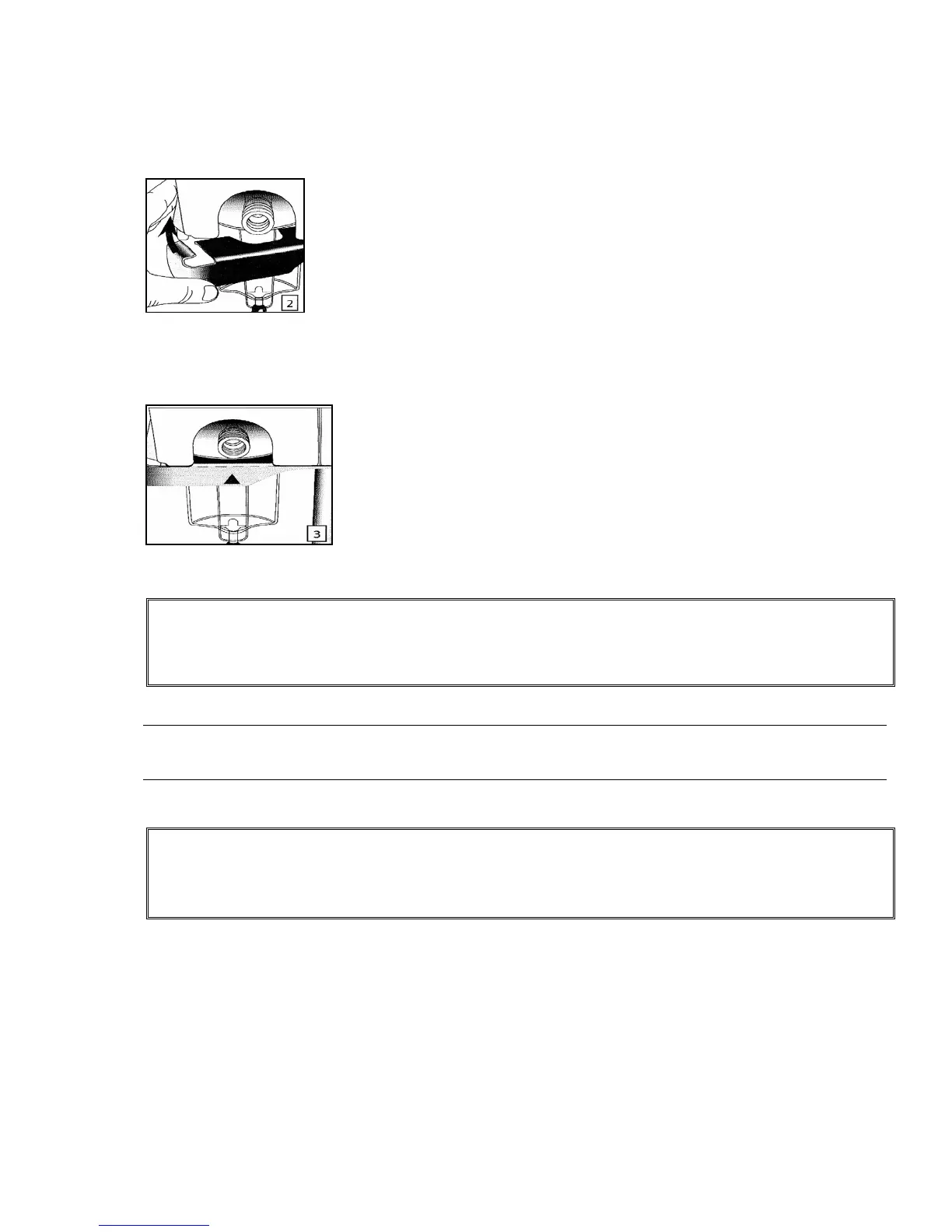

Figure 2–11: Closing the locking lever
After you close the locking lever, the filter is ready for use.
Figure 2–12: Completed installation of Filter / Water Trap combination
WARNING
Incomplete insertion of the AVEA Disposable Expiratory Filter may cause misalignment of the filter seal,
which will result in patient circuit leakage.
Note:
The lever closes without great difficulty if the filter is fully inserted into the filter cavity.
WARNING
The locking lever must be closed completely to ensure that the filter is properly installed and
securely locked.
