AVEA ventilator systems Chapter 2: Unpacking and Setup 11
L2786 Rev. M
Rotate the metal locking lever on the lower right of the ventilator body
forward to an open position.

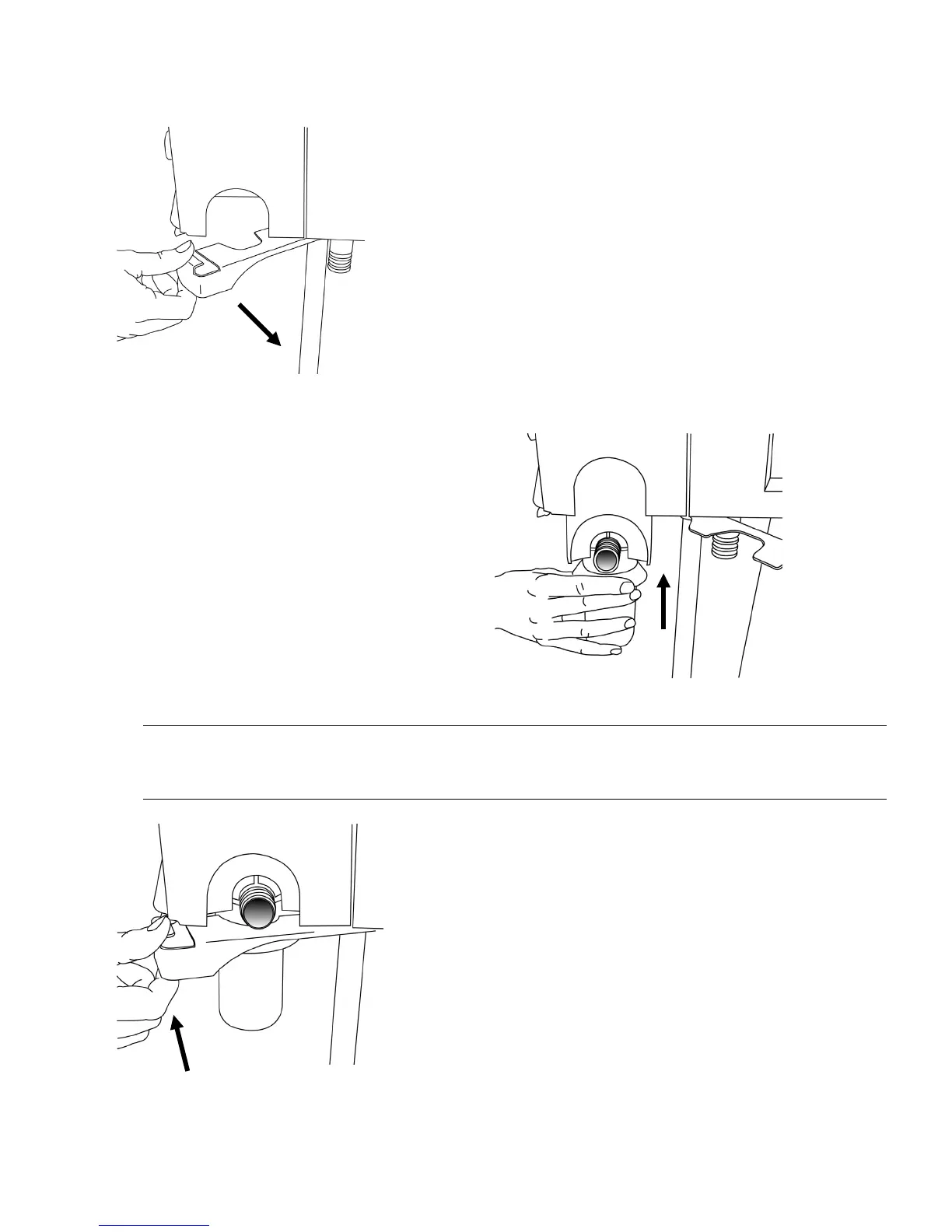

Figure 2–6: Open locking lever
Insert the completed cartridge assembly
into the ventilator body as shown. Make
sure it is completely seated in the well.
Figure 2–7: Insert exhalation filter
Note:
Placement of the exhalation filter/water trap assembly without the exhalation filter cartridge may cause misalignment of
the filter seal resulting in patient breathing circuit leaks.
Close the locking lever.
Figure 2–8: Close locking lever in place
