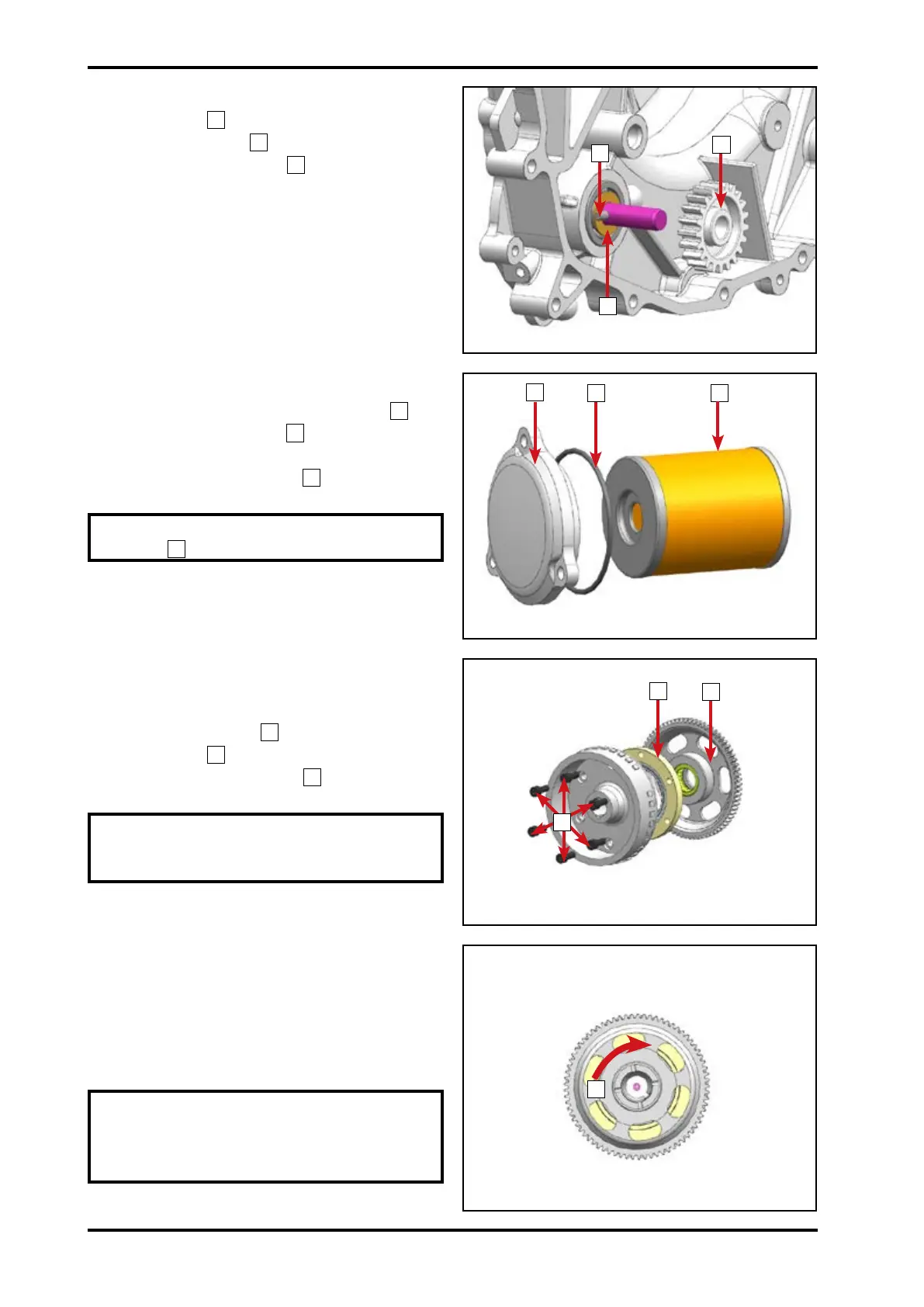

Install washer
1
.
Install roller needle
2
.
Install water pump gear
3
.
5.5.13 Oil Filter
Replace with a new oil lter element
1
.
Inspect o-seal ring
2
for cracks or
damage. Replace if necessary.
Inspect oil filter cover
3
for damage.
Replace if necessary.
NOTE: Replace with a new oil filter
element
1
after removal.
5.5.14 Overriding Clutch
Disassembly
Remove driven gear
2
.
Remove bolts
1
.
Remove overriding clutch
3
.
NOTE: If there is no defect on
overriding clutch, it is not necessary to
remove it.
Inspection
Inspect overriding clutch function. Rotate
driven gear in overriding clutch.
Inspect overriding clutch and clutch
housing for wear or other damage.
NOTE: The clock-wise rotation of
overriding clutch must be locked.
Replace the clutch, housing and gears
together if damaged.
3
2
1
1
2
3
1
3
2
1
056601
056602
056603
056604
