CFMOTO
04-36

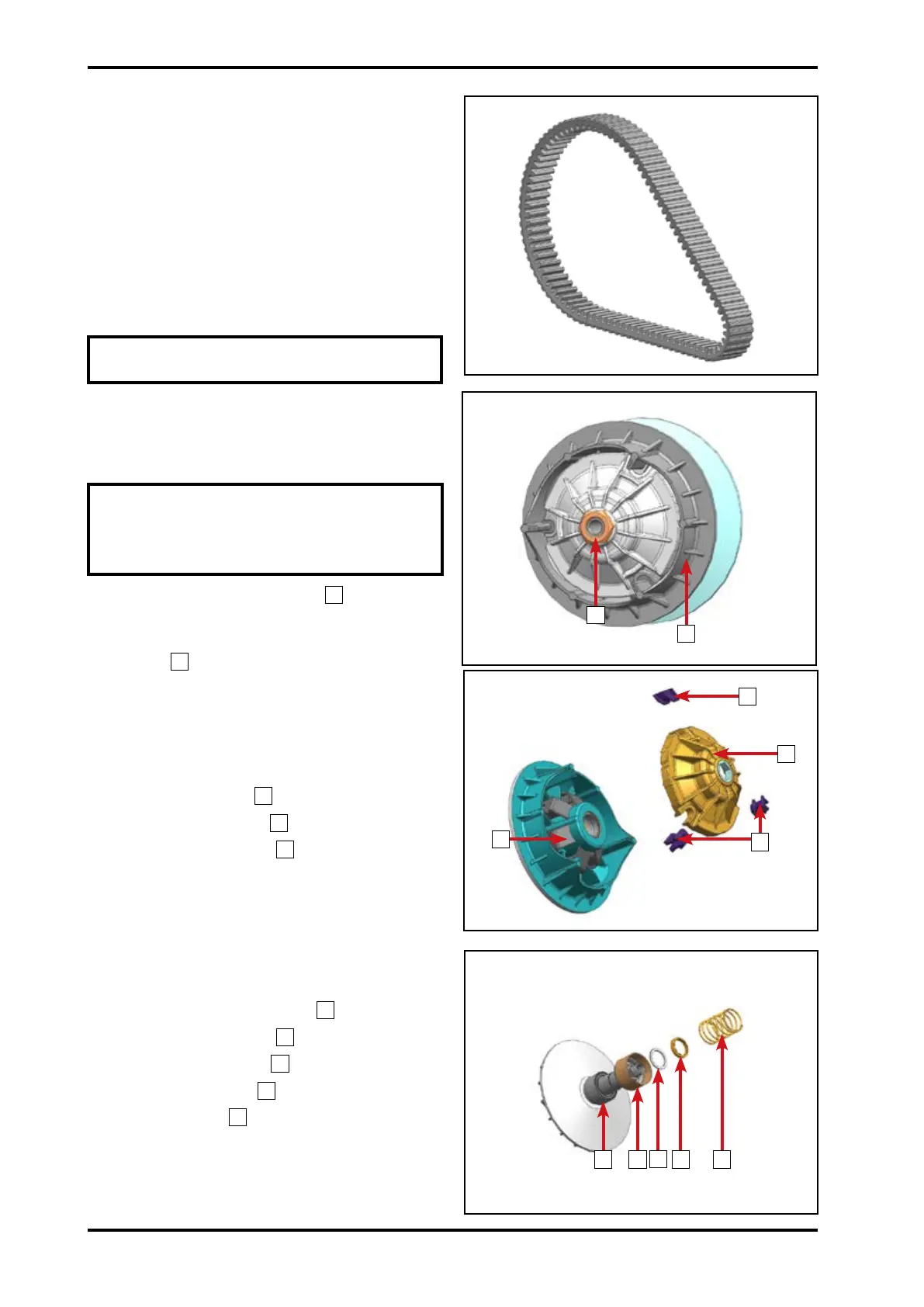

4.3.2 Drive Belt Inspection
Inspect drive belt for oil stain or damage.
Inspect belt contact surface for cracks or
damage. Measure belt width with vernier
caliper.
Replace with a new belt if damaged or
beyond service limit.
Drive belt service limit: 33.5 mm
NOTE: Clean the belt thoroughly if oil
and grease is on the belt surface.
4.3.3 Drive Pulley Inspection
Disassembly
NOTE: Before disassembly of the drive
pulley, mark the ramp place, moveable
sheave and stationary sheave for
aligment.
Remove drive pulley nut
1
(left-hand
thread).
Remove drive pulley moving sheave
assembly
2
.
Remove ramp plate
1
.
Remove nylon sliders
2
.
Remove weight rollers
3
.
Remove drive pulley spring
1
.
Remove nylon washer
2
.
Remove steel washer
3
.
Remove spring seat
4
.
Remove bearing
5
.
12
3
45
2
2
1
3
1
2
040602
040603
040604
040601
