04 CVT System
04-37
1
2

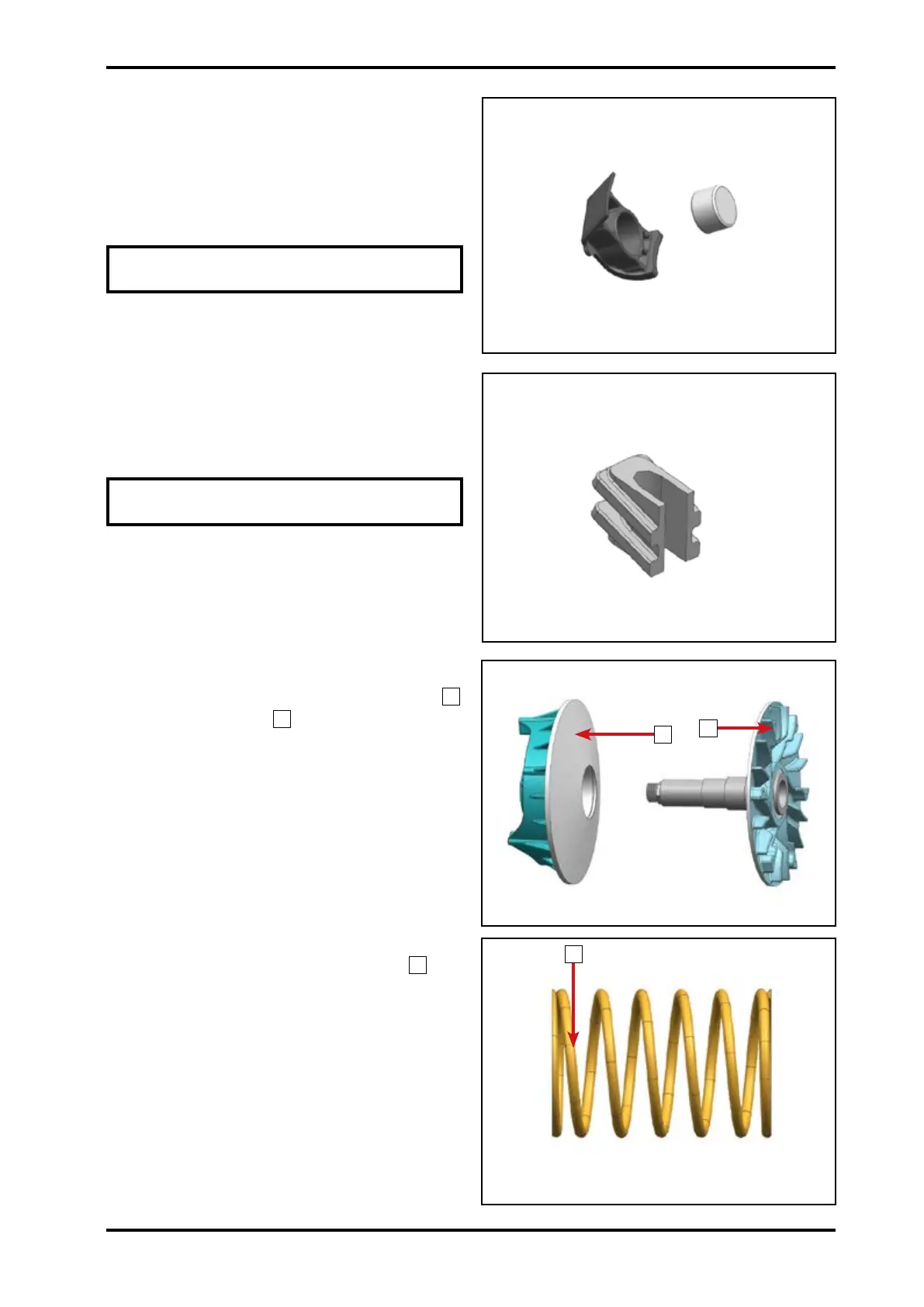

Inspection
Inspect every weight and sliding surface
for damage or wear. Replace all sliders if
any defect occurs.
NOTE: Weight sliders must be replaced
as a whole set.
Inspect ramp plate sliders for wear or
damage. Replace all sliders if any defect
occurs.
NOTE: Ramp sliders must be replaced
as a whole set.
Drive Pulley Stationary Sheave and
Moving Sheave Inspection
Inspect drive pulley stationary sheave
2
and moving sheave
1
surfaces for wear or
damage. Replace if necessary.
Drive Pulley Spring Inspection
Inspect the drive pulley spring
1
for
severe deformation or break. Replace if
any defect is found.
1
040702
040703
040704
040701
