CFMOTO
05-90
1
2
3

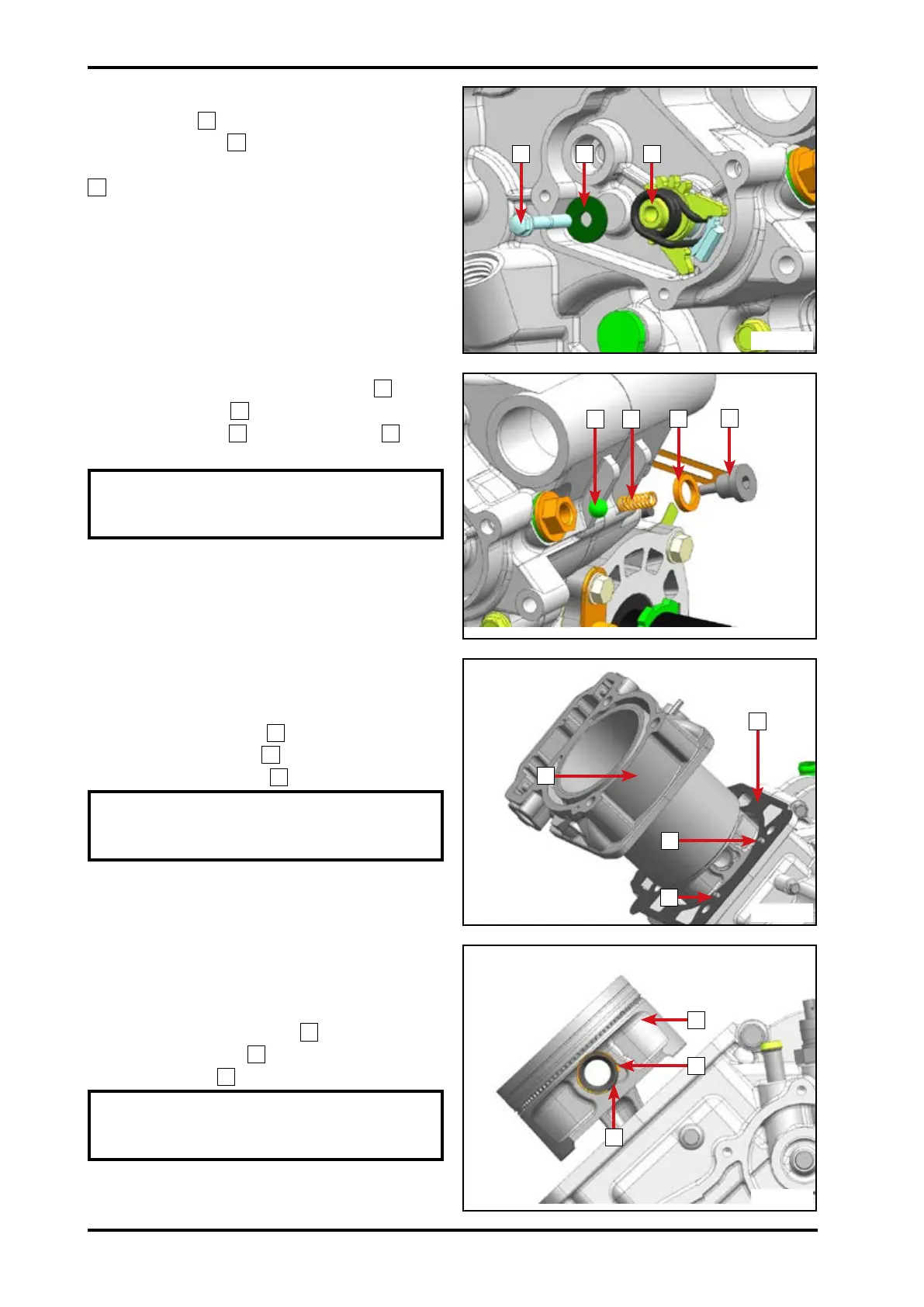

Remove bolt
1
.
Remove washer
2
.
Remove gearshift driven sector gear assy
3
.
Remove gearshift limit spring seat
1
.
Remove retainer
2
.
Remove spring
3
and steel ball
4
with
magnet.
NOTE: Pay attention to retainer and
steel ball during removal, in case they
get lost.
5.4.26 First Cylinder and Piston
Remove rst cylinder
1
.
Remove seal gasket
2
.
Remove roller needle
3
.
NOTE: Make marks on cylinders during
removal, to prevent getting mixed up
during installation.
Rotate crankshaft until rst cylinder piston
exposes.
Remove from either side:
Remove piston pin circlip
1
.
Remove piston pin
2
.
Remove piston
3
.
NOTE: Make marks on pistons during
removal, to prevent getting mixed up
during installation.
1
2
34
1
3
3
2
1
2
3
054601
054602
054603
054604
