CF MOTO ZForce 950EX - 5.4 Engine Disassembly

05-79
05 Engine

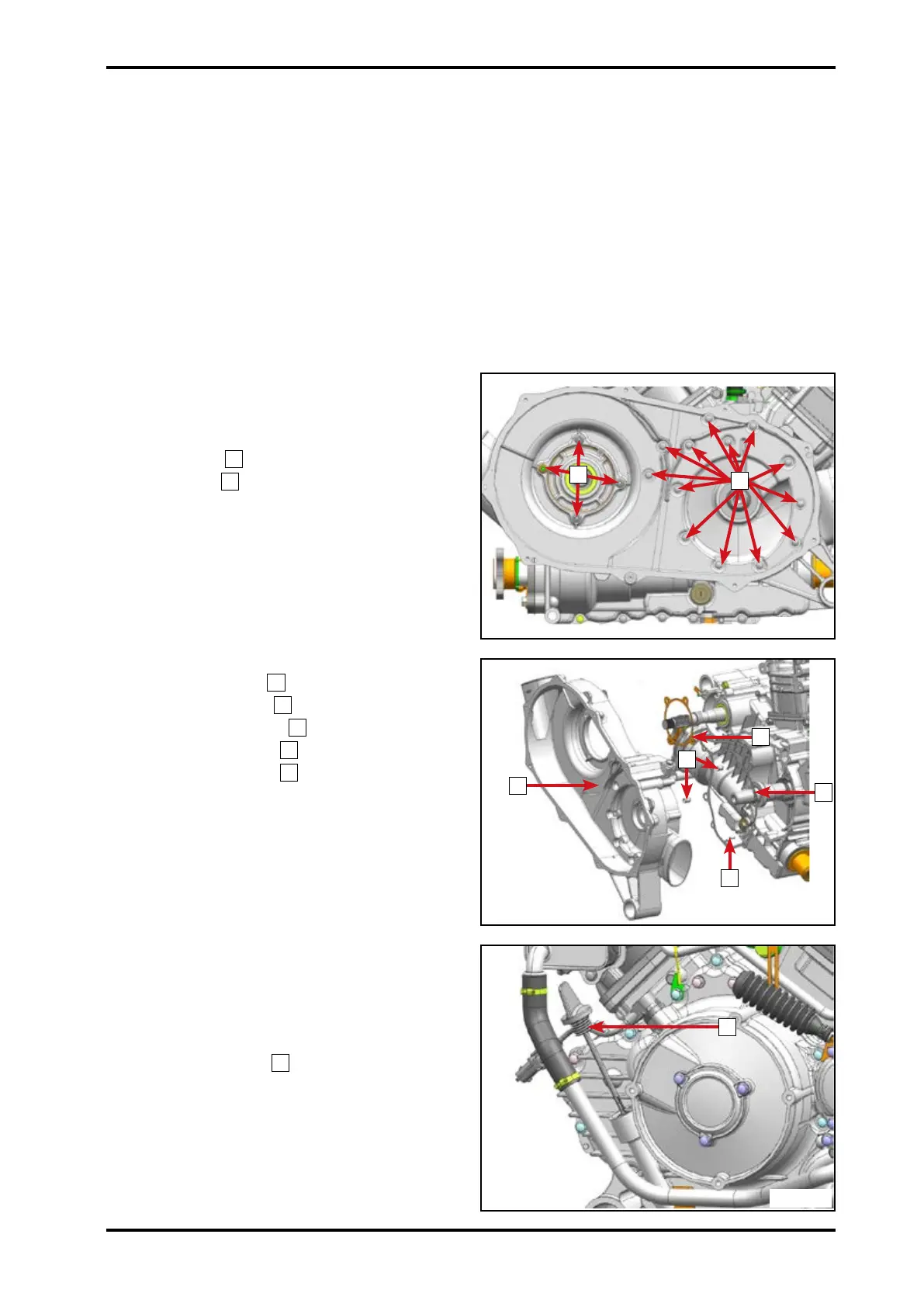

5.4 Engine Disassembly
Put engine on work bench and xate it,
in case the engine falls down to cause
injury and damage.
5.4.1 CVT
CVT removal procedures refer to 04 CVT
chapter.
Remove bolts
1
.
Remove nuts
2
.
Remove CVT case
1
.
Remove dowel pins
2
.
Remove roller needle
3
.
Remove seal gasket
4
.
Remove seal gasket
5
.
5.4.2 Engine Oil and Transmission Oil
Drain
Engine Oil
Remove oil dipstick
1
.
1
1
5
2
4
3
2
1
053501
053502
053503
