05-129
05 Engine
A

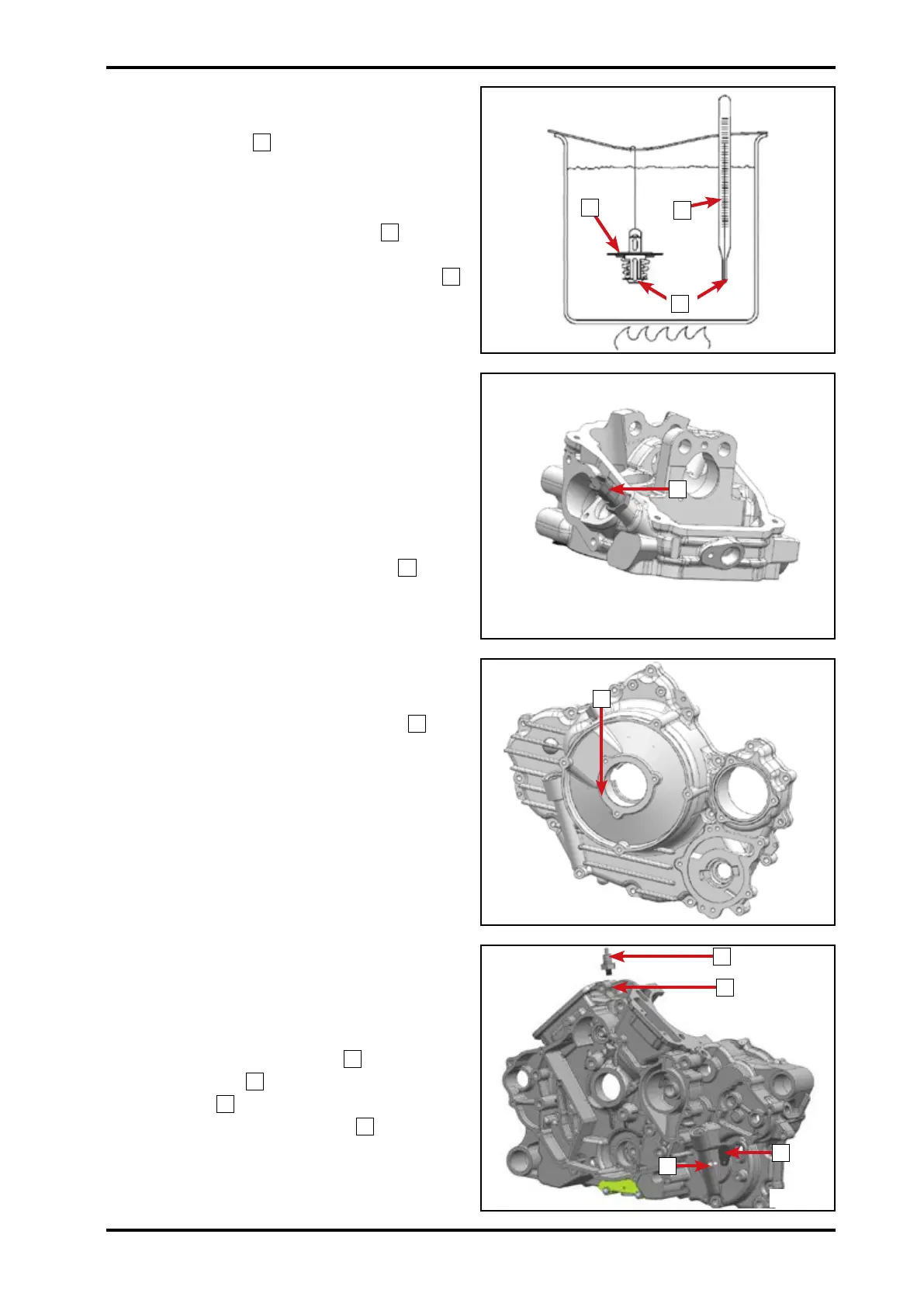

For valve open temperature inspection,
hang thermostat
A
into the container full
of water. Heat the water slowly.
The thermostat should be fully immersed
without touching container wall and
bottom. Hang a thermometer
B
at the
same level without touching wall and
bottom either. Then the thermal position
C
is the same.
Replace with a new thermostat if beyond
standard.
Thermostat valve open temperature:
Open temperature: 63°C~67°C
Fully open temperature: 85°C, lift
range≥5.0
Water Temperature Sensor
Remove water temperature sensor
1
.
Water temperature sensor inspection
refers to Electrical System chapter.
Replace if damaged.
5.5.29 MAG Crankcase Cover
Inspect MAG crankcase cover
1
for
cracks or damage. Replace the whole set
if necessary.
5.5.30 MAG Crankcase
Oil Pressure Sensor and Speedometer
Sensor
Remove oil pressure sensor
1
.
Remove washer
2
.
Remove bolt
3
.
Remove speedometer sensor
4
.
1
1
1
2
4
3
C
B
058601
058602
058603
058604
