CFMOTO
05-152

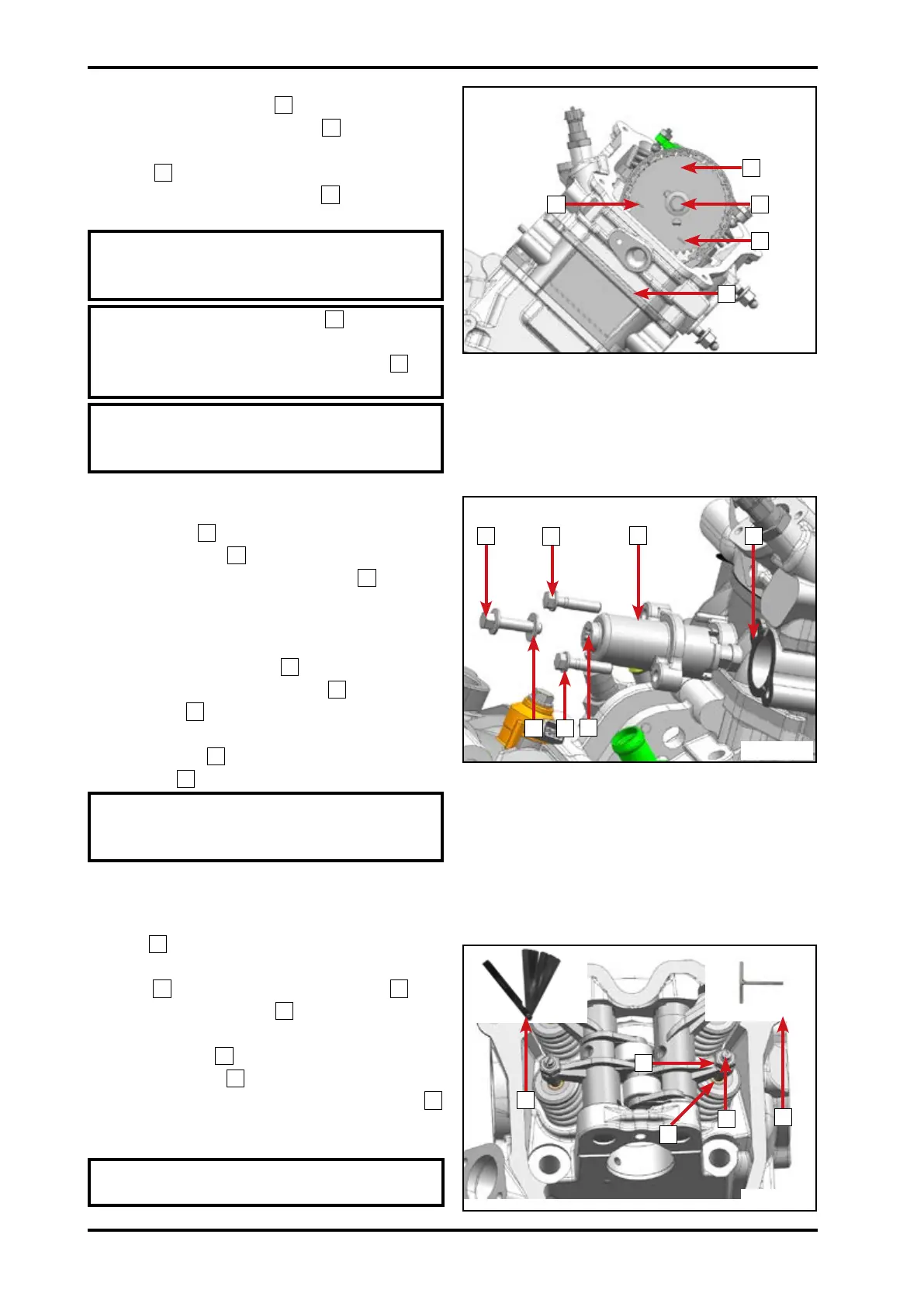

Set timing sprocket
1
in timing chain.
Make the marker lines
2
on timing
sprocket parallel with cylinder head lower
surface
3
.
Install timing sprocket bolt
4
with thread
locker. Tighten torque: 30N•m.
NOTE: Install timing sprockets
according to the made marks, to
prevent incorrect installation.
NOTE: The marker lines
2
on timing
sprocket should be parallel with
cylinder head lower surface
3
as
picture shows.
NOTE: Do not rotate crankshaft during
installation. Inspect TDC position
constantly during installation.
5.6.22 First Cylinder Tensioner
Remove bolt
1
.
Remove washer
2
.
Put cross screw driver into hole
3
. Rotate
it clockwise to adjust tensioner arm to the
appropriate length. (Do not loosen screw
driver.)
Install new seal gasket
4
.
Install timing chain tensioner
5
.
Install bolts
6
.
Loosen cross screw driver.
Install washer
2
.
Install bolt
1
.
NOTE: Install tensioners according to
the made marks, to prevent incorrect
installation.
5.6.23 First Cylinder Valve Clearance
Adjustment
Fix nut
1
with wrench.
Use special tool: Valve Clearance adjusting
wrench
2
to loosen adjusting screw
3
.
Insert filler gauge
4
of appropriate
thickness between rocker arm and valve
spring lock clip
5
.
The filer gauge
4
can be moved without
much force. Then tighten adjusting nut
1
. Inspect again to make sure the clearance
is qualied.
NOTE: The cylinder must be at TDC
position before clearance adjustment.
2
2
3
4
1
1
2
6
6
3
5
4
1
3
4
2
5
0510801
0510802
0510803
