CF MOTO ZForce 950EX - Air Bag; Oil Filter; Water Pump

05-85
05 Engine
1
2
3
1

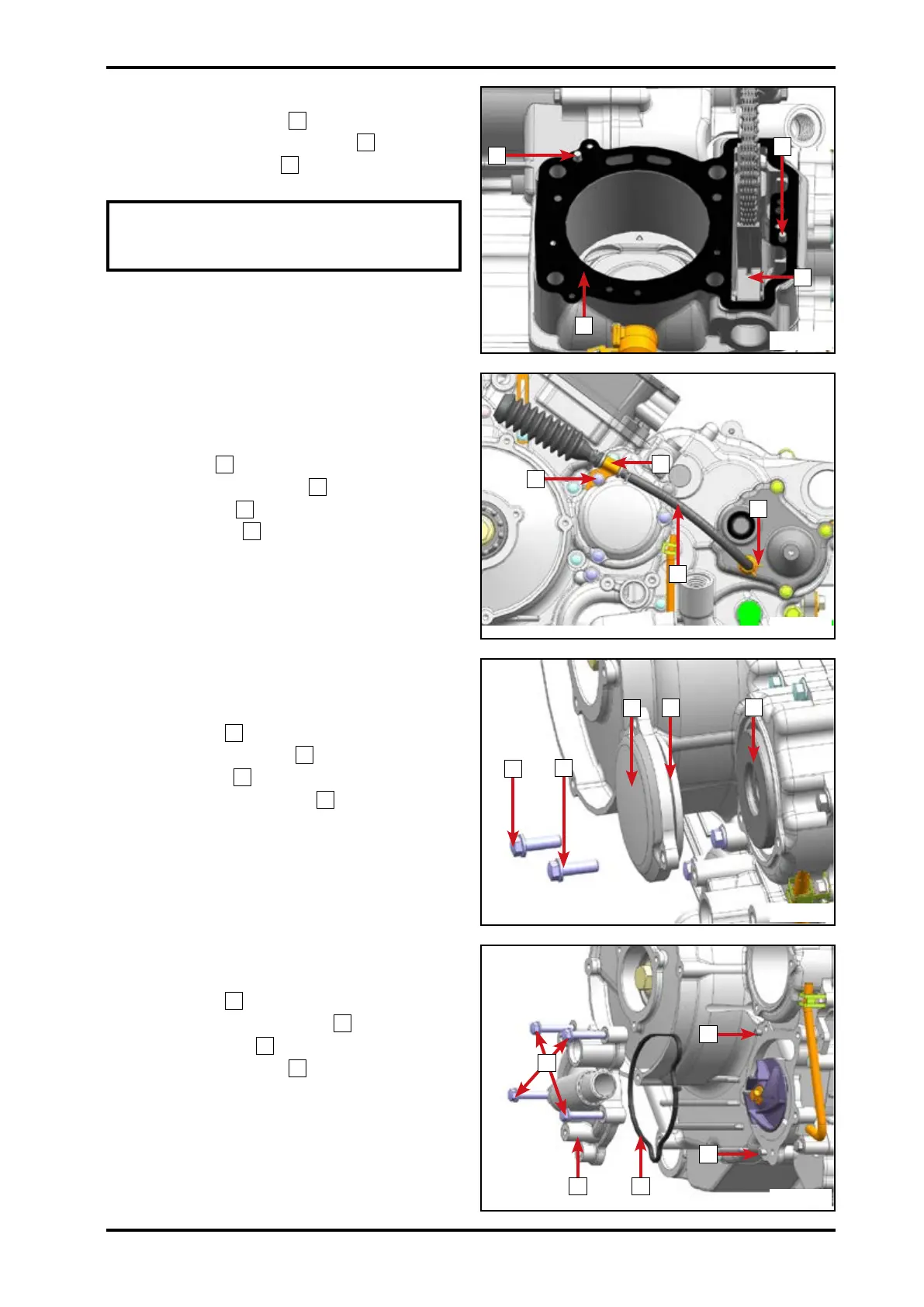

Remove roller needle
1
.
Remove cylinder head gasket
2
.
Remove chain guide
3
.
NOTE: Make marks on chain guides
during removal, to prevent getting
mixed up during installation.
5.4.13 Air Bag
Remove bolt
1
.
Remove air bag bracket
2
.
Remove clamp
3
.
Remove air bag
4
.
5.4.14 Oil Filter
Remove bolts
1
.
Remove oil lter cover
2
.
Remove o-ring
3
from oil lter cover.
Remove oil lter element
4
.
5.4.15 Water Pump
Remove bolts
1
.
Remove water pump cover
2
.
Remove seal ring
3
from water pump.
Remove roller needle
4
.
2
1
3
4
1
1
2
3
4
1
2
3
4
4
054101
054102
054103
054104
