CFMOTO
06-16
1
3
1
2
1
2
1
3
2
061601
061602
061604
061603
1
2

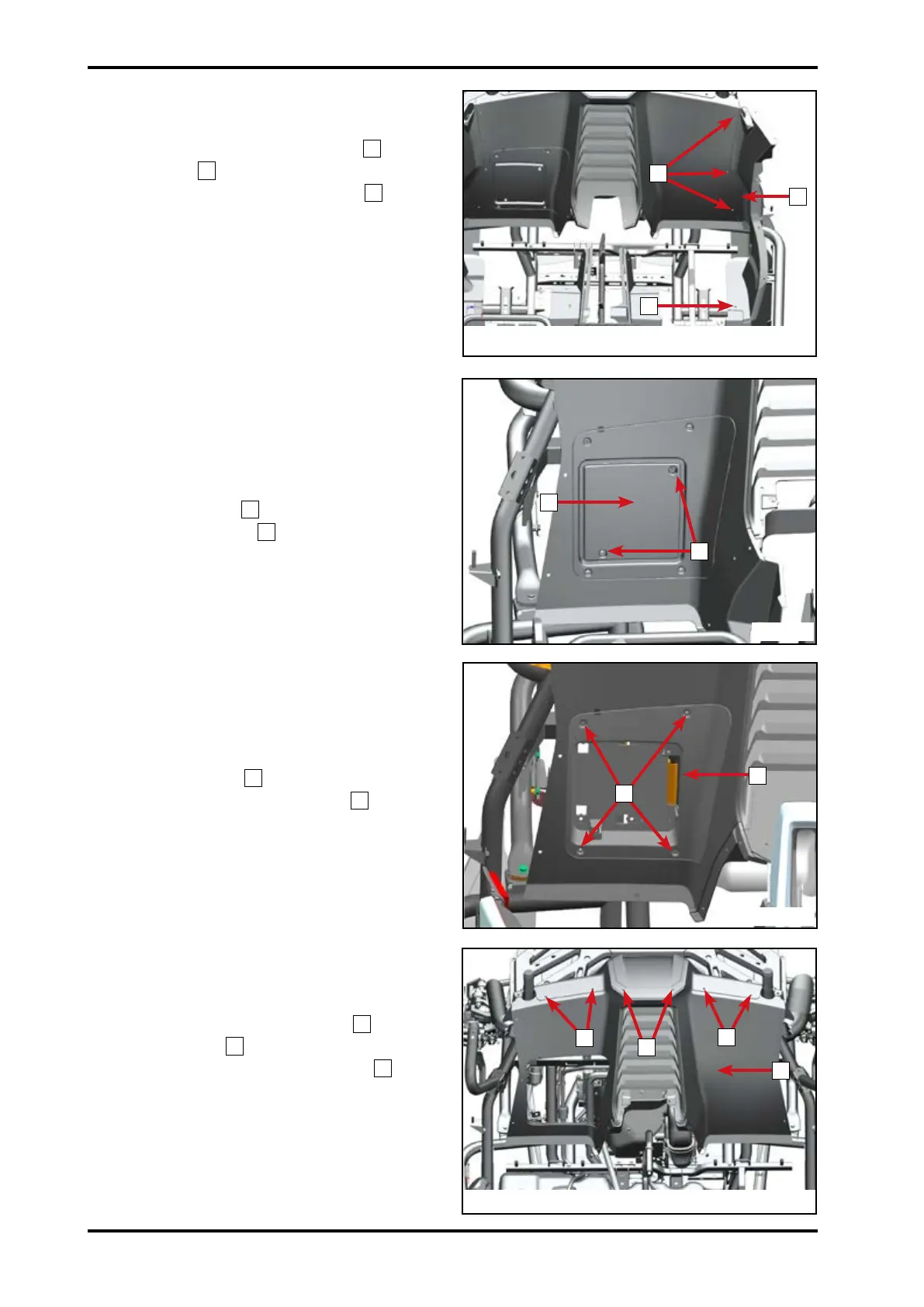

6.20 Seat LH Protection Plate
Removal
Remove three expansion screws
1
.
Remove bolt
2
.
Remove seat LH protection plate
3
.
Seat RH protection plate follows the same
removal procedures.
Installation
Reverse the removal procedures for
installation.
6.21 Seat Rear Protection Plate
6.21.1 ECU Cover
Removal
Remove two bolts
1
.
Remove ECU cover
2
.
Installation
Reverse the removal procedures for
installation.
6.21.2 Seat Rear Service Plate
Removal
Unplug ECU connectors.
Remove four bolts
1
.
Remove seat rear service plate
2
.
Installation
Reverse the removal procedures for
installation.
6.21.3 Seat Rear Protection Plate
Removal
Remove four expansion screws
1
.
Remove screws
2
.
Remove seat rear protection plate
3
.
Installation
Reverse the removal procedures for
installation.
