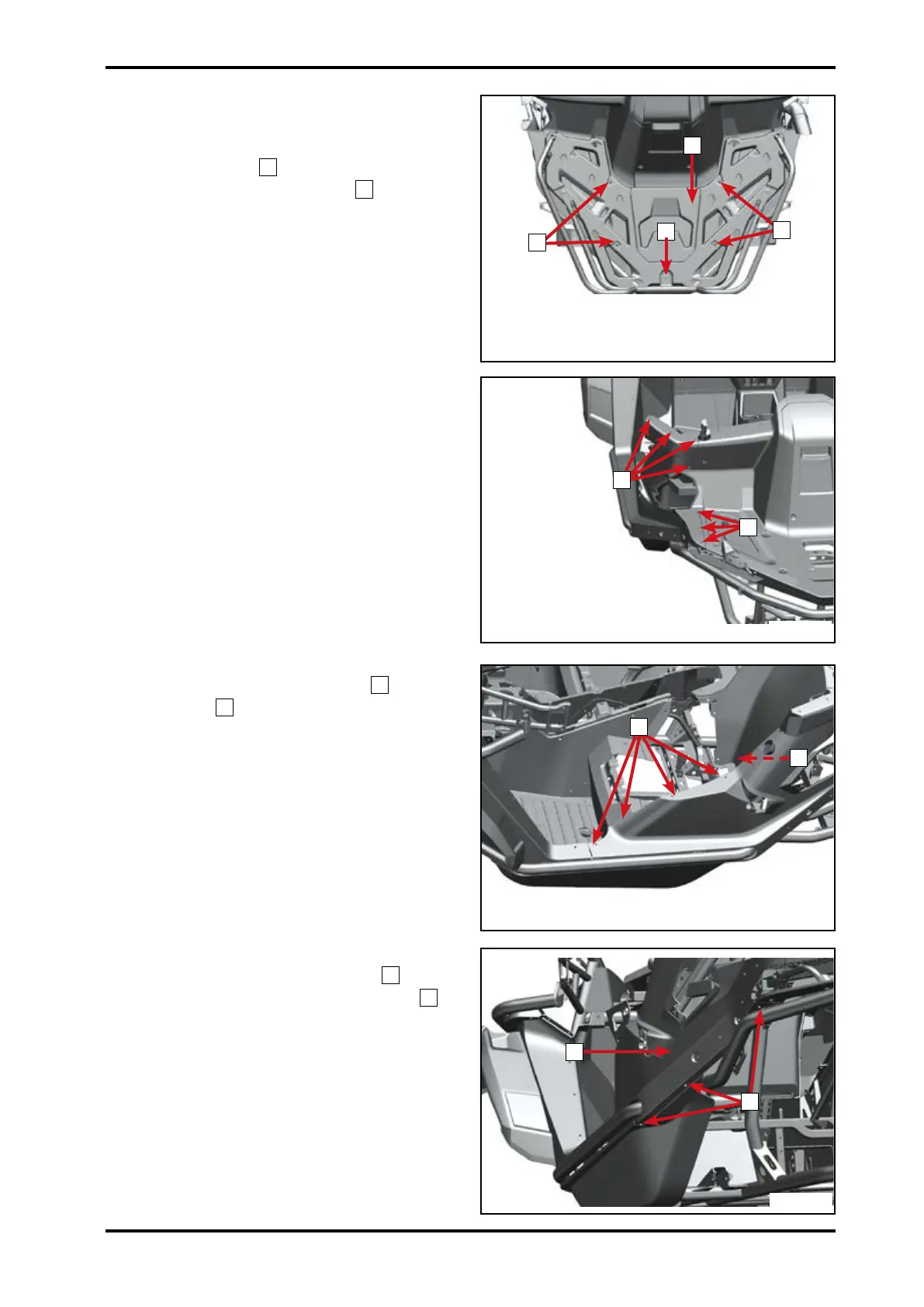

6.18.2 Rear Rack Cover Plate
Removal
Remove ve bolts
1
.
Remove rear rack cover plate
2
.
Installation
Reverse the removal procedures for
installation.
6.19 Rear Side Protection Plate
Removal
Remove seven expansion screws.
Remove four expansion screws
1
.
Remove bolt
2
.
Remove three expansion screws
1
.
Remove LH rear side protection plate
3
.
RH rear side protection plate follows the
same removal procedures.
Installation
Reverse the removal procedures for
installation.
1
