CF MOTO ZForce 950EX - MAG Crankcase Cover; Starter Motor

CFMOTO
05-86

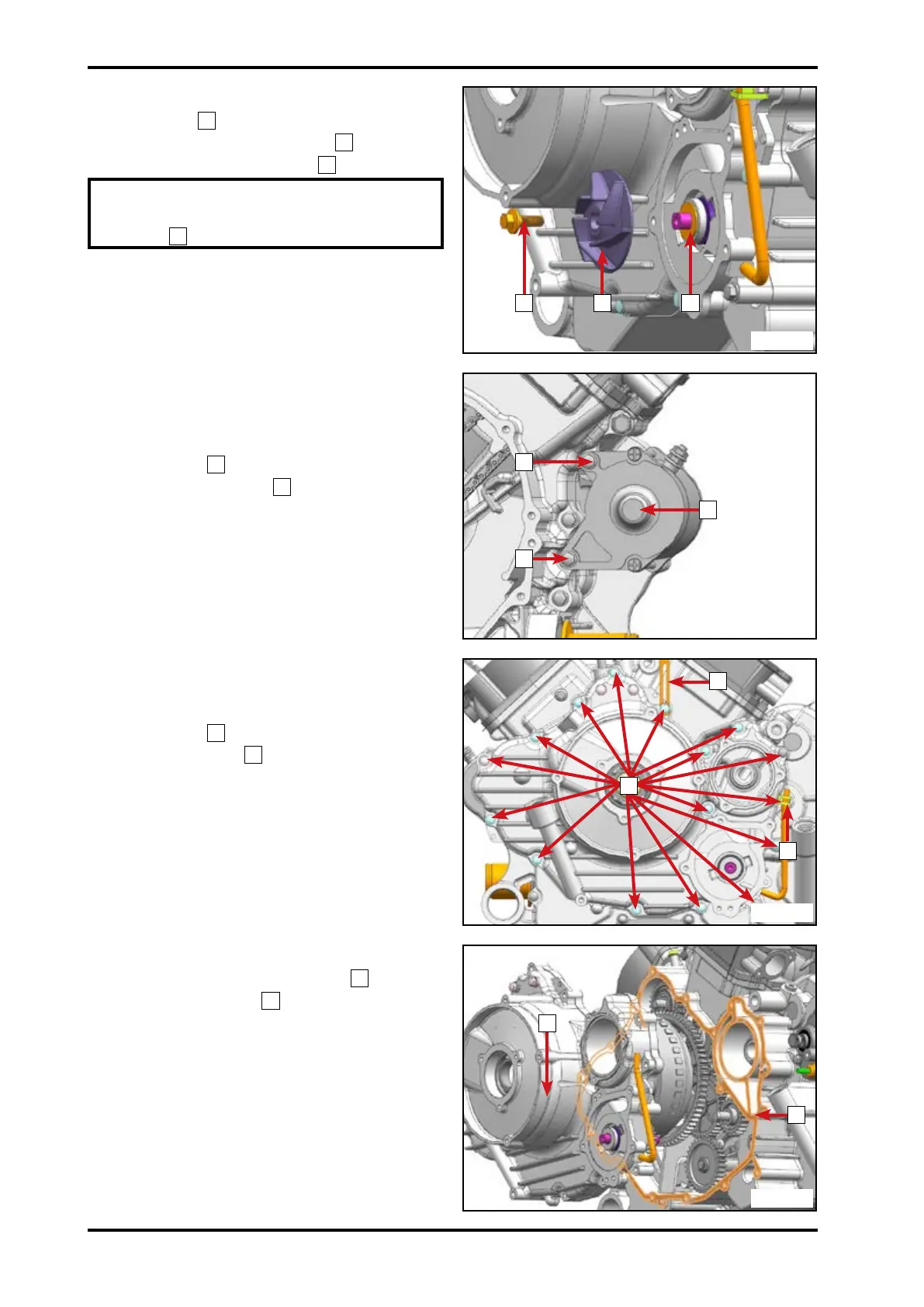

Remove bolt
1
.
Remove water pump impeller
2
.
Remove water seal washer
3
.
NOTE: Pay attention not to damage
water pump impeller during removal.
The bolt
1
is left-hand thread.
5.4.16 Starter Motor
Remove bolts
1
.
Remove starter motor
2
.
5.4.17 MAG Crankcase Cover
Remove bolts
1
.
Remove wire clips
2
.
Remove MAG crankcase cover
1
.
Remove seal gasket
2
.
1
2
3
1
1
2
1
2
2
1
1
054201
054202
054203
054204
