CF MOTO ZForce 950EX - Muffler Assy Assembly

05-75
05 Engine
Assembly

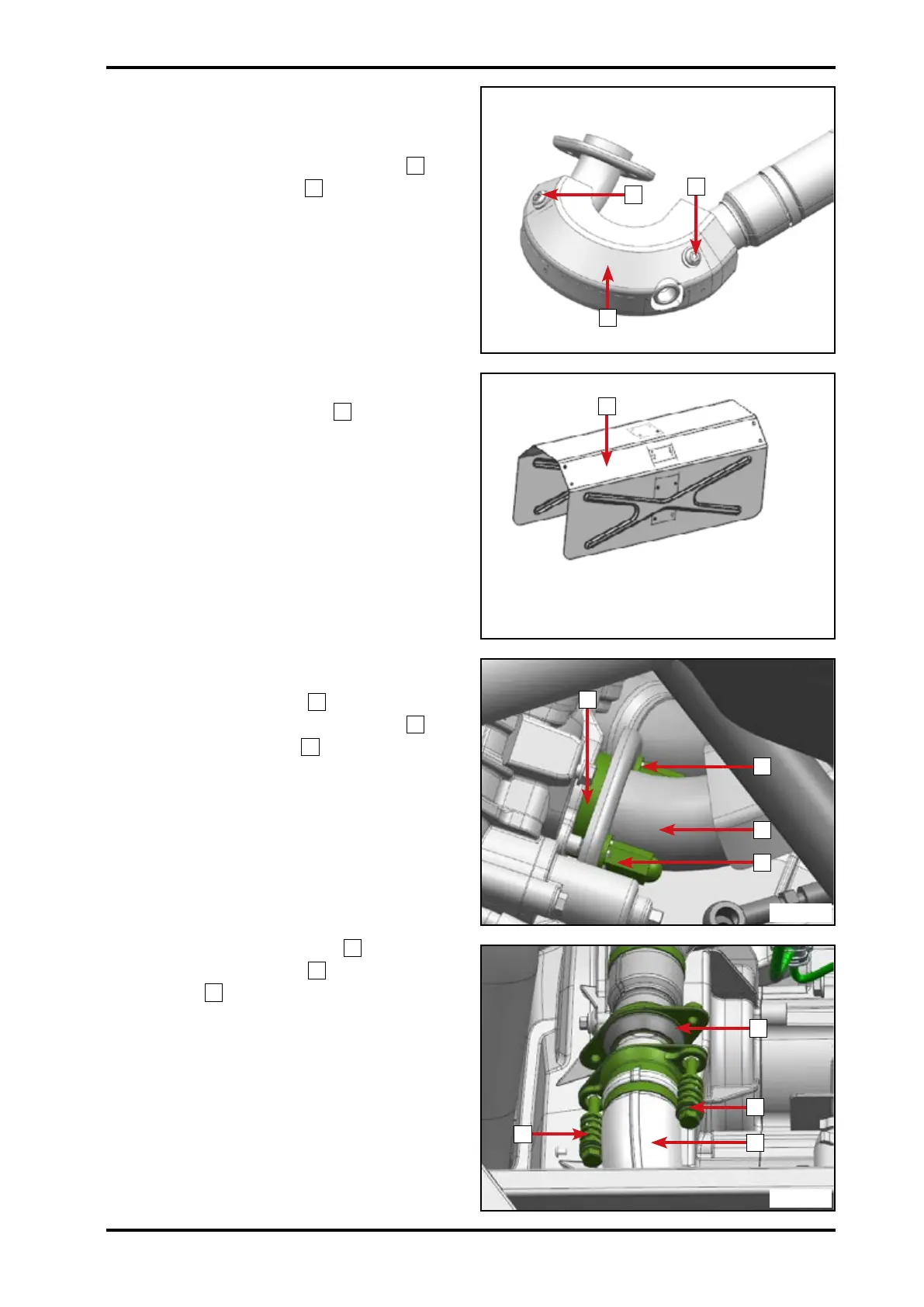

Install front pipe heat insulator parts
1
.
Install inner hex screws
2
.
Inspect heat insulator parts
1
for damage.
Replace if necessary.
5.3.3.3 Mu󰀪er Assy Assembly
Install graphite seal ring
1
.
Install front pipe heat insulator parts
2
.
Install mu󰀪er joint nuts
3
.
Install mu󰀪er rear pipe assy
1
.
Install graphite seal ring
2
.
Install bolts
3
with springs and washers.
1
2
2
3
2
3
1
1
2
3
1
3
053101
053102
053103
053104
