CF MOTO ZForce 950EX - Page 74

CFMOTO
05-74

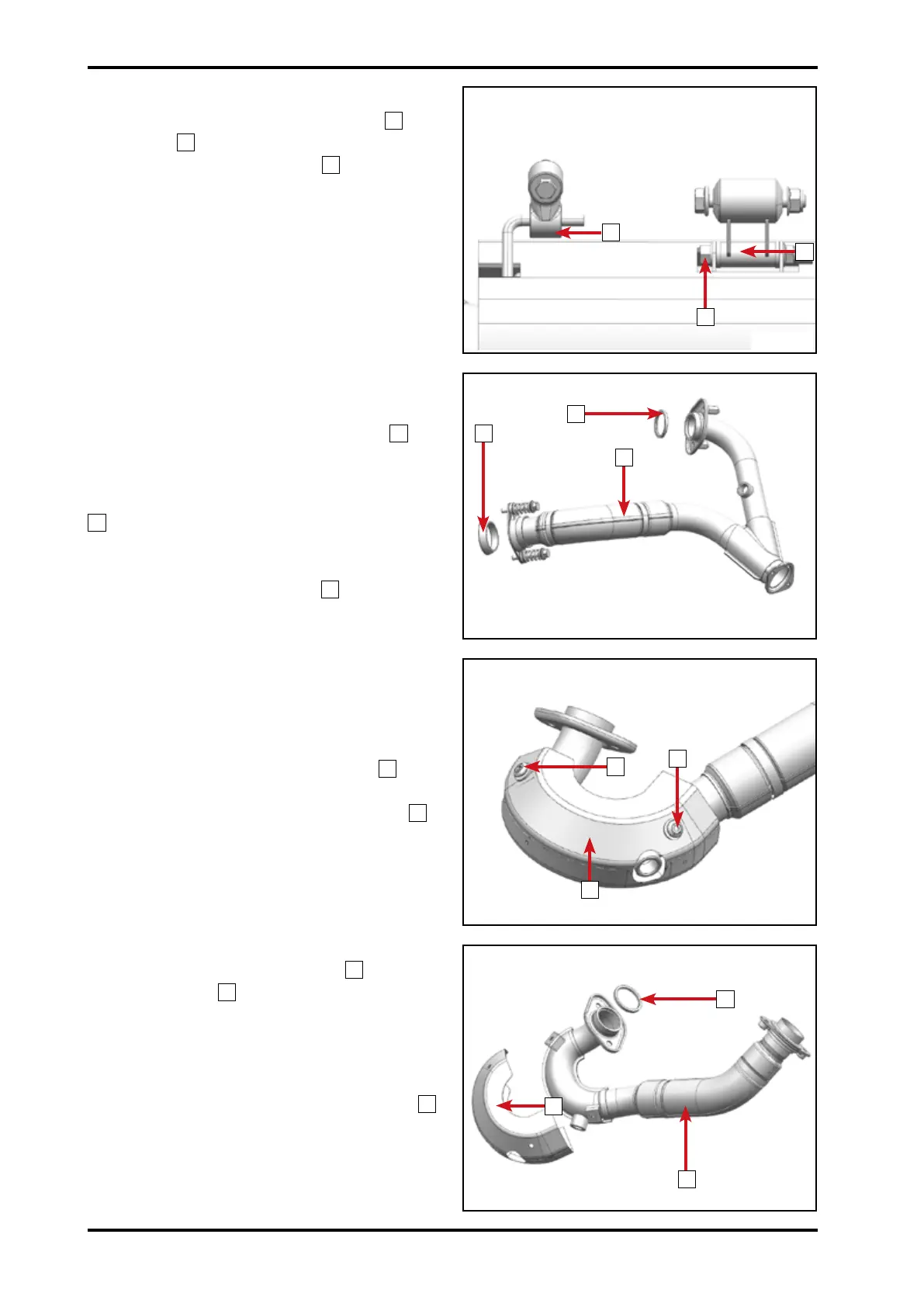

Install mu󰀪er hanging bracket assy
1
.
Install bolt
2
.
Install engine upper bracket
3
.
Mu󰀪er Rear Pipe Assy
Inspect muffler rear pipe assy
1
for
damage. Replace if it does.
If the junction area of muffler occurs to
smoke leaking, inspect graphite seal ring
2
. Replace if damaged.
If the junction area between first cylinder
and muffler occurs to smoke leaking,
inspect graphite seal ring
2
. Replace if
damaged.
Mu󰀪er Front Pipe Assy
Disassembly
Remove M6 inner hex screws
1
with
washers.
Remove front pipe heat insulator parts
2
.
Inspection
Inspect mu󰀪er front pipe assy
1
and heat
insulator parts
2
for damage. Replace if
necessary.
If the junction area between second
cylinder and muffler occurs to smoke
leaking, inspect graphite seal ring
3
.
Replace if damaged.
2
3
1
1
3
2
2
1
1
3
2
1
053001
053002
053003
053004
