CF MOTO ZForce 950EX - Page 73

05-73
05 Engine

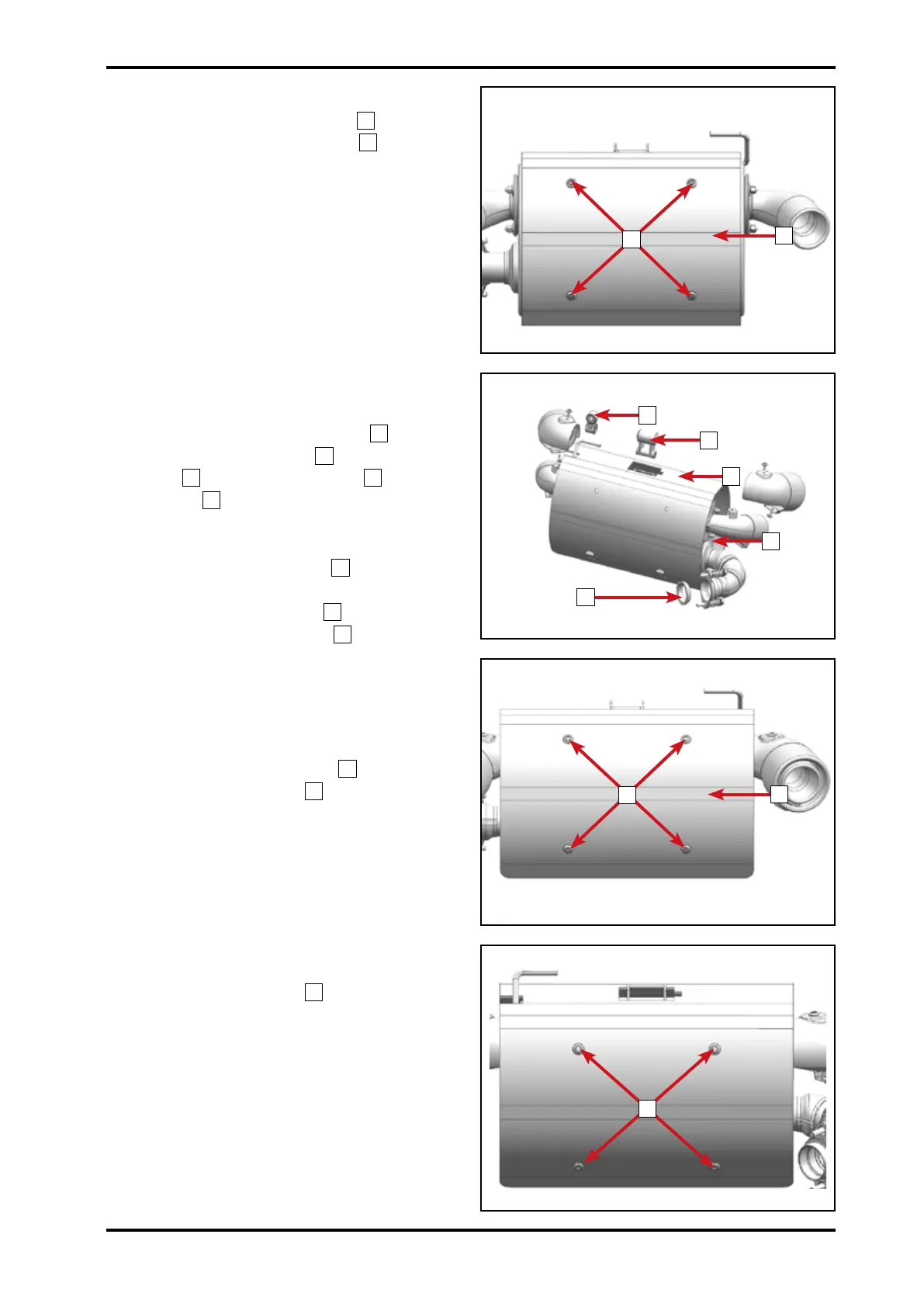

Remove M6 inner hex screws
1
.
Remove mu󰀪er heat insulator
2
.
Inspection
Inspect engine upper bracket
1
, muffler
hanging bracket assy
2
, muffler heat
insulator
3
, mu󰀪er body assy
4
, graphite
seal ring
5
for damage. Replace if
necessary.
If exhaust air leaks in mu󰀪er junction area,
inspect graphite seal ring
5
for damage.
Replace if necessary.
Engine upper bracket
1
and muffler
hanging bracket assy
2
should be
inspected periodically. Replace if damaged.
Installation
Install mu󰀪er heat insulator
1
.
Install inner hex screws
2
.
Install inner hex screws
1
.
1
2
1
2
1
1
3
2
4
5
052901
052902
052903
052904
