5.3.3 Air Exhaust System
5.3.3.1 Mu󰀪er Assy Removal

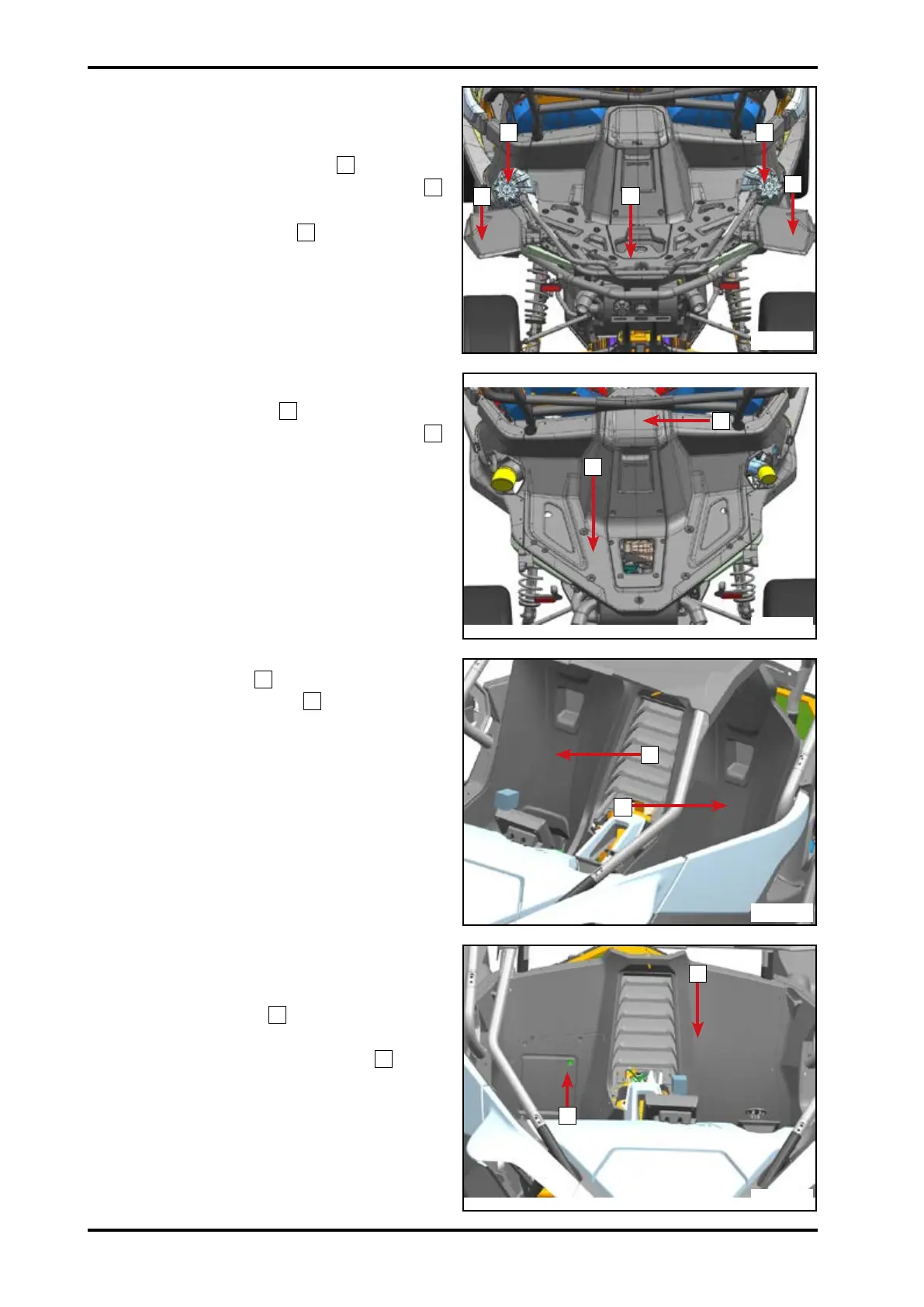

Remove rear LH&RH fenders
1
.
Remove CVT LH&RH outer deco plates
2
.
Remove rear rack assy
3
(refer to Body
Covering Parts chapter).
Remove air lter cover
1
and three bolts.
Remove cargo box base plate assy
2
(refer to Body Covering Parts chapter).
Remove driver seat
1
.
Remove passenger seat
2
(refer to Seat
section).
Remove ECU cover
1
and then remove
the ECU, diagnosis connector.
Remove seat rear back plate assy
2
(refer
to Seat section).
1
2
1
2
3
2
1
1
2
1
2
052601
052602
052603
052604
