07 Powertrain
07-7

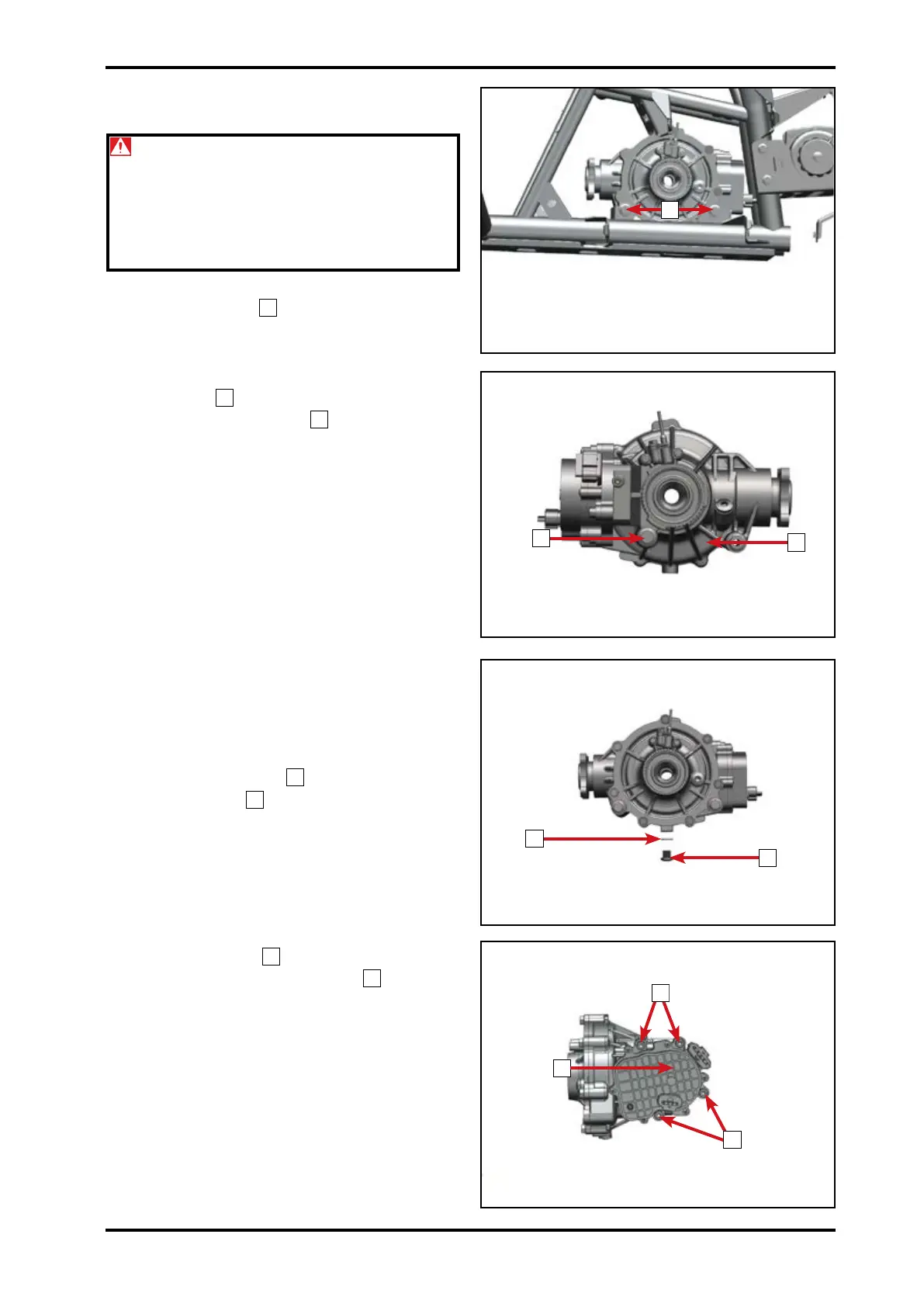

7.4.3 Front Gear Case
Removal
DANGER: Before inspection, make
sure the operation is made on flat
ground and the vehicle is jacked up.
Do not put any limbs under the vehicle,
in case of injury caused by sudden fall
during inspection.
Unplug connectors.
Remove two bolts
1
.
Remove bolt
2
.
Remove front gear case
3
.
7.4.4 Front Gear Case Disassembly
7.4.4.1 Front Gear Case Motor
Removal
Place a pan under front gear case.
Remove oil drain bolt
1
.
Remove washer
2
.
Drain the oil.
Remove four bolts
3
.
Remove front gear case motor
4
.
1
3
4
3
3
1
2
2
070701
070702
070703
070704
