CF MOTO ZForce 950EX - Second Cylinder Head; Second Cylinder Head Cover; Second Cylinder Tensioner

CFMOTO
05-84

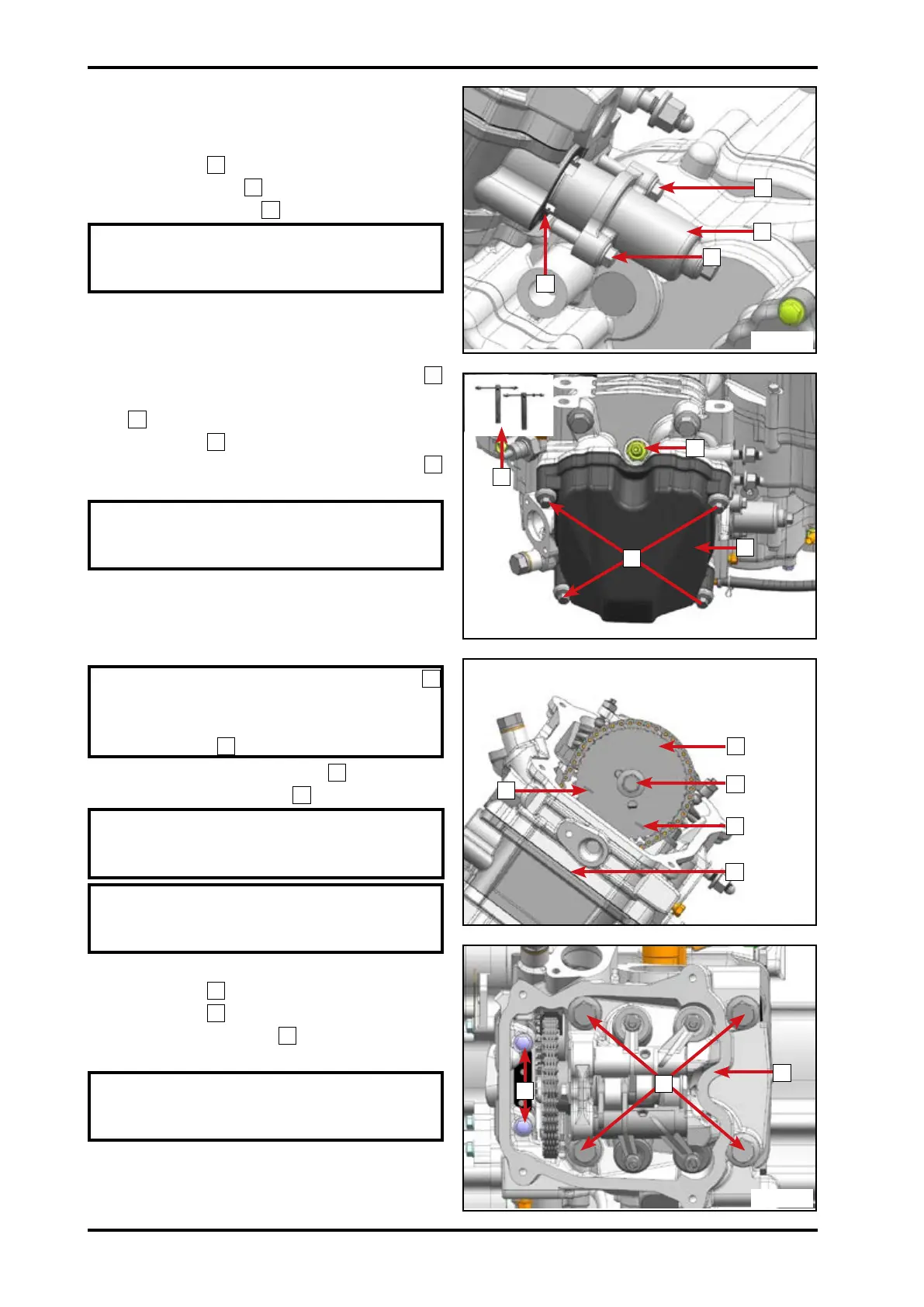

5.4.10 Second Cylinder Tensioner
Remove bolts
1
.
Remove tensioner
2
.
Remove seal gasket
3
.
NOTE: Make marks on tensioner during
removal, to prevent getting mixed up
during installation.
5.4.11 Second Cylinder Head Cover
Use special tool: Spark Plug Wrench
1
(0800-022800-922-001) to remove spark
plug
2
.
Remove bolts
3
.
Remove second cylinder head cover
4
and seal ring.
NOTE: Make marks on cylinder head
covers during removal, to prevent
getting mixed up during installation.
5.4.12 Second Cylinder Head
NOTE: The timing sprocket scale
1
should be at the position as picture
shows, paralleling with cylinder head
lower surface
2
.
Remove timing sprocket bolt
3
.
Remove timing sprocket
4
.
NOTE: Hook timing chain after
removing sprocket, in case the chain
falls inside the engine.
NOTE: Make marks on timing sprockets
during removal, to prevent getting
mixed up during installation.
Remove bolts
1
.
Remove bolts
2
.
Remove cylinder head
3
.
NOTE: Make marks on second cylinder
head during removal, to prevent getting
mixed up during installation.
1
2
3
4
2
1
3
4
1
1
2
3
3
1
2
1
054001
054002
054003
054004
