5.3.1.2 Air Filter Parts Inspection

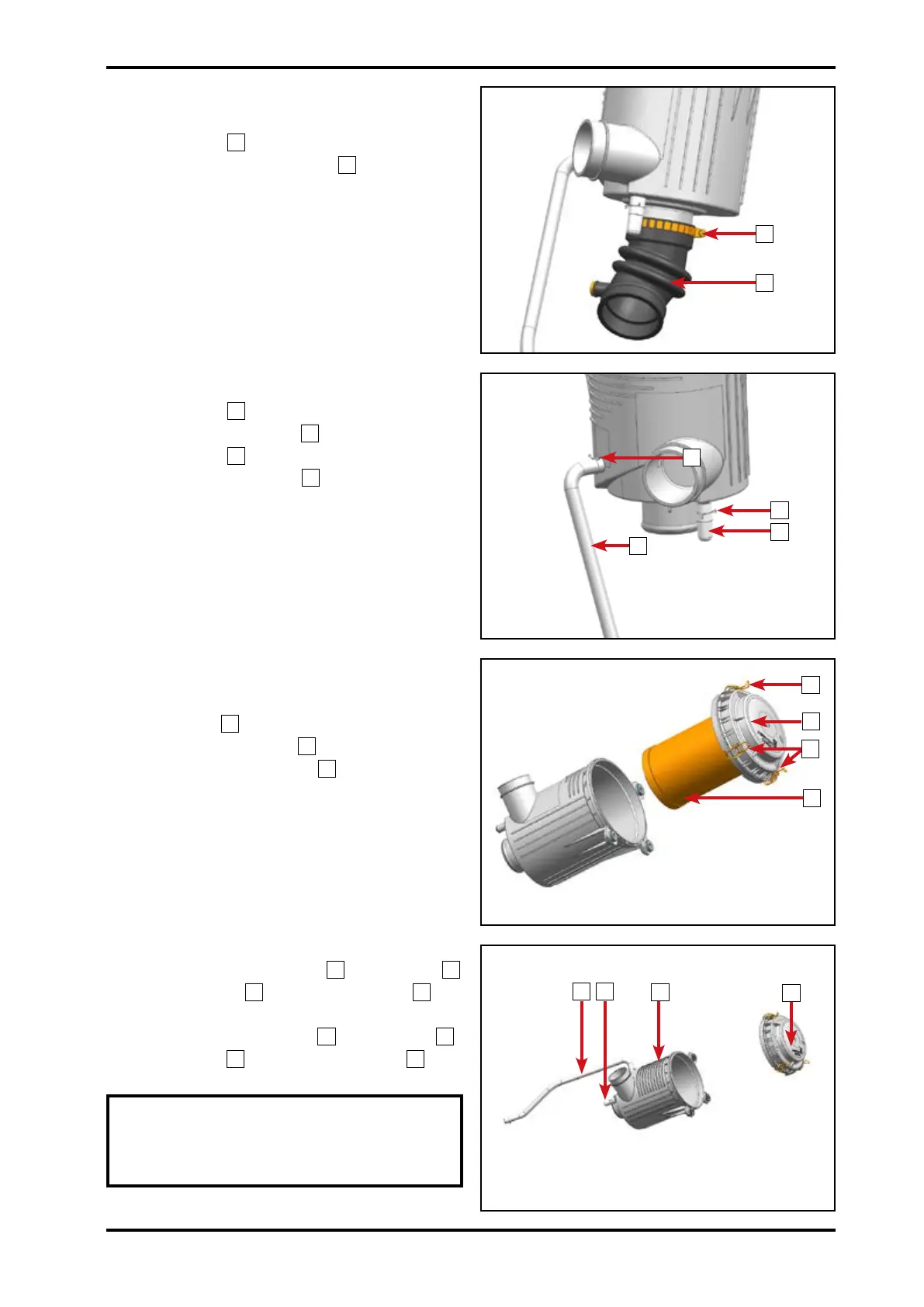

Disassembly
Loosen clamp
1
.
Remove air lter outlet pipe
2
.
Loosen clamp
1
.
Remove breather hose
2
.
Loosen clamp
3
.
Remove indicator hose
4
.
Loosen clasp
1
.
Remove air lter cover
2
.
Remove air lter element
3
.
Inspection
Inspect air filter cover
1
, housing
2
, breather hose
3
and oil reserver
4
for
damage. Replace as required.
Clean air filter cover
1
, housing
2
,
breather hose
3
and indicator hose
4
.
NOTE: If the vehicle is used in severe
conditions, increase the frequency of
inspection, cleaning and maintenance
(Refer to Maintenance Chart).
2
1
1
3
2
4
1
2
3
1
2
3 4
1
051901
051902
051903
051904
