12 Electrical System
12-29

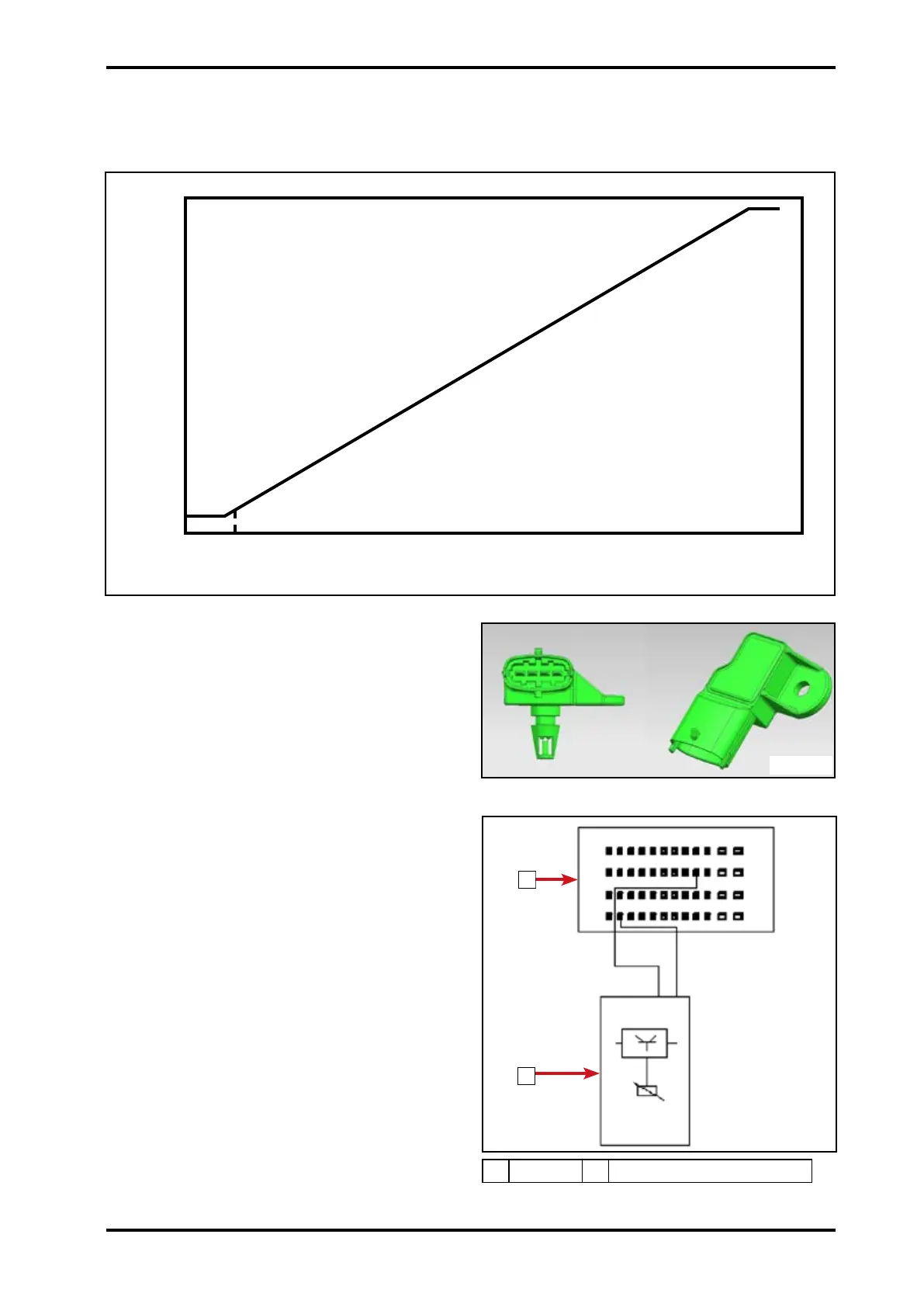

The relationship between output voltage and pressure.
Pressure range: 10kPa~115kPa
Absolute Pressure Pabs in KPA
Output Voltage Uout in V
12.14.4 Air Intake Temp. Sensor
This sensor is an NTC thermo resistance.
The resistance is getting higher with
coolant temperature, but not in linear
relationship.
Air pressure sensor and temp. sensor are
sealed together.
Air intake temp. sensor
Circuit connecting with ECU.
65
77
89
101
76
88
100
112
1 2
P
122203
122202
122201
0 10
115
5
4.65
0.4
0
1
2
1 ECU 2 Air intake temp. sensor
