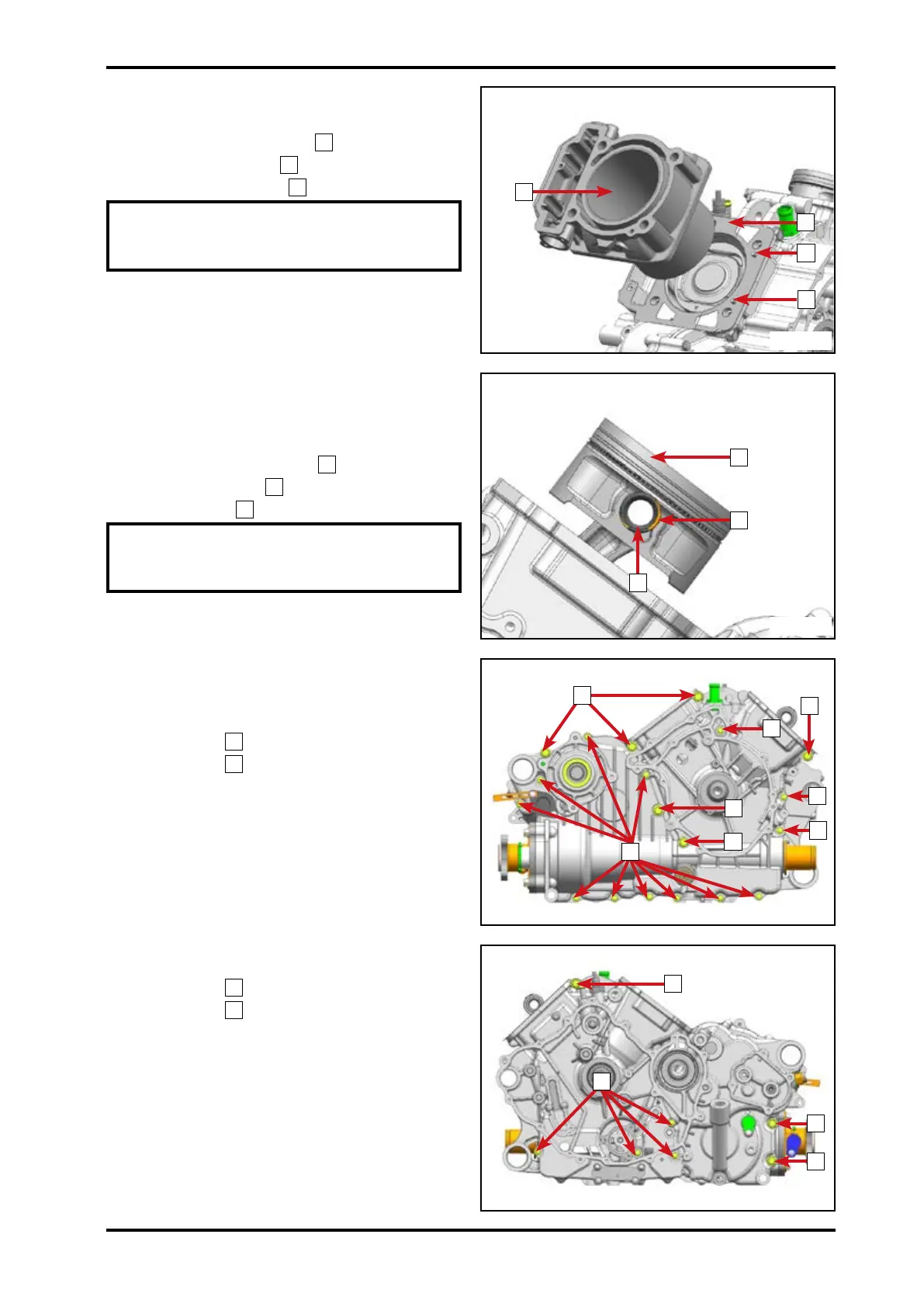

5.4.27 Second Cylinder and Piston
Remove second cylinder
1
.
Remove seal gasket
2
.
Remove roller needle
3
.
NOTE: Make marks on cylinders during
removal, to prevent getting mixed up
during installation.
Rotate crankshaft until second cylinder
piston exposes.
Remove from either side:
Remove piston pin circlip
1
.
Remove piston pin
2
.
Remove piston
3
.
NOTE: Make marks on pistons during
removal, to prevent getting mixed up
during installation.
5.4.28 Crankcase Disassembly
Remove bolts
1
.
Remove bolts
2
.
Remove bolts
1
.
Remove bolts
2
.
3
1
2
1
2
2
2
1
1
2
1
2
2
2
1
054701
054702
054703
054704
