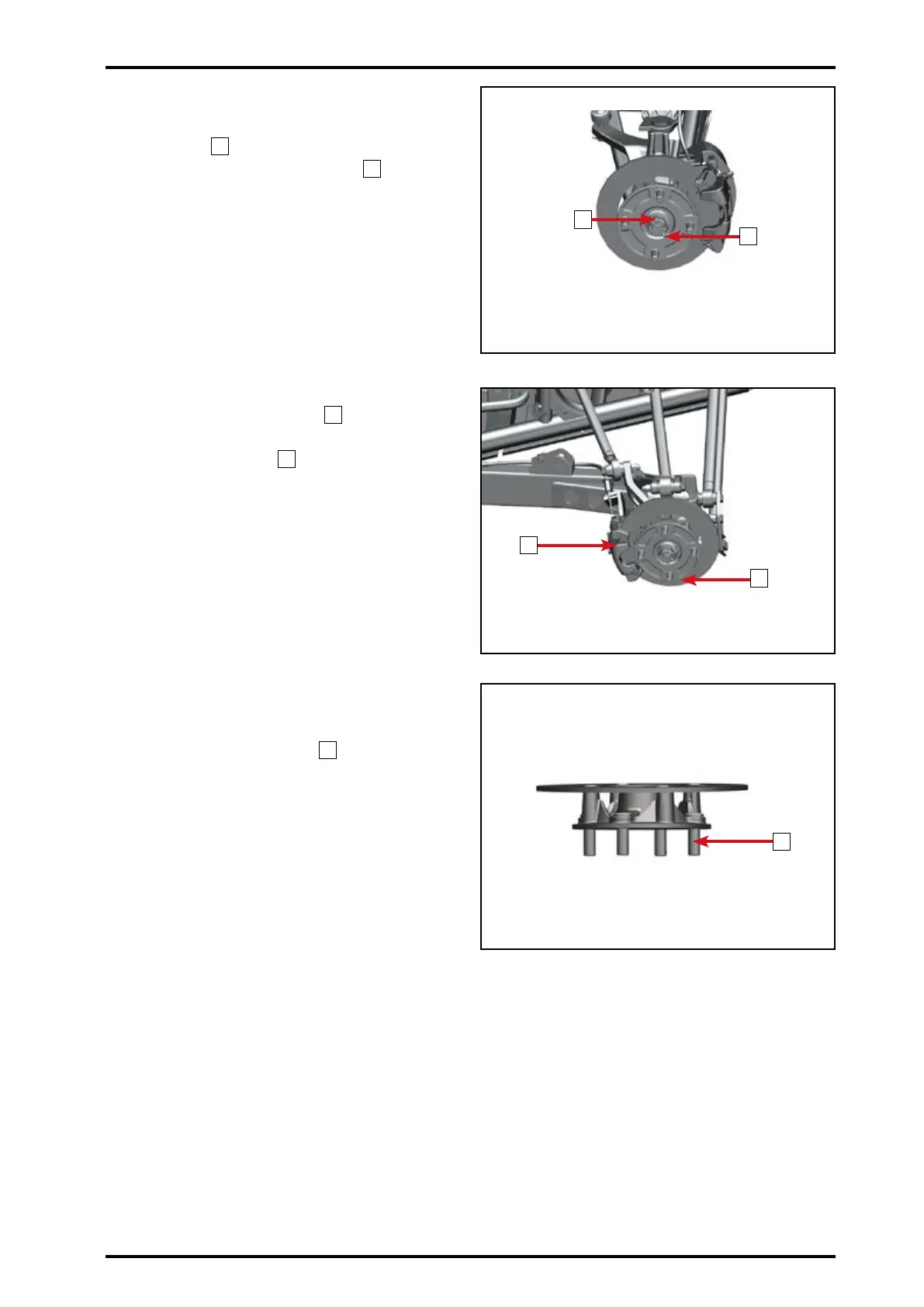

9.2 Rim Bracket
Removal
Remove pin
1
.
Remove hex slotted ange nut
2
.
Remove brake caliper
3
(refer to 08
chapter).
Remove rim bracket
4
.
Inspection
Inspect rim bracket bolts
5
for looseness.
Replace rim bracket if loose.
Installation
Reverse the removal procedures for
installation.
Hex slotted flange nut tighten torque:
220N•m~250N•m
1
2
3
4
090501
090502
090503
