CF MOTO ZForce 950EX - Countershaft Assy, Shift Fork and Shift Drum; Crankshaft Connecting Rod Assy and Main Shaft

CFMOTO
05-92

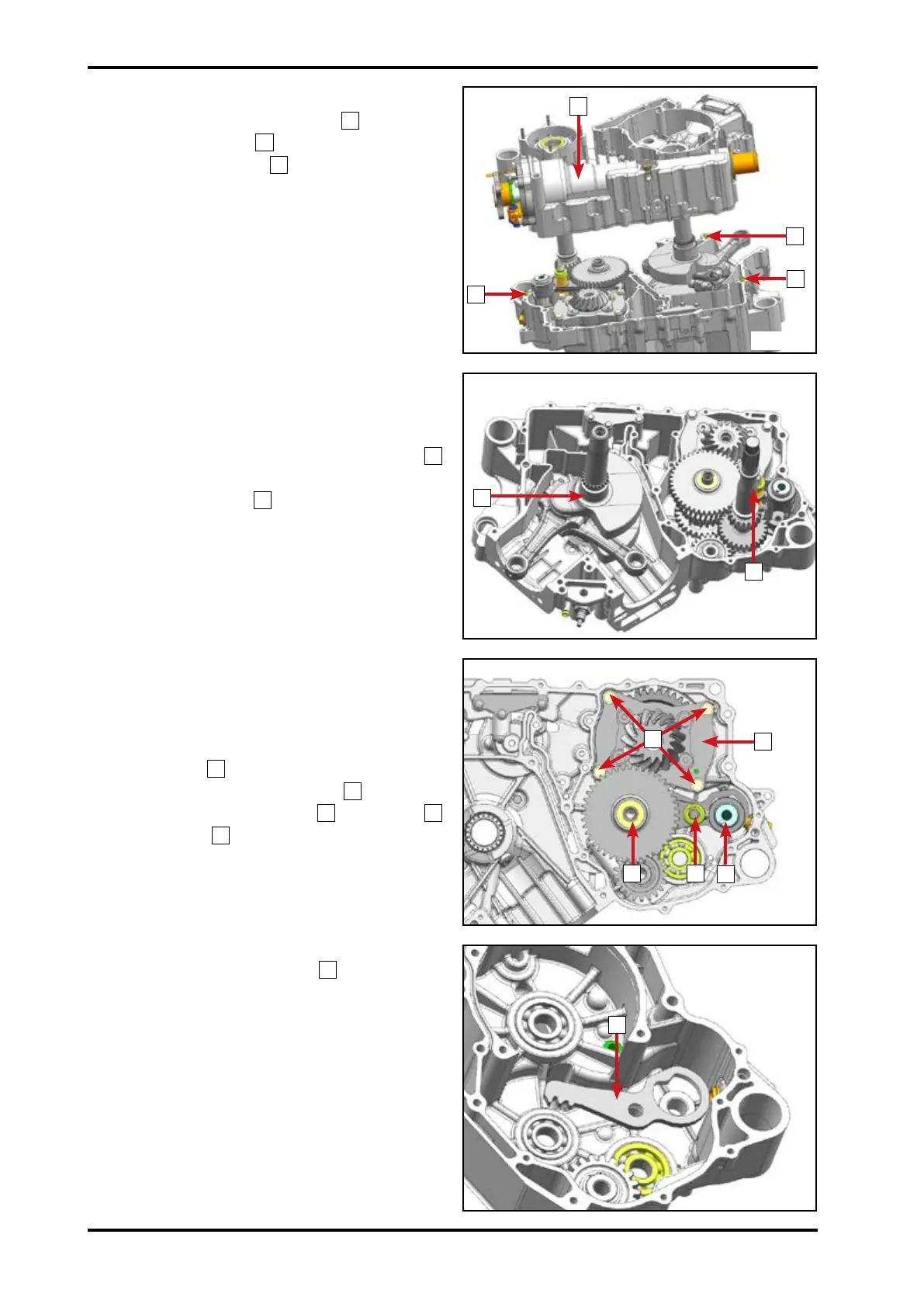

Remove PTO crankcase body
1
.
Remove dowel pins
2
.
Remove roller needle
3
.
5.4.29 Crankshaft Connecting Rod Assy
and Main Shaft
Remove crankshaft connecting rod assy
1
.
Remove main shaft
2
.
5.4.30 Countershaft Assy, Shift Fork
and Shift Drum
Remove bolts
1
.
Remove drive bevel gear assy
2
.
Remove countershaft assy
3
, shift fork
4
and shift drum
5
together (they can not be
removed separately).
Remove parking swing arm
1
.
1
2
1 2 3
1
3 4
5
2
1
1
2
3
2
054801
054802
054803
054804
