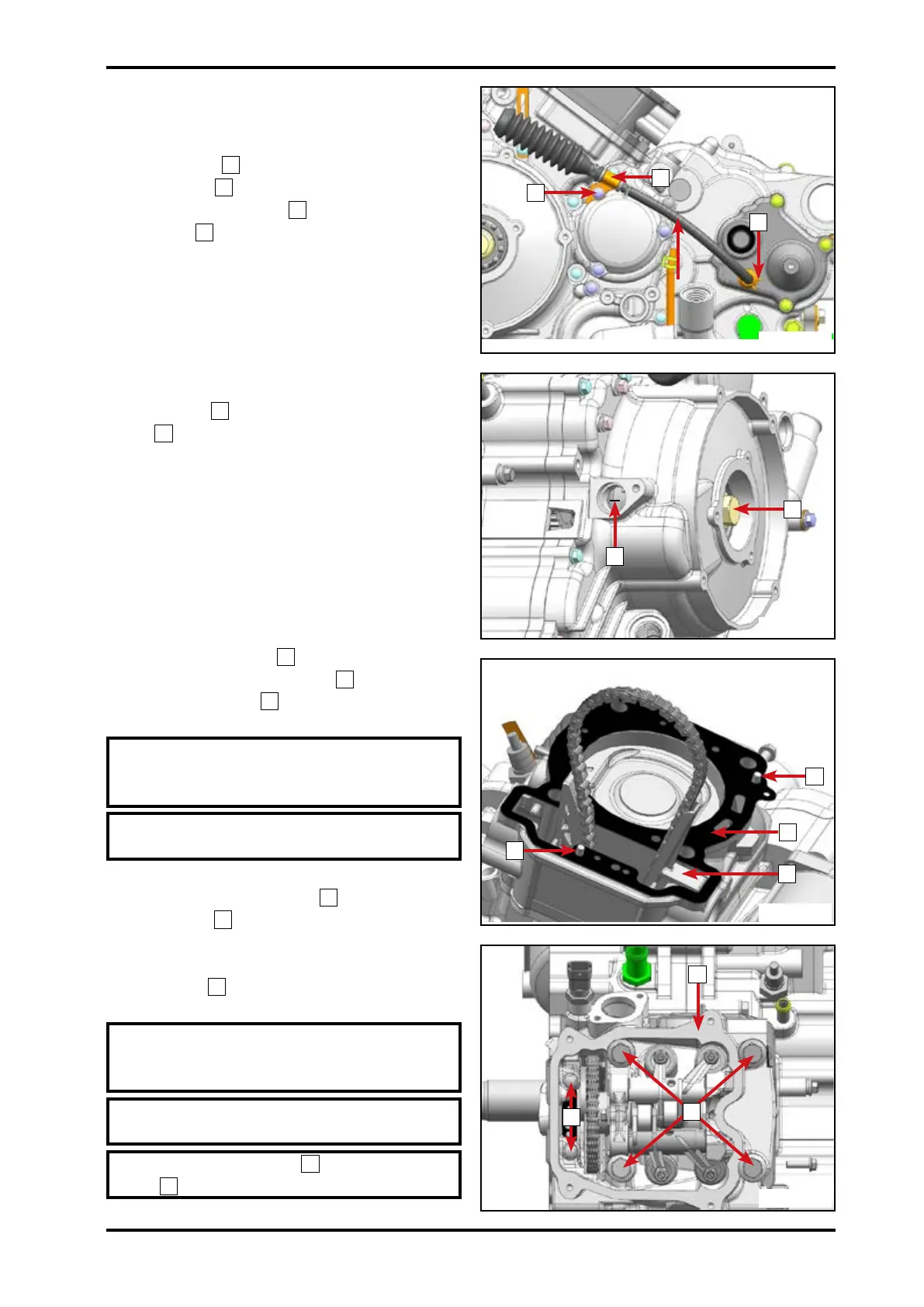

CF MOTO ZForce 950EX - Air Bag; First Cylinder Head Assy; First Cylinder TDC Adjustment

05-151
05 Engine
3
4
2
5.6.19 Air Bag
Install air bag
1
.
Install clamp
2
.
Install air bag bracket
3
.
Install bolt
4
.
5.6.20 First Cylinder TDC Adjustment
Rotate bolt
1
with a socket until the "I"
mark
2
is at the center of the hole. Such
position is the the TDC for rst cylinder.
5.6.21 First Cylinder Head Assy
Install roller needles
1
.
Install cylinder head gasket
2
.
Install chain guide
3
.
NOTE: Install chain guides according
to the made marks, to prevent incorrect
installation.
NOTE: Hook the timing chain during
installation, in case it falls into engine.
Install cylinder head assy
1
.
Install bolts
2
. (Pre-tighten to 20N•m in
criss-cross pattern, and then tighten to
60N•m.)
Install bolts
3
. M6×80 bolt tighten torque:
10N•m.
NOTE: Install cylinder head assy
according to the made marks, to
prevent incorrect installation.
NOTE: Hook the timing chain during
installation, in case it falls into engine.
NOTE: Install bolts
2
first and then
bolts
1
.
1
2
1
1
3
2
2
3
1
0510701
0510702
0510703
0510704
