CF MOTO ZForce 950EX - 5.5 Engine Parts Inspection

05-93
05 Engine
5.5 Engine Parts Inspection

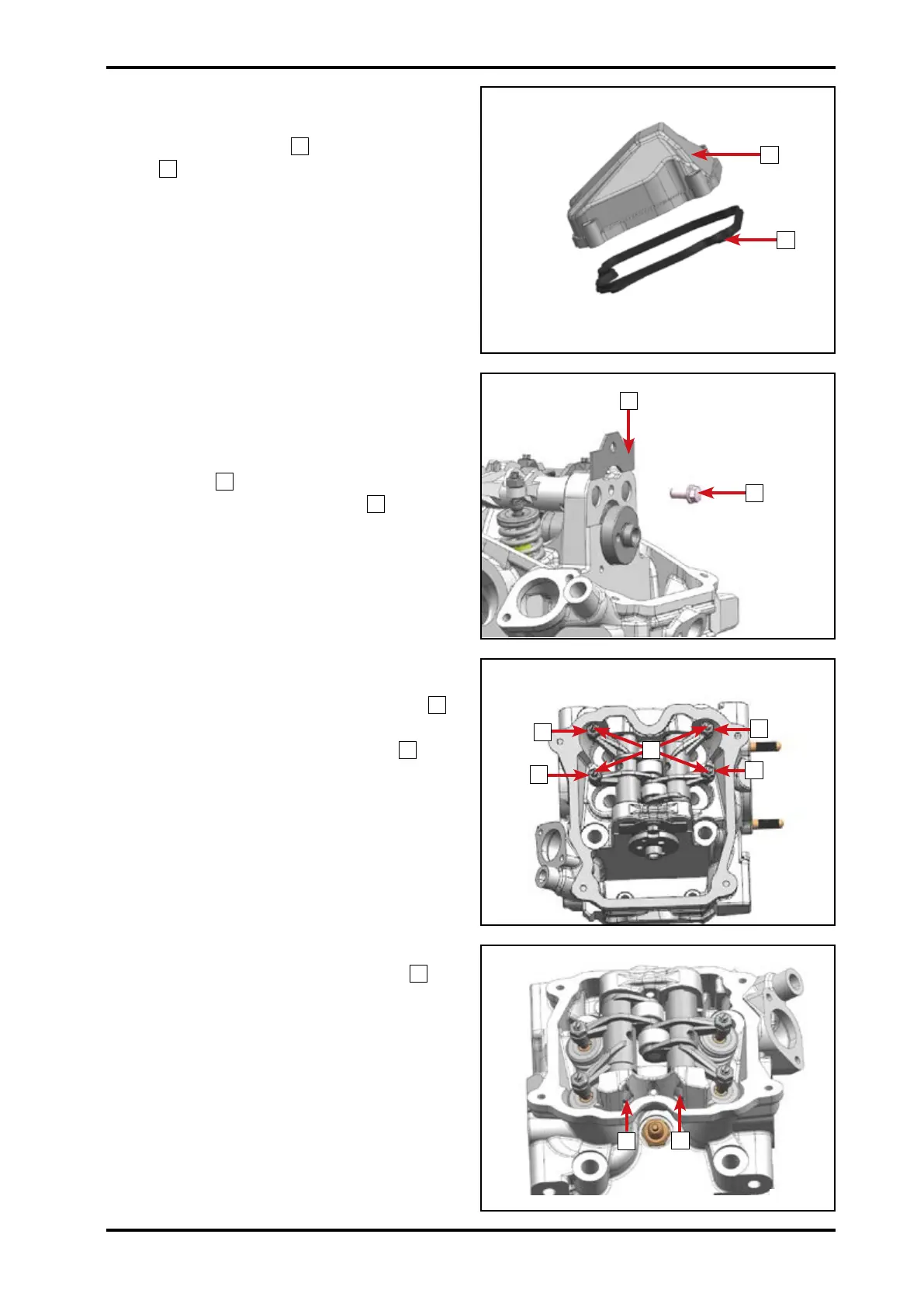

5.5.1 Cylinder Head Cover
Inspect the seal ring
2
on cylinder head
cover
1
for cracks or hardening. Replace
if necessary.
5.5.2 Cylinder Head
Disassembly
Remove bolt
1
.
Remove camshaft holding strip
2
.
Loosen value clearance adjusting nuts
1
.
Use special tool: Valve Clearance Adjusting
Wrench to loosen adjusting screws
2
.
Push out rocker arms from positions
1
.
1
2
1
2
1
1
1
2
2
2
2
054901
054902
054903
054904
