CF MOTO ZForce 950EX - 4.3 CVT Parts Inspection

04 CVT System
04-35
1
1
1
1
2

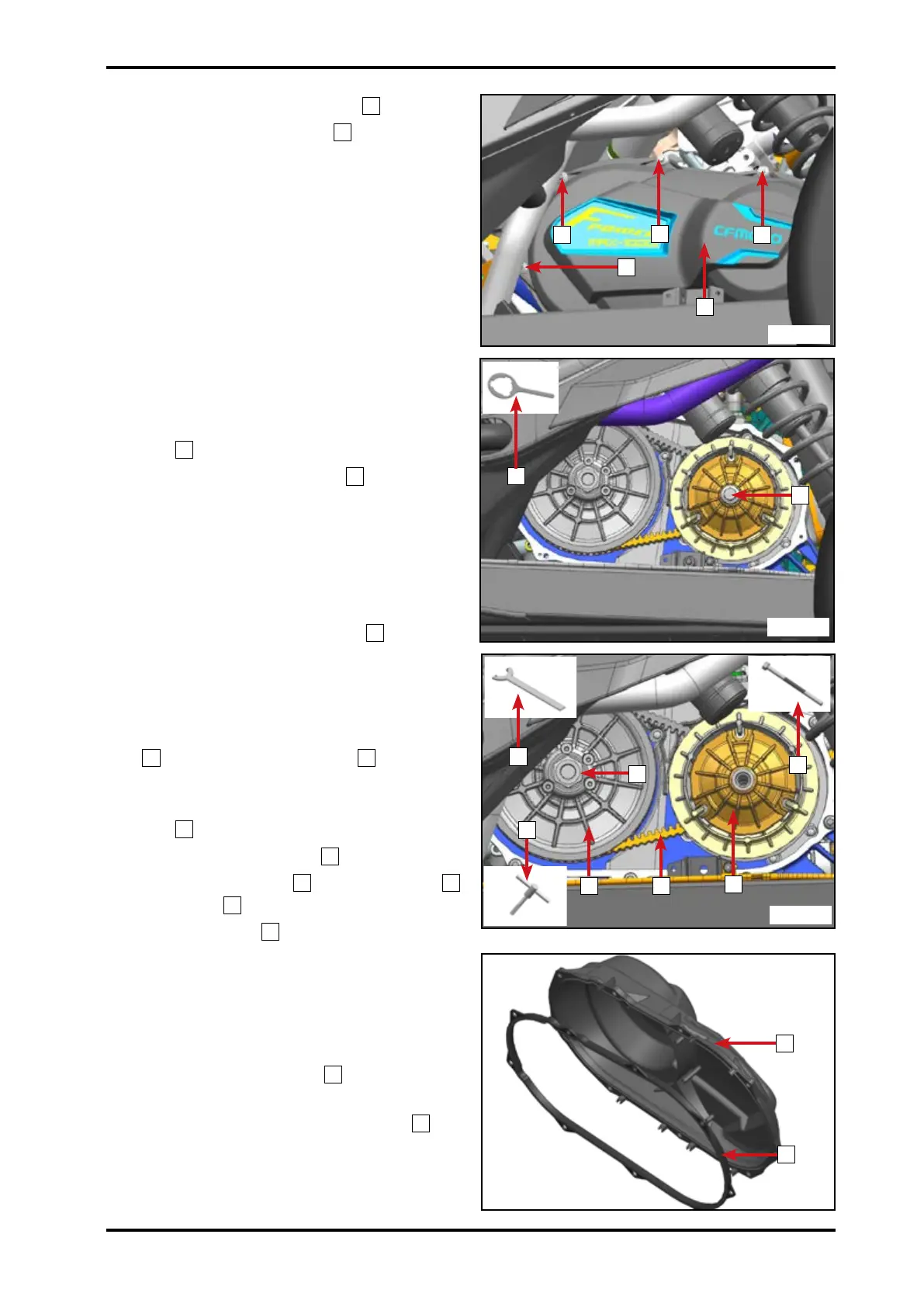

Remove CVT case cover bolts
1
.
Remove CVT case cover
2
by pulling it
away from the pulleys, then rotating it 90
degrees clockwise. Manuever the cover
upward in the engine compartment to gain
clearance for the lower part of the cover to
clear the suspension arm, and remove it.
Remove the CVT seal ring from the case
cover.
4.2.3 CVT Drive Pulley, Driven Pulley
and Drive Belt Removal
Use special tool: Drive Pulley Holding
Wrench
1
to hold drive pulley.
Remove drive pulley bolt
2
(left-hand
thread).
Separate driven pulley fixed sheave and
sliding sheave with special tool
6
.
NOTE: Only one hole contains threads.
Use special tool: Drive Pulley Holding
Wrench to secure the drive pulley.
Use special tool: Drive Pulley removal
tool
1
to remove drive pulley
7
(left-hand
thread).
Use special tool: Driven Pulley Holding
Wrench
2
to hold driven pulley.
Remove driven pulley nut
3
.
Remove drive pulley
7
, driven pulley
5
and drive belt
4
together.
Remove drive belt
4
.
4.3 CVT Parts Inspection
4.3.1 CVT Case Cover Inspection
Inspect CVT case cover
1
for cracks or
damage. Replace if any defect is found.
Inspect CVT case cover seal ring
2
for
aging, damage or other defects. Replace if
any defect is found.
1
2
7
45
2
3
040503
040504
1
6
1
2
040502
040501
