05-95
05 Engine
1
A
B
D
C

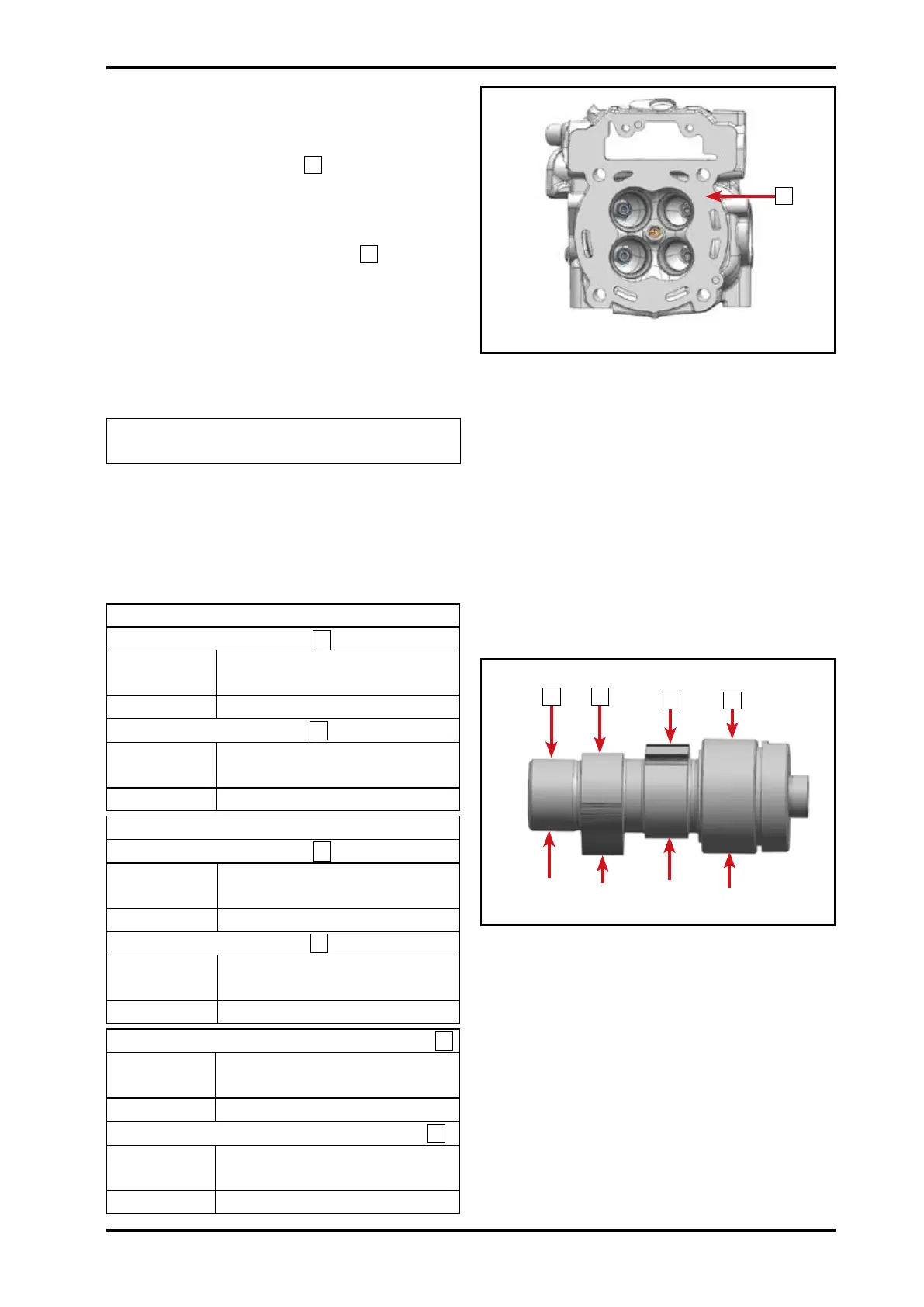

5.5.3 Parts Inspection
Cylinder Head Inspection
-Clean the carbon deposit in combustor
and on junction surface
1
.
-Inspect cylinder head valve seat for
cracks. Replace if necessary.
-Use knife-edge ruler and filler gauge
to inspect the junction area
1
between
cylinder head and body for deformation
and damage. Measure at different
positions. Replace with a new cylinder
head if beyond service limit. Replace with
a new cylinder head if damaged.
-Clean grease oil trail on cylinder head.
Cylinder head deformation limit value:
0.03mm
Tool: knife-edge ruler, ller gauge
Camshaft Inspection
Inspect camshaft every cam and journal for
scratches, wear, cracks or other damage.
Measure camshaft journal diameter and
cam height with micrometer.
First cylinder camshaft
Cam(EX)
A
New
32.945 mm~33.065 mm
(1.2970 in~1.3018 in)
Service limit 32.845 mm(1.2931 in)
Cam(IN)
B
New
32.931 mm~33.051 mm
(1.2965 in~1.3012 in)
Service limit 32.831 mm(1.2926 in)
Second cylinder camshaft
Cam(EX)
A
New
32.853 mm~32.973 mm
(1.2934 in~1.2981 in)
Service limit 32.753 mm(1.2895 in)
Cam(IN)
B
New
33.019 mm~33.139 mm
(1.300 in~1.3047 in)
Service limit 32.919 mm(1.2960 in)
Camshaft journal (timing chain side)C
New
34.959 mm~34.975 mm
(1.3763 in~1.3770 in)
Service limit 34.950 mm(1.3760 in)
Camshaft journal (spark plug side)
D
New
21.959 mm~21.980 mm
(0.8645 in~0.8654 in)
Service limit 21.950 mm(0.8642 in)
055101
055102
