CFMOTO
05-96
A
1
2
A
B

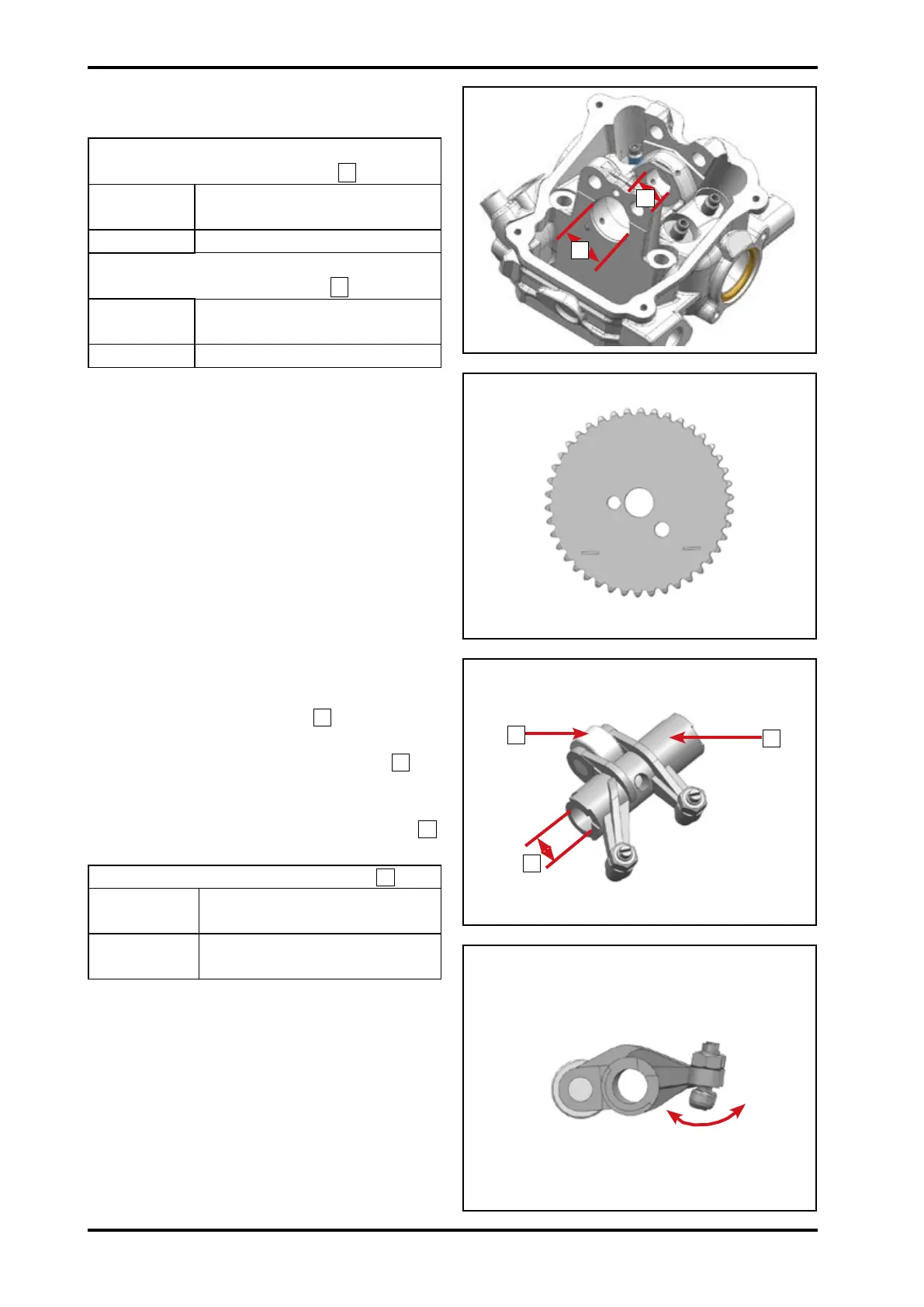

●Measure the clearance between camshaft
and cylinder head on both sides.
Camshaft bearing hole diameter
(timing chain side)
A
New
35.007 mm~35.025 mm
(1.3782 in~1.3789 in)
Service limit 35.040 mm(1.3795 in)
Camshaft bearing hole diameter
(spark plug side)
B
New
22.012 mm~22.025 mm
(0.8666 in~0.8671 in)
Service limit 22.040 mm(0.8677 in)
Timing Sprocket Inspection
Inspect camshaft timing sprocket for
wear or damage. Replace the whole set
(camshaft timing sprocket and timing
chain) if worn or damaged.
Rocker Arm Inspection
●Inspect every rocker arm
1
for cracks or
scratches. Replace if it does.
●Inspect rocker arm idler wheel
2
for
smooth rotation, damage or large radial
run-out. Replace if necessary.
●Measure rocker arm inner diameter
A
.
Replace if beyond service limit.
Rocker arm inner diameter
A
New
12.000mm~12.018mm
(0.4724in~0.4731in)
Service limit
12.030mm
(0.4736in)
●Inspect adjusting screw for free
movement, cracks and large run-out.
Inspect washers, seal rings and dowel pins
for damage. Replace if damaged.
055201
055202
055203
055204
