05-97
05 Engine

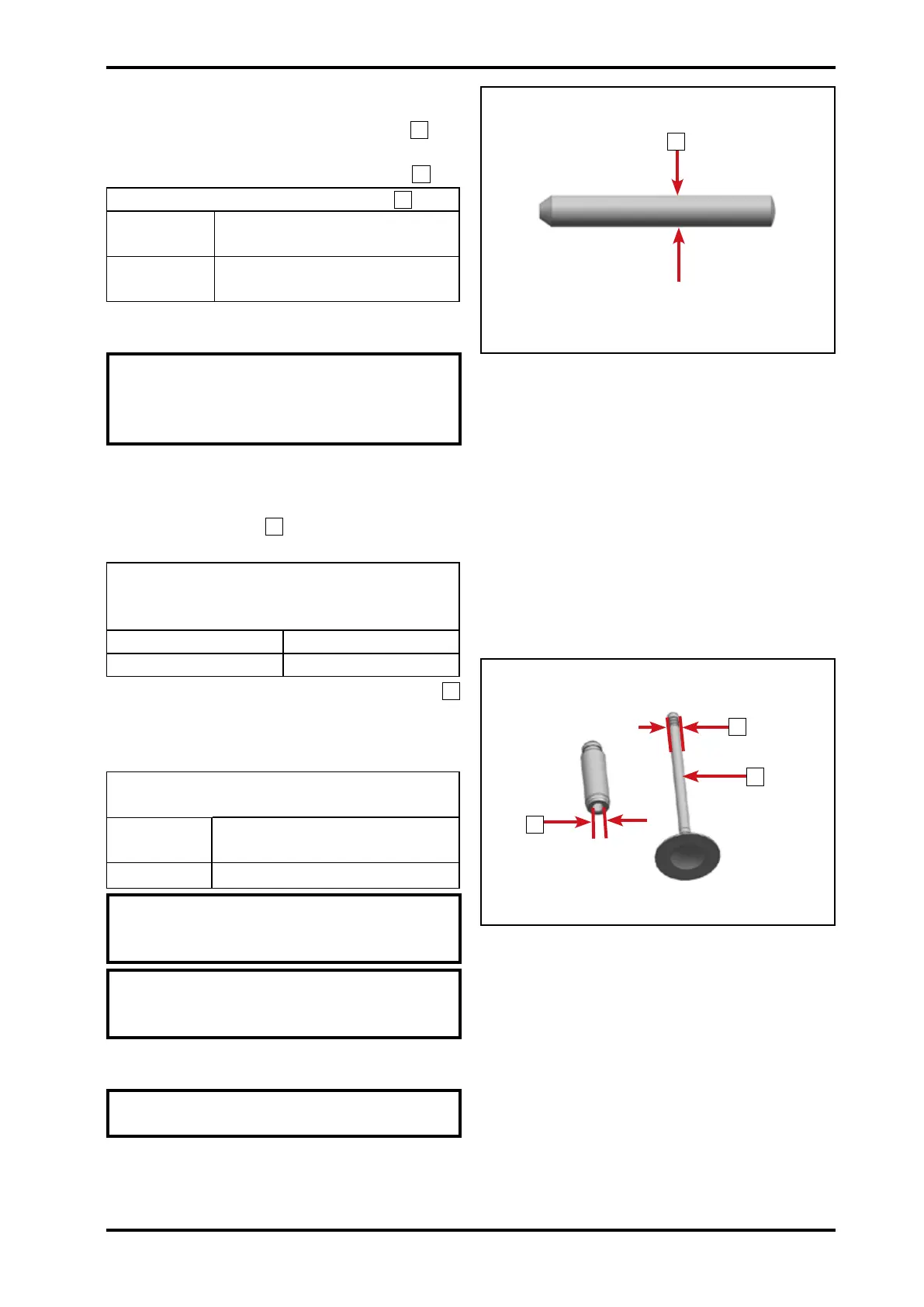

Rocker Arm Shaft
●Inspect every rocker arm shaft
1
for
wear and scratches. Replace if it does.
●Measure rocker arm shaft diameter
1
.
Rocker arm shaft diameter
1
New
11.973 mm~11.984 mm
(0.4714 in~0.4718 in)
Service limit
11.960 mm
(0.4709 in)
Valve Stem Seal Ring
NOTE: Replace with new valve stem
seal rings during installation. The
removed seal rings are sorted for
waste disposal.
Valve Inspection
Inspect valve stem
1
for abnormal wear or
bending. Replace if it does.
Valve stem roundness (diameter
di󰀨erence)
(intake valve and exhaust valve)
New 0.01 mm(0.0004 in)
Service limit 0.05 mm(0.0020 in)
Inspect valve guide inner diameter
3
. Adjust the valve guide with reamer if
beyond standard.
Valve guide inner diameter
(intake valve and exhaust valve)
New
5.000 mm~5.012 mm
(0.1969 in~0.1973 in)
Service limit 5.045 mm(0.1986 in)
NOTE: Pay attention the rotating
direction of the reamer. Clean the metal
debris on reamer and valve guide.
NOTE: Valve guides can not be
removed. Replace the whole cylinder
head if damaged.
Valve Stem
NOTE: Clean the carbon deposit before
measurement.
Replace the valve stems if they are beyond
service limit, severely worn or they have
scratches.
1
1
3
2
055301
055302
