CF MOTO ZForce 950EX - Page 71

05-71
05 Engine

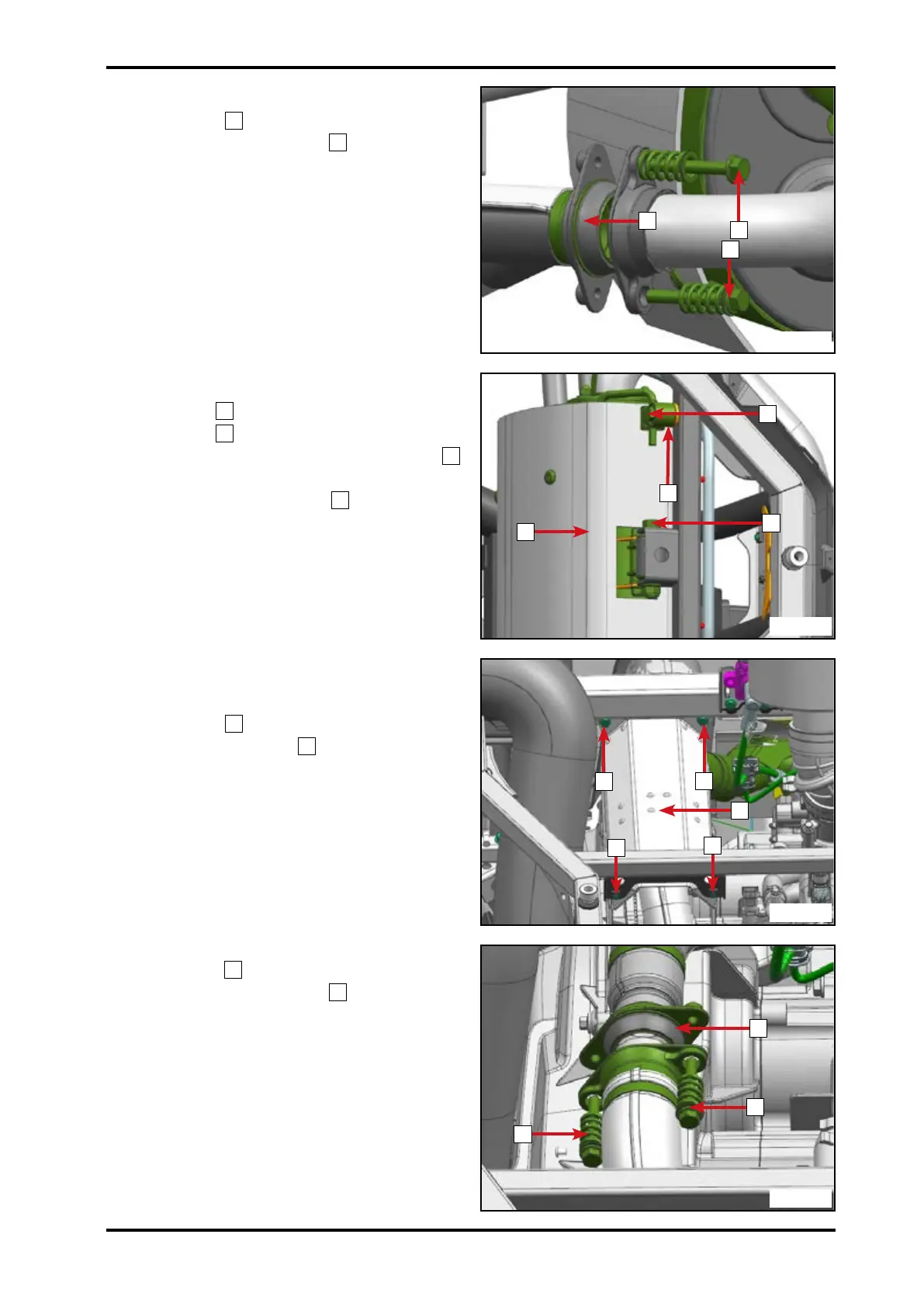

Remove bolts
1
and springs.
Remove graphite seal ring
2
.
Remove bolt
1
.
Remove bolt
2
.
Remove engine upper mounting bracket
3
.
Remove mu󰀪er body assy
4
.
Remove bolts
1
.
Remove heat insulator
2
.
Remove bolts
1
with springs and washers.
Remove graphite seal ring
2
.
1
3
4
2
2
1
1
1
1
1
2
1
2
1
1
052701
052702
052703
052704
