CF MOTO ZForce 950EX - 9.5 Rear Suspension

09 Suspension System
09-9
7
9
8
1
1
1
1
2
3
4

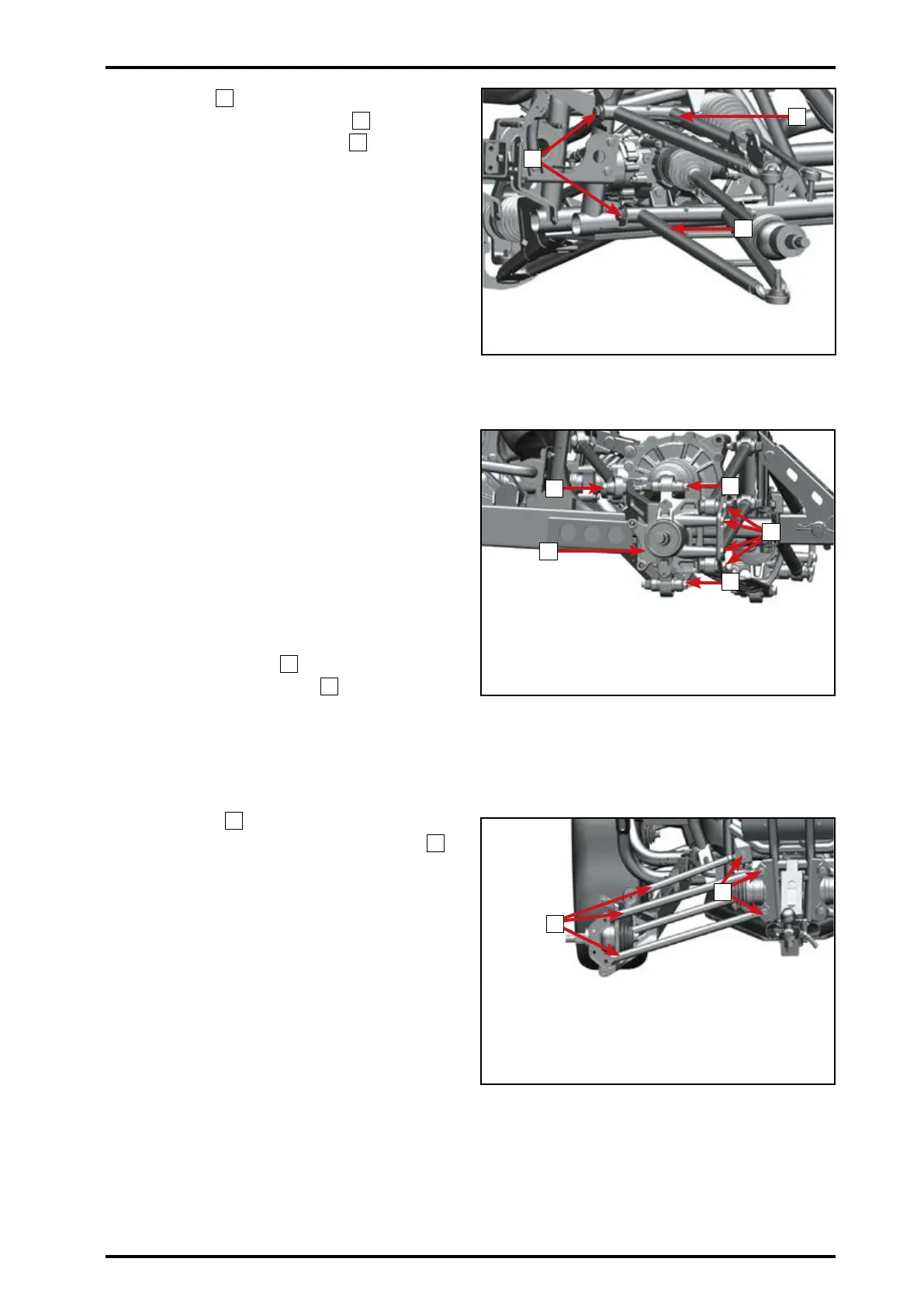

Remove bolt
7
.
Remove LH upper swing arm
8
.
Remove LH lower swing arm
9
.
Front RH swing arm follows the same
removal procedures.
Inspection
Inspect swing arms for cracks or damage.
Replace if necessary.
Inspect swing arm for smooth movement.
Add grease through grease nozzle if
blocking or stuck.
Inspect steering knuckle for dirt or rust.
Replace if necessary.
Installation
Reverse the removal procedures for
installation.
9.5 Rear Suspension
9.5.1 Rear Swing Arm Rod
Removal
Remove seven bolts
1
.
Remove steering knuckle
2
.
Remove bolts
3
.
Remove three LH rear swing arm rods
4
.
Installation
Reverse the removal procedures for
installation.
090901
090902
090903
