11.1 Cooling System

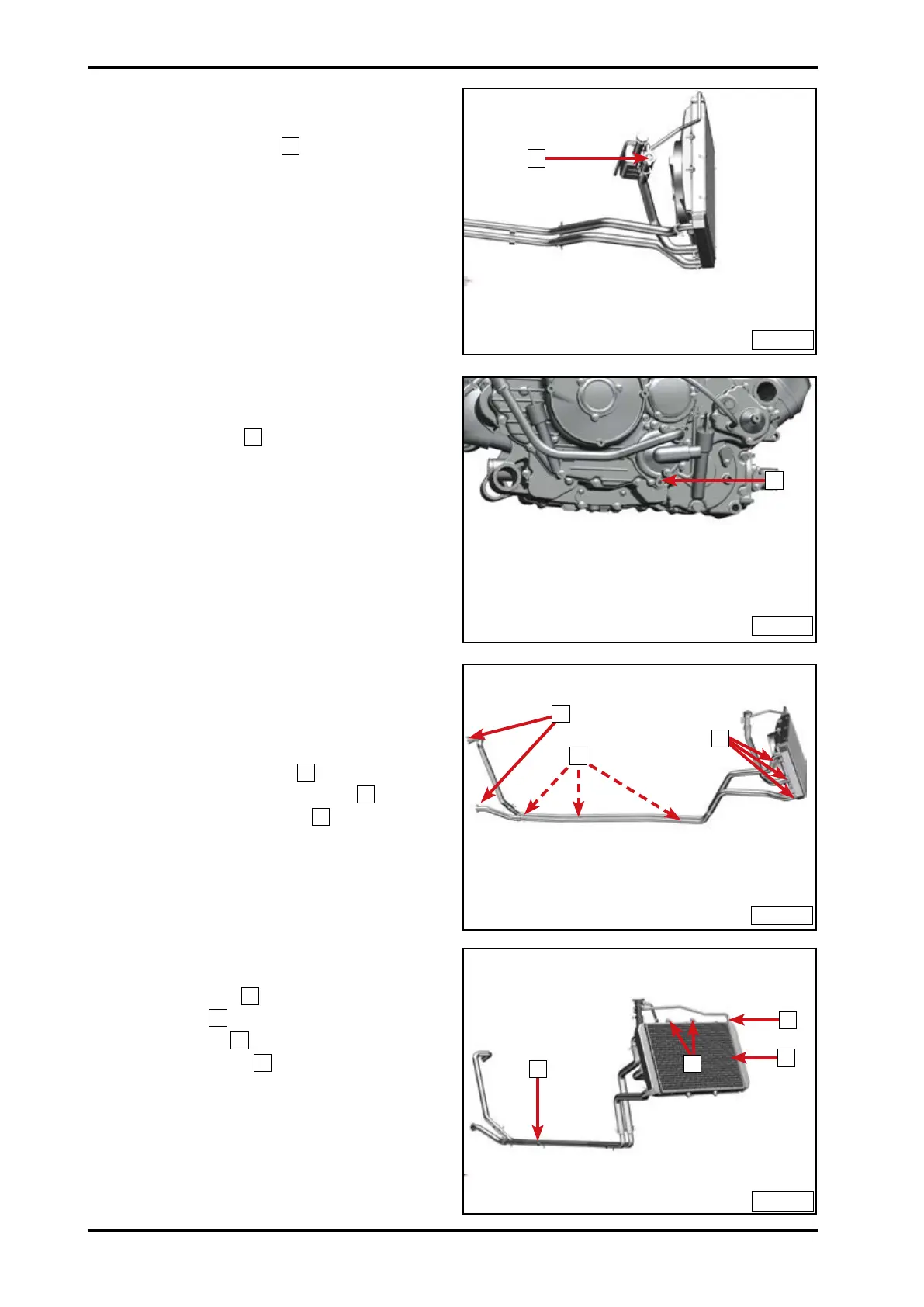

Removal
Remove radiator cover
1
.
Place a container under the engine water
pump.
Remove drain bolt
2
.
Drain coolant.
Remove coolant reservoir (refer to chapter
06).
Remove radiator water inlet pipe (refer to
chapter 06).
Loosen two steel clamps
3
.
Loosen three water pipe clamps
4
.
Remove water pipe clasps
5
.
Remove two bolts
6
.
Loosen clamp
7
.
Remove radiator
8
.
Remove water pipe
9
.
Installation
Reverse the removal procedures for
installation.
1
2
4
3
5
6
8
7
9
110201
110202
110203
110204
