Regulator
121301

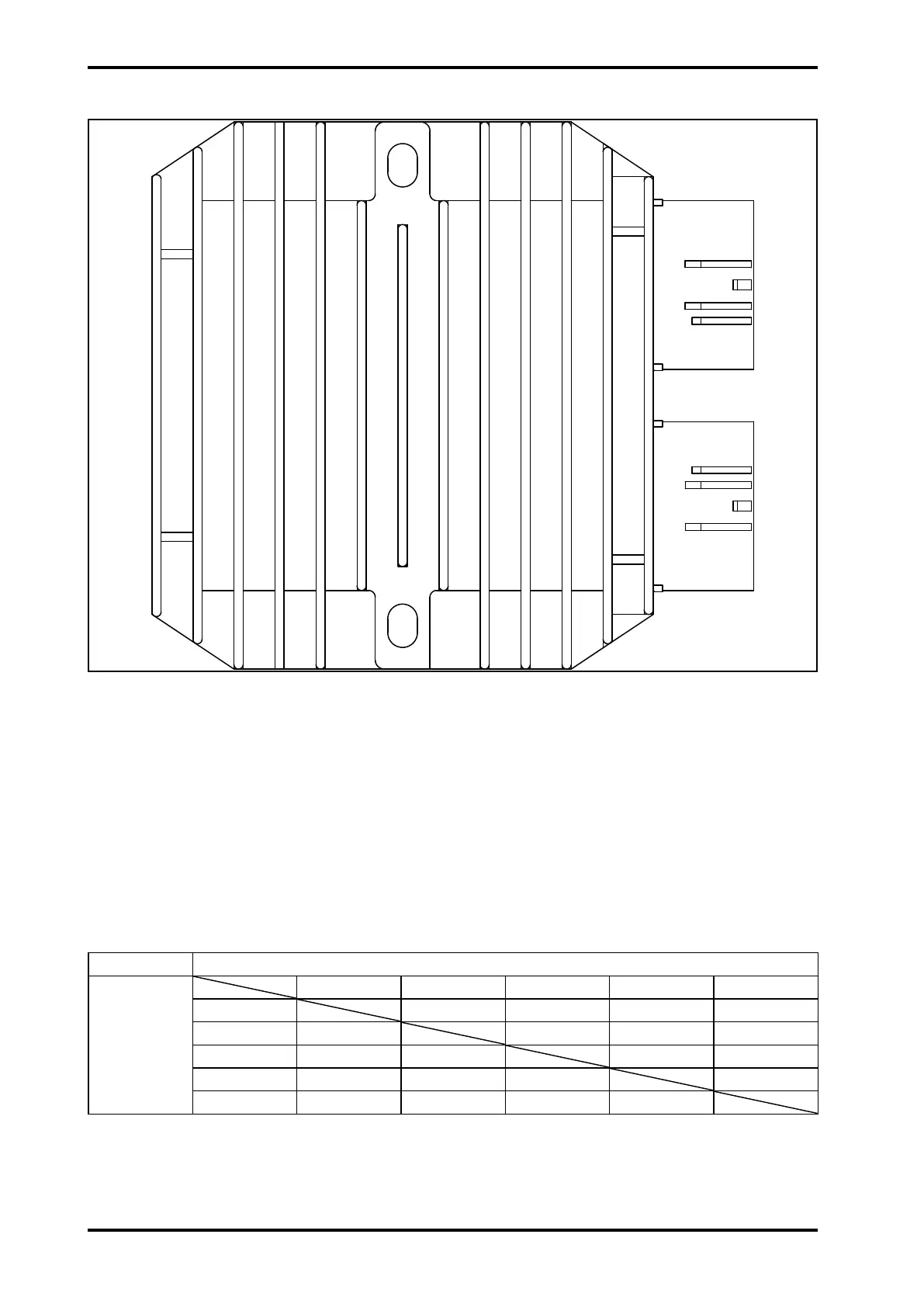

Use multimeter to measure resistance between connectors. Replace the regulator If any
data is beyond standard.
After engine works and battery is full charged, if the voltage between positive and
negative terminal exceeds 15V or is lower 12V, replace with a new regulator.
(+)
(-)
1 2 3 (-) (+)
1 ∞ ∞ 100~800 ∞
2 ∞ ∞ 100~800 ∞
3 ∞ ∞ 100~800 ∞
(-) ∞ ∞ ∞ ∞
(+) 100~800 100~800 100~800 100~800
