Displayed here are all the expansion modules connected to the unit.
If in the unit there is more than one module of the same type connected, a number will appear
in the icon to differentiate them
; the module with the lowest number has the lowest serial
number.
Use the
and buttons to move to the different options and select the Datalogger
module icon
.
Press the button
to open the main conguration screen of the Datalogger module, Figure
209.

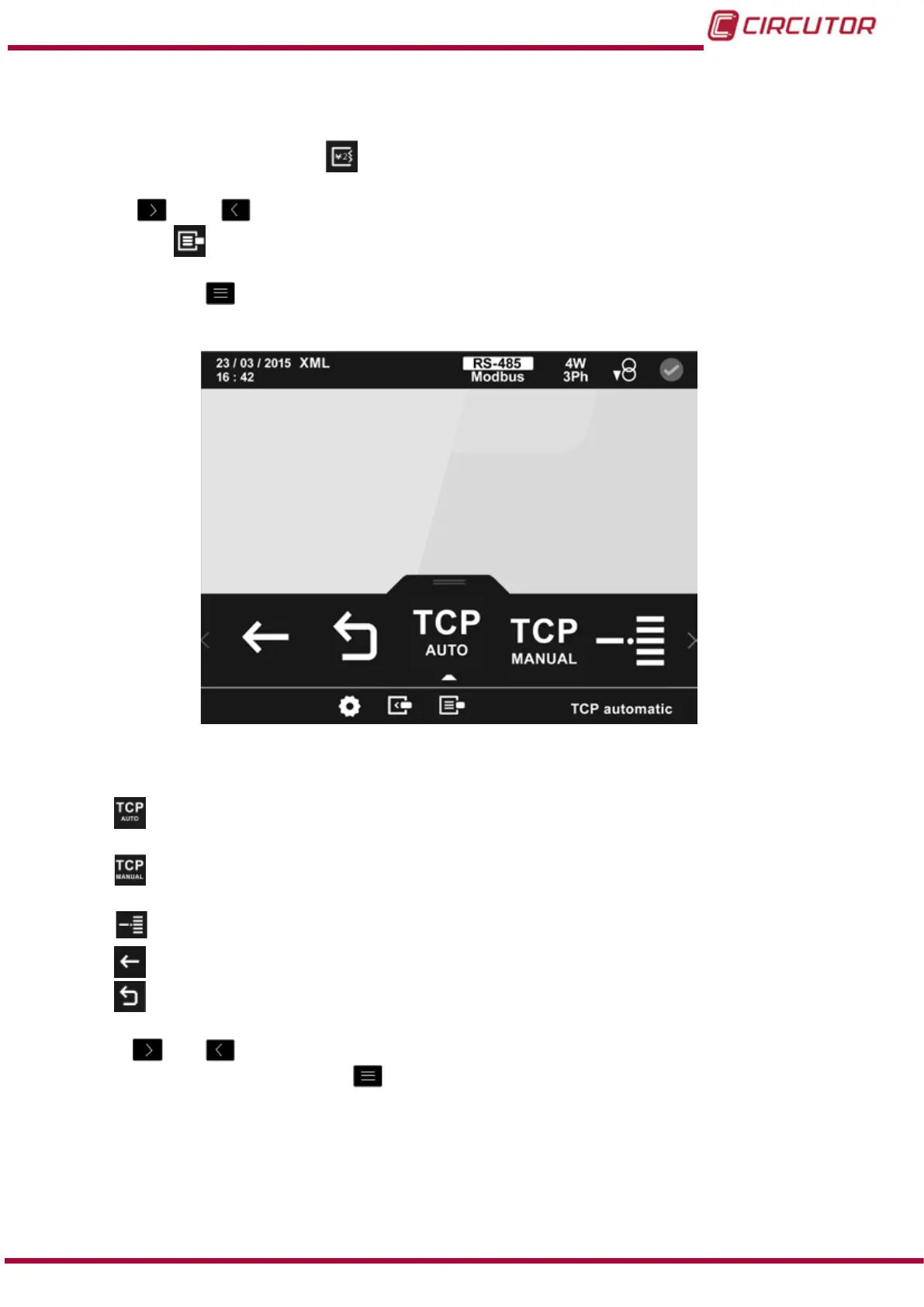

Figure 209: Main conguration screen of the Datalogger module.
The following options appear in the lower area:
Conguration of DHCP activation/deactivation.
( “7.4.4.1.- Conguration of DHCP activation/deactivation”)
Conguration of the TCP parameters.
(“7.9.4.2.- Conguration of the TCP parameters manually.”)
Port conguration (“7.9.4.3.- Port conguration”)
Back, returns to the home screen of the expansion modules menu, Figure 208.
Main Menu, returns to the main menu, Figure 25.
Use the
and buttons to select the different options.
To conrm the selection, press the
button.
If no button is pressed for 5 minutes, the display screen changes automatically to the default
screen, which displays the voltage measurement of 4 parameters.
299
Instruction Manual
CVM-B100 - CVM-B150
