7.7.2.3 Receive | Reed-Solomon Page

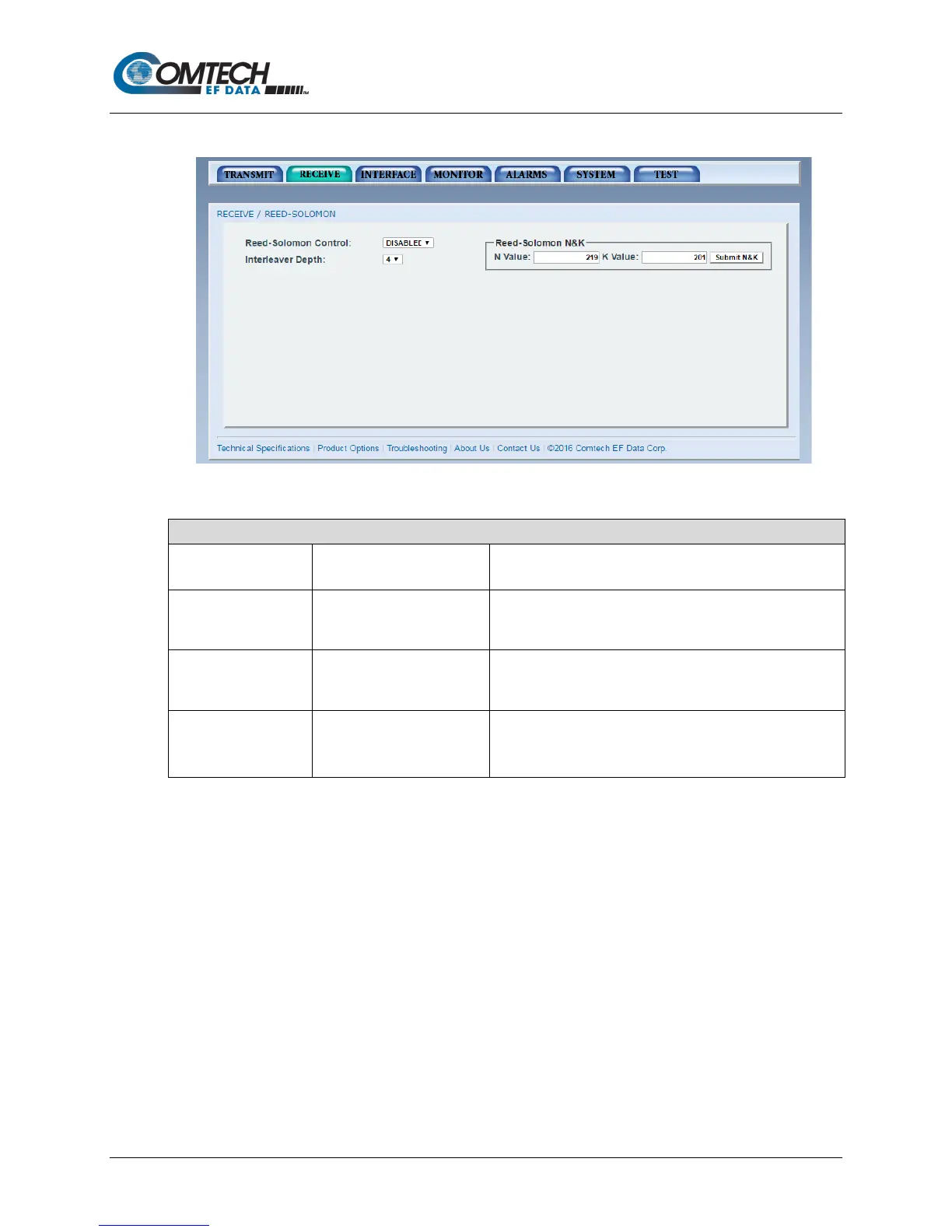

Figure 7-20. Receive | Reed-Solomon Page Example
Receive | Reed-Solomon Page
Reed-Solomon
Control
• DISABLED
• ENABLED
Enable or Disable the Reed-Solomon Encoder.
Reed-Solomon N
Value
•
Refer to AN177 for
custom Reed Solomon
N/K combinations
Shows the N value in use of the Reed-Solomon codes.
Reed-Solomon K
Value
•
Refer to AN177 for
custom Reed Solomon
N/K combinations
Shows the K value in use of the Reed-Solomon codes.
Interleaver Depth
•
4
• 8
• 12
Use to select the Reed-Solomon interleaver depth.
In Closed Net Mode, select a depth of 4 or 8.
